Описание

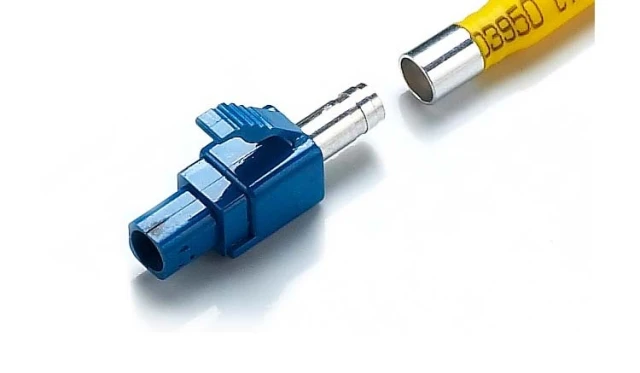

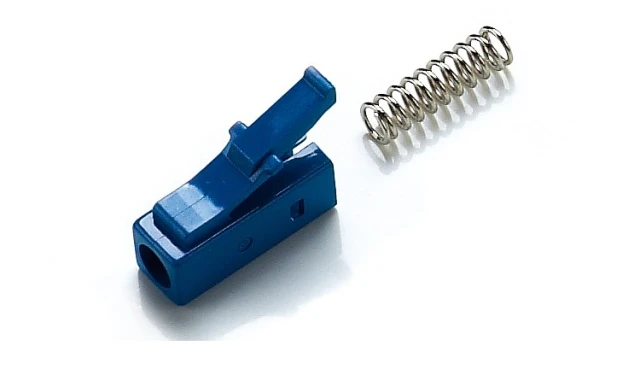

The LC fiber optic connector has a durable plastic body with a square front profile. This fiber optic connector has a PC finish ferrule for minimum back reflection and can be ultra polished on a singlemode patchcord.
The LC fiber optic connector features a push-pull connection design for quick patching of fiber optic cables into rack or wall mounts. This compact fiber optic connector is ideal for telecommunications closets, premise wiring and other high density applications. These fiber optic LC Connectors can be clipped together to create duplex connections. LC stands for Subscriber Connector.
Функции
– Low insertion loss
– Corrosion resistant body
– Precision mechanical dimension
– Meets Telecordia-GR-326-CORE specifications Ultra low back reflection
– One Piece with pre-domed ceramic ferrule is designed for easy assembly
– Fixed key and activity key can be selected
– For 2.0mm cable
– ROHS compliant
Приложения
– Telecommunication
– LAN & WAN
– Broadband CATV
– Network FTTX.
Технические характеристики
– Insertion loss: 0.20dB
– Return loss: >55dB (UPC)
– Boot size: 2.0mmm
– Connectors type: LC Simplex
