描述

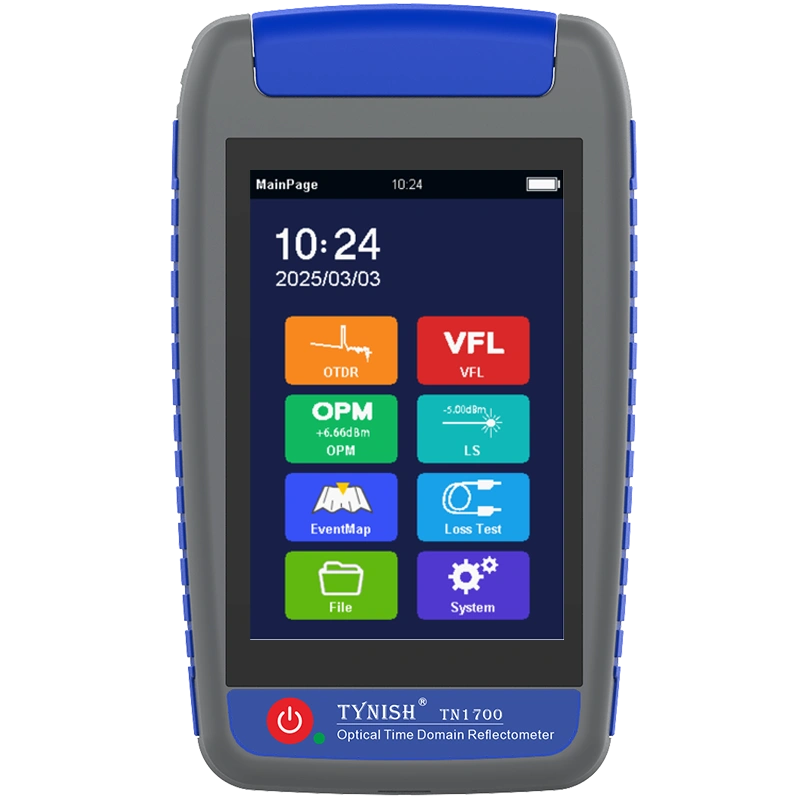

Multi Functions are integrated
– OTDR (Auto Test)
– OTDR (Average Test)
– OTDR (Real Time Test)
– Event Map
– Visual Fault Locator (VFL)
– Optical Power Meter (OPM)
– Optical Light Source (OLS)
– Loss Test
– LED Light
Packing List
– OTDR
用户手册
– Cleaner
– USB Cord
– Carry Bag
| 模型 | TN1700-D22 | TN1700-P1 | TN1700-P2 | TN1700-A22 |
| 波长 | 1310纳米和1550纳米 | 1550纳米 | 1610纳米 | 1625nm |
| 动态范围 | 22/20dB | 22d | 22分贝 | 22分贝 |
| 测试靶场 | 3m to 70km | 3m to 70km | 3m to 70km | 3m to 70km |
| OTDR | √ | √ | √ | √ |
| 功率计 | √ | √ | √ | √ |
| 光源 | √ | √ | √ | √ |
| 可视故障定位器 | √ | √ | √ | √ |
| Loss Testing | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ |
| 事件地图 | √ | √ | √ | √ |
| 1490nm Online | x | √ | √ | √ |
| 1550nm Online | x | x | √ | √ |
| 1577nm Online | x | √ | √ | √ |
The Kit Includes: OTDR, SC Connector, User Manual, OTDRviewer Software, USB Cord
Cleaning Tool, Carrying Case, Certificate of Calibrate
Note: TN1700-P2/A22 is with Filter 1490nm and 1577nm
The power of signal online >0dBm are not allowed
下载
定制
FirstFiber Technologies 提供两种定制服务供您选择：轻度定制和深度定制。详情请见此处。 这里。.
If you would like a Light Customization based on the TN1700 OTDR, please provide requirements according to the instructions below. If you prefer a Deep Customization, please contact our sales team to discuss the details.
| 指示 | |
| 型号 | 最多8个字符，不允许使用特殊字符。. |
| 标识 | 高分辨率格式。（.jpg、.bmp、.psd、.cdr 等） |
| 启动画面 | 320×480像素，.bmp格式，16位色彩深度 |
| 语言 | 请联系销售部门索取英文版字段列表。. |
轻度定制（型号、LOGO 和语言）完全免费，但最低起订量为 20 件。
常问问题
How many traces can be saved?
The OTDR can save 500 testing results. If you insert SD card, no limit.
Can we get report for the testing fiber?
yes, by PC software. You can download the software in “Download” of the webpage.
Does it test active fiber?
yes, these models TN1700-P1, TN1700-P2, TN1700-A22 can test active fiber (live fiber, in-service fiber) because they are with filter.
包装和运输
标准包装
| 模型 | 每箱数量 | 净重 | 毛重 | 尺寸 |
| TN1700 | 10 | 0.5 KG | 7 KG | 53x23x26厘米 |
非标准包装
| 模型 | 每箱数量 | 净重 | 毛重 | 尺寸 |
| TN1700 | 1 | 0.5 KG | 0.75 KG | Carton #9 |
FirstFiber Technologies 的所有测试仪器均通过 DHL 空运快递发货，3 至 7 天即可送达全球各地。请注意，可下载的运费清单仅供参考。准确的运费以销售代表提供的最终报价为准。.
