Description

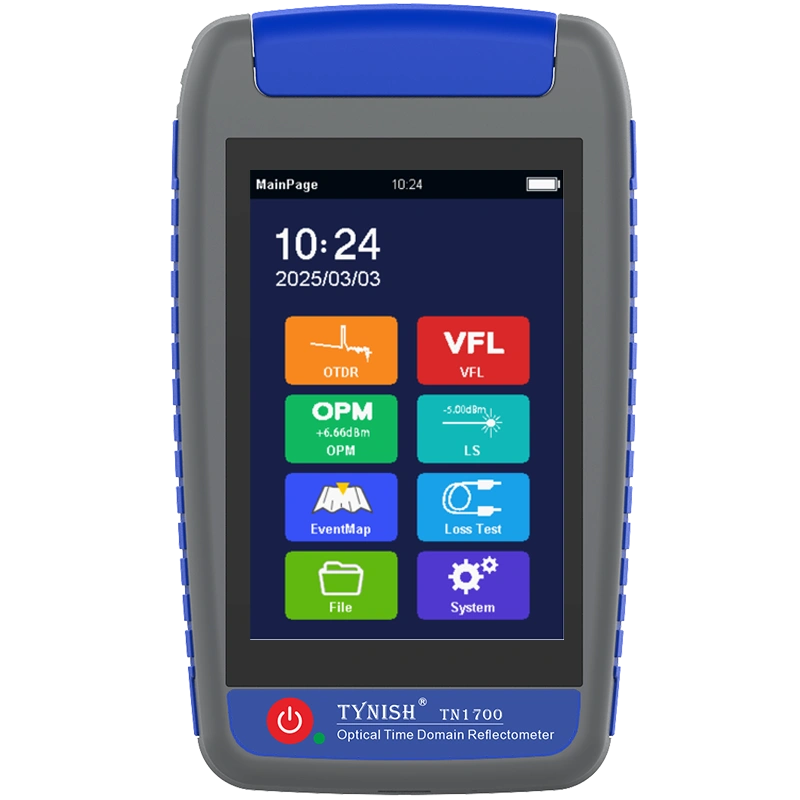

Multi Functions are integrated
– OTDR (Auto Test)
– OTDR (Average Test)
– OTDR (Real Time Test)
– Event Map
– Visual Fault Locator (VFL)
– Optical Power Meter (OPM)
– Optical Light Source (OLS)
– Loss Test
– LED Light
Packing List
– OTDR
– User Manual
– Cleaner
– USB Cord
– Carry Bag
| Model | TN1700-D22 | TN1700-P1 | TN1700-P2 | TN1700-A22 |
| Wavelength | 1310nm & 1550nm | 1550nm | 1610nm | 1625nm |
| Dynamic Range | 22/20dB | 22d | 22dB | 22dB |
| Testing Range | 3m to 70km | 3m to 70km | 3m to 70km | 3m to 70km |
| OTDR | √ | √ | √ | √ |
| Power Meter | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ |
| Visual Fault Locator | √ | √ | √ | √ |
| Loss Testing | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ |
| Event Map | √ | √ | √ | √ |
| 1490nm Online | x | √ | √ | √ |
| 1550nm Online | x | x | √ | √ |
| 1577nm Online | x | √ | √ | √ |
The Kit Includes: OTDR, SC Connector, User Manual, OTDRviewer Software, USB Cord
Cleaning Tool, Carrying Case, Certificate of Calibrate
Note: TN1700-P2/A22 is with Filter 1490nm and 1577nm
The power of signal online >0dBm are not allowed
Download
You can also visit the link to check TN1700 User Guide
Video Demo
Customization
FirstFiber Technologies offers two types of customization services for you to choose from, Light Customization and Deep Customization. You can refer to the details here.
If you would like a Light Customization based on the TN1700 OTDR, please provide requirements according to the instructions below. If you prefer a Deep Customization, please contact our sales team to discuss the details.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 320×480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
Light customization (Model, LOGO, and Language) are 100% FREE OF CHARGE, but MoQ 20
FAQ
How many traces can be saved?
The OTDR can save 500 testing results. If you insert SD card, no limit.
Can we get report for the testing fiber?
yes, by PC software. You can download the software in “Download” of the webpage.
Does it test active fiber?
yes, these models TN1700-P1, TN1700-P2, TN1700-A22 can test active fiber (live fiber, in-service fiber) because they are with filter.
Packaging & Shipping
Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| TN1700 | 20 | 13 kg | 15 kg | 53x23x26cm |
| TN1700 | 30 | 20 kg | 23 kg | 53x53x26cm |
Non-Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| TN1700 | 1 | 0.65 KG | 0.75 KG | Carton #9 |
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
