Opis

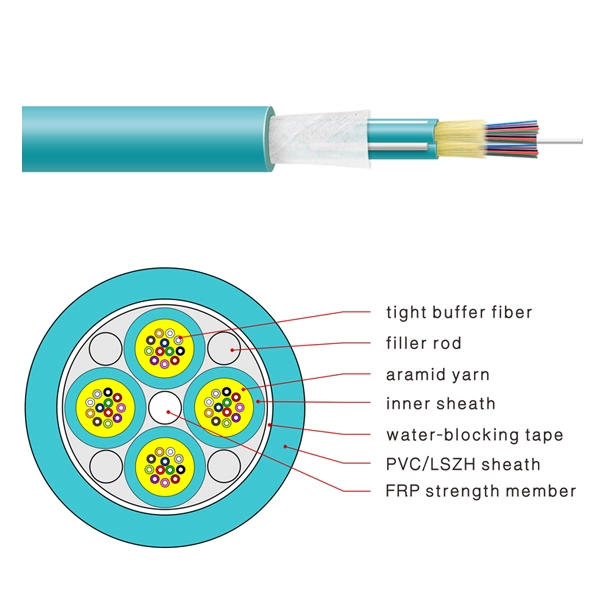

The cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.
Cechy
– Each sub cable contains aramid yarn,good bend performance,without loose tube,cleaning friendly,easy construction and connection.
– Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
– The low smoke and low halogen flame retardant sheath has the characteristics of fire prevention and self extinguishing, and is suitable for indoor environment such as computer room, cable shaft and indoor wiring.
– LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)
Standardy
– YD/T1258.2-2009
– ICEA-596
– GR-409
– IEC794
– the requirements of UL approval for OFNR and OFNP.
Charakterystyka optyczna
| G.652 | G.655 | G.657 | 50/125 µm | 62,5/125 µm | ||
| Tłumienie (+20℃) | @850nm | – | – | – | ≤3,5 mld/km | ≤3,5 mld/km |
| @1300nm | – | – | – | ≤1,5 mld/km | ≤1,5 mld/km | |
| @1310nm | ≤0,40 zł/km | ≤0,4/km | ≤0,3/km | – | – | |
| @1550nm | ≤0,30/km | ≤0,30/km | ≤0,25/km | – | – | |
| Przepustowość (Klasa A) | @850 | – | – | – | ≥500 MHz·km | ≥20 MHz·km |
| @1300 | – | – | – | ≥1000 MHz·km | ≥600 MHz·km | |
| Aperatura numeryczna | – | – | – | – | 0,200±0,015 NA | 0,275±0,015NA |
| Odcięta długość fali kabla $\lambda_{cc}$ | – | ≤1260 nm | ≤1480 nm | ≤1260 nm | – | |
Wydajność fizyczna
| Liczba włókien | Średnica kabla (mm) | Waga kabla (kg/km) | Wytrzymałość na rozciąganie Długo/Krótkoterminowe(N) | Odporność na zgniatanie Krótko-/Długoterminowe (N/100mm) | Promień gięcia statyczny/dynamiczny (mm) |
| 24 | 13.8±0.5 | 70 | 500/1300 | 300/1000 | 30D/15D |
| 48 | 18.0±0.5 | 150 | 500/1300 | 300/1000 | 30D/15D |
| 96 | 18.0±0.5 | 340 | 500/1300 | 300/1000 | 30D/15D |
Temperatura przechowywania/robocza: -20℃～﹢60℃
