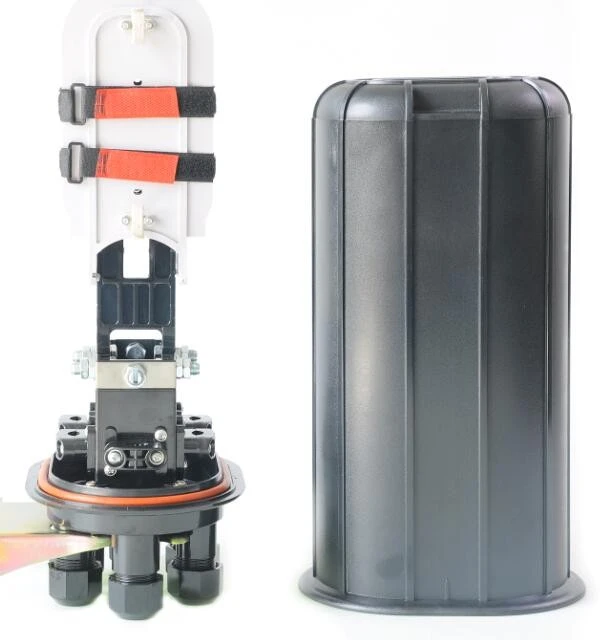

Descrição
Dimension and capacity
| Outside dimension (Height x Diameter) | 455mm×220mm |
| Weight (excluding outside box) | 3300g—4200g |
| Number of inlet/outlet ports | 6 pieces |
| Diameter of fiber cable | Φ8mm～Φ21 mm |
| Capacity of FOSC | Bunchy: 12-240 (cores), Ribbon: up to 576 (cores) |
Main Components
| N.º. | Name of components | Quantidade | Utilização | Remarks |
| 1 | FOSC cover | 1 piece | Protecting fiber cable splices in whole | Height x Diameter350mm x 220mm |
| 2 | Fiber optic splice tray (FOST) | Max. 10 trays ( bunchy)Max. 8trays (ribbon ) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for:Bunchy: 12, 24 (cores) Ribbon: 6 (pieces) |
| 3 | Base | 1set | Fixing internal and external structure | |
| 4 | Plastic hoop | 1 conjunto | Fixing between FOSC cover and base | |
| 5 | Gasket ring | 1 conjunto | Big gasket ring is used to seal FOSC cover and base.Small gasket ring is used to seal inlet/outlet tube | 1 piece of big gasket ring, 6 pieces of small gasket ring |
| 6 | Pressure testing valve | 1 conjunto | After inject air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| 7 | Earthing deriving device | 1 conjunto | Deriving metallic parts of fiber cables in FOSC for earthing connection | Configuration as per requirement |
Main Accessories
| N.º. | Name of accessories | Quantidade | Utilização | Remarks |
| 1 | Heat shrinkable protective sleeve | Protecting fiber splices | Configuration as per capacity | |
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per capacity | |
| 3 | Earthing wire | 1 piece | Putting through between earthing devices | |
| 4 | Abrasive cloth | 1 piece | Scratching fiber cables | |
| 5 | Labeling paper | 1 piece | Labeling fibers | |
| 6 | Special wrench | 2 pieces | Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube | |
| 7 | Measuring paper | 1 piece | To measure perimeter, of which its diameter is enlarged with seal tape | |
| 8 | Seal tape | 1 ring | Enlarging diameter of fiber cable which fits in with gasket ring. | Configuration as per specification |
| 9 | Insulation tape | 1 ring | Enlarging diameter of fiber cable for easy fixing | |
| 10 | Metal hoop | 1 conjunto | For wall mounting and pole hugging | |
| 11 | Buffer tube | decided by customers | Hitched to fibers and fixed with FOST, managing buffer. | Configuration as per requirement |
| 12 | Desecante | 1 saco | Put into FOSC before sealing for desiccating air. |
