Caja terminal óptica de 12 núcleos FF-FTB12B

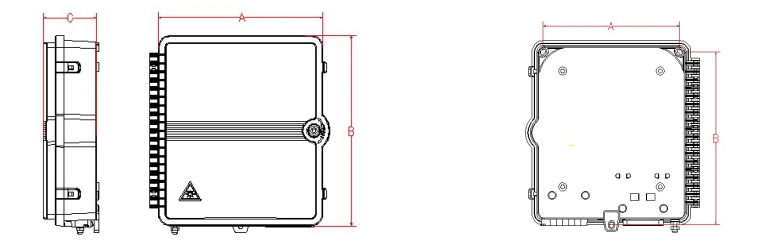

From an OSP network engineering perspective, the FF-FTB12B optical terminal box provides an extremely compact yet functional design for 12-core fiber distribution. The overall chassis dimensions of 225 x 200 x 65 mm make it ideal for tight wall-mount or pedestal enclosures. Inside, the dedicated splice area measures 168 x 210 mm, offering ample room for fusion splice sleeves and excess pigtail slack without violating bend-radius limits. At a reference price of $15 USD, it delivers a cost-effective solution for last-mile FTTx branching.

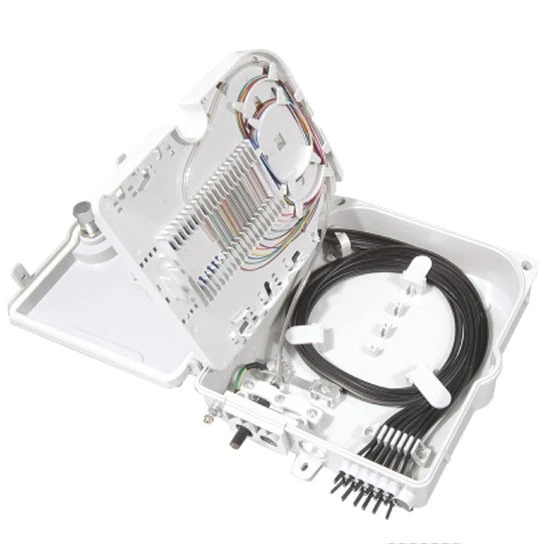

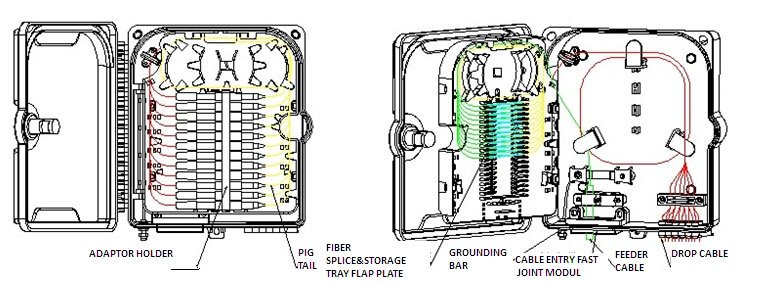

We deployed a bulk order of FF-FTB12B terminal boxes pre-configured with 12 SC/APC adapters and 12 SC/APC pigtails for a suburban FTTH expansion. The internal management layout keeps incoming feeder fibers and outgoing drop pigtails neatly separated, preventing macrobending attenuation during routine patching. The adapter alignment panel holds SC connectors firmly, ensuring low insertion loss across all 12 ports. Having the flexibility to order either fully populated or unpopulated units makes inventory planning much simpler across different project sites.

The FF-FTB12B serves as a reliable 12-core splitter and splice box for our network distribution layer. The dual capacity for up to 12 splices and 12 splitter ports allows us to handle local passive optical network (PON) branching cleanly inside a single housing. Cable strain relief fixtures at the entry points hold incoming cables securely against vibration and tension. For network operators looking for a durable, compact 12-core terminal solution with straightforward field accessibility, this model is a solid choice.
