Description

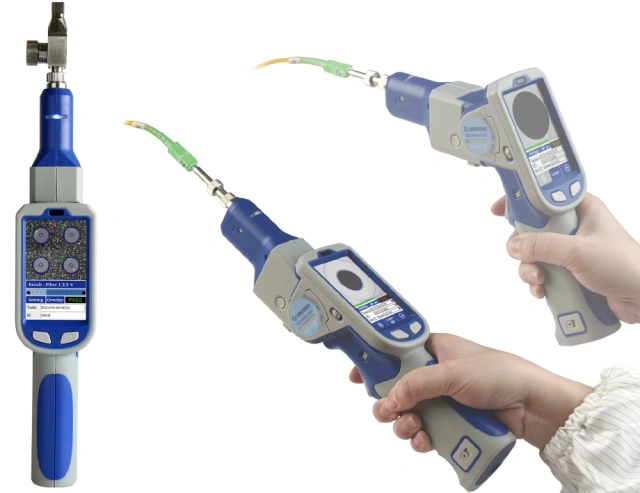

AutoGet Wifi is industry’s first foldable, all in one handheld endface microscope. It provides an intelligent fiber endface inspection solution, which can automatically inspect and analyze single fiber, MPO or other multifiber connectors with unparalleled reliability, great efficiency and convenience. It is the most ideal solution in this area currently.
Main Features
• Fully automatic, one step process
• All in one design, Integrated HD touchscreen
• Excellent analysis ability (based on IEC or user-defined criteria)
• Multiple data transfer methods, supports SD card, Wifi or USB
• One-step inspection for MPO or other multifiber, back review is available
• Unique foldable body, flexible option for straight use or foldable type
• Unique Replaceable Intelligent Battery, “Permanent power” with 1+ battery
• Universal USB Type C interface, compatible with various charging devices
Fully automatic, one step process
AutoGet Wifi integrates autonomous image processing algorithm, to achieve 100% automatic operation. Such as auto recognition, auto focus, auto center, auto capture, auto analyse, and auto storage.
MPO Inspection
AutoGet Wifi’s unique MPO interface adapter supports automatic and fast inspection of MPO and other multifiber connectors. Users can analyze all fiber endfaces with one click, and back review the analysis results.
Excellent analysis ability
AutoGet Wifi performs precise and automated analysis based on IEC or user-defined criteria with multiple magnifications, not only has a wide field of view, but also with very rich details.
PASS/FAIL LED indicator
AutoGet Wifi is configured with pass/fail LED indicators, users can directly determine the endface inspection result. If it displays in green, it means PASS, no need to check the screen to see the result and directly go to the next point. If it displays in red, it means FAIL, user can check the screen to view the analysis image and for judgment.
Integrated HD touchscreen
AutoGet Wifi adopts a 3.2” HD touchscreen, users can view images and analysis results without any third-party display terminals, easily checking the fiber endfaces.
Integrated light sensitivity function can automatically adjusts screen brightness based on ambient light and darkness.
Multiple transmission methods
AutoGet Wifi provides a variety of transmission methods, data can be stored directly on the device or connected to a PC via Wifi or USB, and to be exported.
Unique foldable body
AutoGet Wifi has the industry’s unique foldable body, it’s special shaft structure design, makes the body can be flexibly folded into a straight rod or pistol type (120°), easily meet the requirements of different application environments.
Unique LED lighting
AutoGet Wifi equipped with LED lights that can be easily used even in low-light environments, bring customers with great convenience.
Unique replaceable intelligent battery
AutoGet Wifi has an industry-replaceable intelligent battery. The battery can be charged independent and power lasts nearly 9 hours , also can be used it while charging . Users can buy 1 more battery to keep continuous power.
Universal USB type C interface
AutoGet Wifi has the universal USB Type C interface, which is compatible with various charging devices.
Rich adapter parts
AutoGet Wifi has more than 50 kinds of adapters, can meet user’s multiple inspection needs, support MF , compatible with MPO/MTP. Special adapter interface can be customed.
Download
FAQ
Q: What is the AutoGet WiFi Fiber Optic Microscope?
A: AutoGet WiFi is a foldable, all-in-one handheld optical microscope designed for inspecting and analyzing single fiber, MPO, and multifiber endfaces.
Q: How does the automatic inspection work?
A: It operates through a fully automated, one-step process including auto-recognition, auto-focus, auto-centering, auto-capture, auto-analysis, and auto-storage.
Q: Does it support MPO and multifiber connectors?
A: Yes, its dedicated MPO adapter enables fast, one-click inspection and back review for MPO and other multifiber connectors.
Q: How do the PASS/FAIL LED indicators work?
A: Integrated LED indicators show green for PASS and red for FAIL, allowing technicians to assess connection status instantly without checking the screen.
Q: What are the main design and hardware features?
A:
- Display: Integrated 3.2-inch HD touchscreen with automatic brightness adjustment based on ambient light.
- Ergonomics: Foldable body design that flexibly converts between a straight rod and a 120° pistol grip.
- Illumination: Built-in LED lights for low-light environments.
Q: What are the power supply and data transfer options?
A:
- Power: Replaceable intelligent battery offering nearly 9 hours of runtime, chargeable via a universal USB Type-C port even during use.
- Data Transfer: Supports direct storage and data export via Wi-Fi, USB, or SD card.
Q: Are there different adapter types available?
A: Yes, it offers over 50 adapter types to meet various inspection needs, including support for MPO/MTP and custom interfaces.
