Description

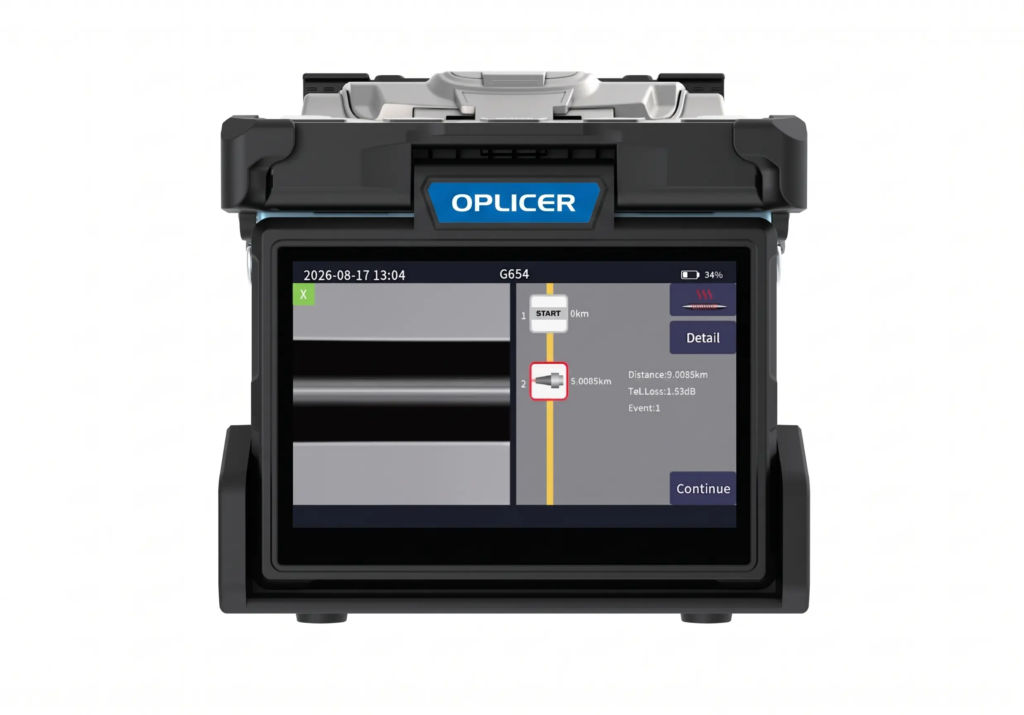

The Oplicer OS-1 is the ultimate OTDR & Splicer combo, engineered to revolutionize fiber optic construction and emergency repair. By integrating a high-precision core-alignment fusion splicer and a professional-grade OTDR into one ultra-compact body, it cuts your equipment weight in half and eliminates the hassle of carrying multiple heavy cases.

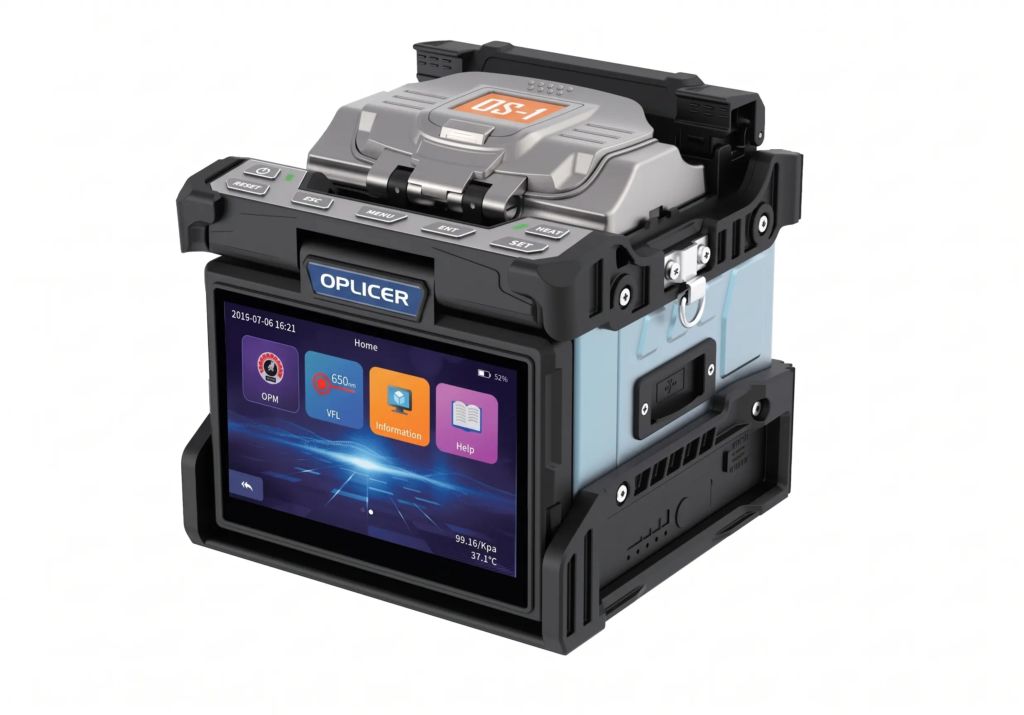

Experience a seamless workflow: achieve an 18-second rapid splice-and-heating, then launch an OTDR loss test with a single tap on the 5 inch touchscreen. The intuitive UI instantly pinpoints faults, allowing you to verify quality and re-splice on the spot. Enhanced with a built-in VFL and OPM, this 4-in-1 powerhouse effortlessly handles everything from FTTH to long-haul maintenance. Master the fiber in one go.
3s Quick Start — 18s Splicing and heating — 5s OTDR Test

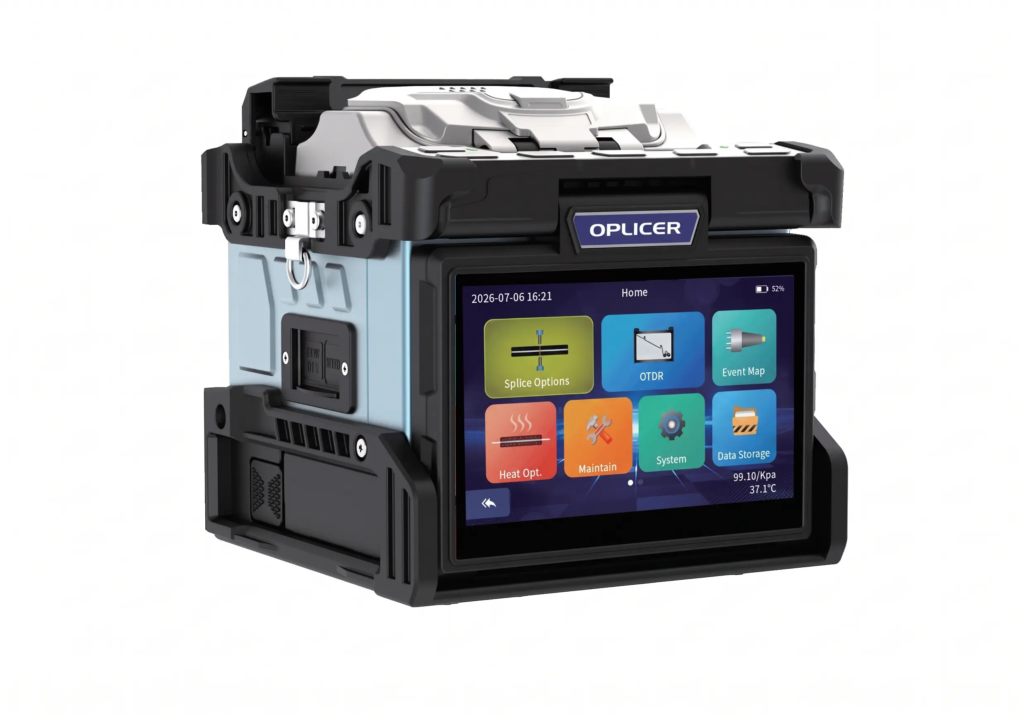

Splice it. Test it. Go.
Specification
| Fusion Splicer | |
| Splicing Type | Automatic, Manual |
| Motors Number | 6 motors |
| Fiber Alignment | Core Alignment, Cladding Alignment |
| Magnification | 640x |
| Discharge Calibration | Real Time Discharge Correction (Manual Available) |
| Fiber Holder | Metal Five in One Fixture |
| Fiber Type | G651, G652, G653, G655, G657 |
| Cutting Length | 8-16mm |
| Splicing Loss | SM 0.02dB MM 0.01dB DS 0.03dB NZDS 0.04dB |
| Discharge Electrode | ≥ 5000 times |
| Splicing Mode | Pre-set 500 Splicing Programs |
| Heating Mode | Pre-set 200 Heating Programs |
| Auto Heating | Yes |
| Splicing Time | Standard Fusion Time 8 seconds, Fast Fusion Time 7 Seconds |
| Heating Time | 10 seconds, Adjustable |
| Return Loss | ≥ 60dB |
| Heat Shrink Tube | 20 – 60 mm |
| Tensile Testing | 1.96N to 2.25N |
| Data is Stored | 2000 images, 20000 groups of data |
| OTDR | |
| Wavelength | 1550nm |
| Dynamic Range | 24/22dB |
| Event Dead Zone | 2.5 meters |
| Attenuation Dead Zone | 8 meters |
| Test Range | 0.1km, 0.5km, 1.25km, 2.5km, 5km, 10km, 20km, 40km, 80km, 125km |
| Pulse Width | 3ns, 5ns, 10ns, 20ns, 30ns, 50ns, 100ns, 200ns, 300ns, 500ns, 1μs, 2μs, 3μs, 5μs, 8μs, 10μs, 20μs |
| Distance Accuracy | ±（0.75 meters + Sampling Interval + 0.005%）× Test Distance |
| Linearity | ± 0.05dB/dB |
| Sampling Points | 32k |
| Refractive Index | 1.00000 – 2.00000 |
| File Format | SOR |
| Loss Measurement Mode | 4-point Method / 5-point Method |
| Optical Connector | SC/UPC |
| OPM | |
| Wavelength Range | 800nm – 1700nm |
| Calibrated Wavelength | 1310/1490/1550/1625/1650nm |
| Measurement Range | -70 – +6dBm |
| Uncertainty | ± 5% |
| Frequency | CW/270/300/1k/2k Hz |
| Optical Connector | SC/UPC |
| VFL | |
| Operating Wavelength | 650nm ±20nm |
| Output Power | 10mW |
| Operating Mode | CW/1Hz/2Hz |
| Optical Connector | SC/UPC |
| General | |
| Battery Capacity | 6200mAh |
| Altitude | 0 meters to 5000 meters |
| Working Temperature | -20 °C – +50 °C |
| Wind Speed | 15m/s |
| Humidity | 0 – 95% No Condensation |
| Storage Conditions | Relative Humidity 0 – 95%, -40 °C – +80 °C |
| Power Supply | AC 100 – 240V, DC 15 – 19V |
| Boot Time | 3 Seconds Fast Boot |
| Screen | 5 inch |
| Power Output | USB Reverse Charging |
| Data Interface | USB 2.0 |
| Dimension | 150 × 146 × 145mm |
| Carrying Case Dimension | 425 × 305 × 187mm |
| Weight | 2.06kg |
The Kit Includes
- Oplicer
- Carrying Case
- Fiber Cleaver
- Power Adapter
- AC Power Cord
- Optical Fiber Stripper
- Alcohol Bottle
- V-groove Cleaning Tool
- Warranty Card
- User Manual
- Test Report
- Spare Electrodes
- Pallet Cooler
- Hand Strap
Packing & Shipping
Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| OS-1 | 1 | 2.06 kg | 6 kg | 46.7×34.7×23.7cm |
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
