描述
FOSCIB6 Inline Type Fiber Optic Splice Closure (FOSC) is mechanical sealing for reusable application.
规格：
| 模型 | FOSCIB6 |
| 类型 | Inline type |
| Number of Inlet/Outlet ports | 6 ports |
| 电缆直径 | 2 ports×13mm, 2 ports×16mm, 2 ports×20mm |
| Maximum Capacity | Bunchy: 96 fibers;Ribbon: 144 fiber |
| Capacity per Splice Tray | Bunchy: single layer: 12 fibers; dual layers: 24 fibers;Ribbon: standard: 3pcs; max.: 6pcs |
| Quantity of Splice Tray | 4件 |
| Body Material | PC |
| Sealing Material | Thermoplastic rubber |
| Assembling method | Aerial, direct buried, pipelined, wall mounting, manhole |
| 方面 | 320(L)×210(W)×85(H)mm |
| 净重 | 2.65~2.8KG |
| 温度 | -40℃~65℃ |

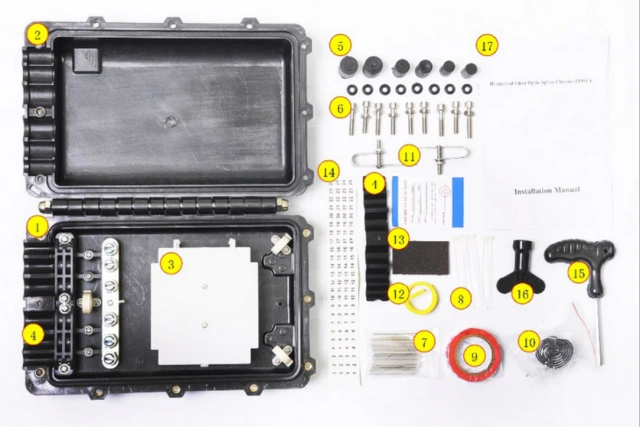

Main Components:
| 物品 | 姓名 | Usage | 数量 |
| 1 | Housing (Bottom) | To protect splices of fiber optic cables | 1个 |
| 2 | Housing (Cover) | To protect splices of fiber optic cables | 1个 |
| 3 | Splice Tray | To fix Fiber Splice Protective Sleeves | Max. 4pcs |
| 4 | Sealing Grommet | To seal bottom and cover | 1 set |
| 5 | Plug | To seal empty ports | 6pcs |
| 6 | Bolt | To fix bottom and cover | 1 set |
Standard Accessories:
| 物品 | 姓名 | Usage | 数量 |
| 7 | Fiber Splice Protective Sleeves | To protect fiber splices | Same as capacity |
| 8 | Nylon Tie | To fix buffer tubes with fibers inside | 8件 |
| 9 | Insulation Tape | To enlarge cable diameter for fixation | 1 roll |
| 10 | Sealing Tape | To enlarge cable diameter for sealing grommet | 1 roll |
| 11 | Hanging Hook | For aerial installation | 2个 |
| 12 | Grounding Wire | To connect with grounding device | 1个 |
| 13 | Abrasive Cloth | To polish fiber optic cable | 1个 |
| 14 | Labelling Paper | To label fibers | 1 set |
| 15 | M6 Wrench | To screw bolts of housing | 1个 |
| 16 | M10 Wrench | To screw nuts for strength member | 1个 |
| 17 | User Manual | To instruct installation | 1个 |
Optional Accessories:
| 物品 | 姓名 | Usage | 数量 |
| 1 | Valve | To perform pressure and sealing testing | 1个 |
| 2 | Grounding Device | To derive metallic components of fiber cable | 1 set |
| 3 | Buffer Tube | To protect fibers and be fixed on splice trays | specified |
| 4 | Desiccant | To desiccate air in FOSC after sealing | 1 bag |
| 5 | Adapter Panel | To fix 8pcs of SC adapters | 1个 |
