Description

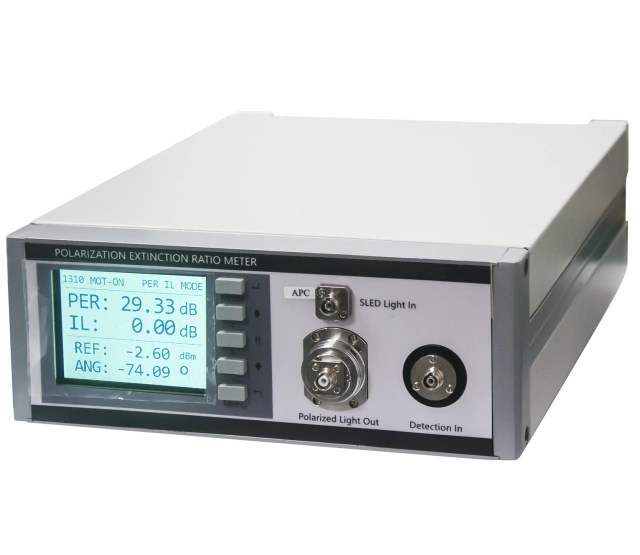

FF-8607 Automatic polarizing extinction ratio tester is a professional equipment for polarizing extinction ratio (PER) detection of polarizing device, polarization degree detection of light source, polarizing fiber extinction ratio detection and other polarizing device detection. It is a new generation of precision optical detection instrument developed by Jiahui Company combined with many years of optical device detection experience. It can be used to measure the extinction ratio of polarizing fiber, the extinction ratio of polarizing device, the extinction ratio of polarizing connector, the polarization degree of light source and the Angle between the polarization axis. The upper computer software is powerful and easy to operate. FF-8607 adds an automatic bias function on the basis of the previous, so that customers can use it faster and more convenient.
Features
- Large dynamic range PER;
- High accuracy, high stability;
- The test speed is fast;
- Automatic control deflection, deflection speed is fast;
- Support RS232 interface; Support secondary development;
- Interchangeable interface; Supports bare fiber jig
- Support IL testing; Insertion loss;
- Support polarization-maintaining fiber optic axis Angle test;
FAQ
Q1: What is the main function and application of the FF-8204 MPO Polarity Instrument?
A: The FF-8204 is an intelligent bench-top tester engineered for automated polarity judgment, line sequence validation, and continuity (on-off) analysis in MPO cable manufacturing. With a one-button automatic scan operation, it provides immediate feedback on wire sequence errors and cable continuity, delivering a high-efficiency quality control solution for semi-finished and finished MPO cable inspections.
Q2: What key testing features and diagnostic functions are built into the FF-8204?
A: Key features include:
- Automated One-Touch Scanning: Rapidly tests line continuity, wire sequence polarity, and fault analysis.
- Custom Polarity & Study Mode: Supports user-defined polarity settings, adaptive learning modes, and instant error alarms.
- Diagnostics & Field Maintenance: Delivers detailed error polarity analysis and allows simple replacement of wearable MPO connector components.
- PC Connectivity: Equipped with USB and RS232 communication interfaces for seamless integration with upper-monitor software applications.
Q3: Which optical fiber types and MPO core counts does the instrument support?
A: The tester offers comprehensive core count and fiber mode compatibility:
- Supported Core Counts: 12-core, 16-core, 24-core, 32-core, 48-core, and custom core arrangements.
- Supported Fiber Types: Single-mode SM (9/125 μm) and multimode MM (50/125 μm / 62.5/125 μm).
Q4: Who manufactures the FF-8204 MPO Polarity Instrument and what is its reference price?
A: Manufactured by FirstFiber Technologies, the FF-8204 MPO Polarity Instrument carries a reference price of $5,000 USD.
Q5: How can I place a volume inquiry or request a product demonstration?
A: You can click “Add to Quote” on the product page to submit your inquiry for volume pricing, or select “Request a Demo” to arrange a product evaluation.
