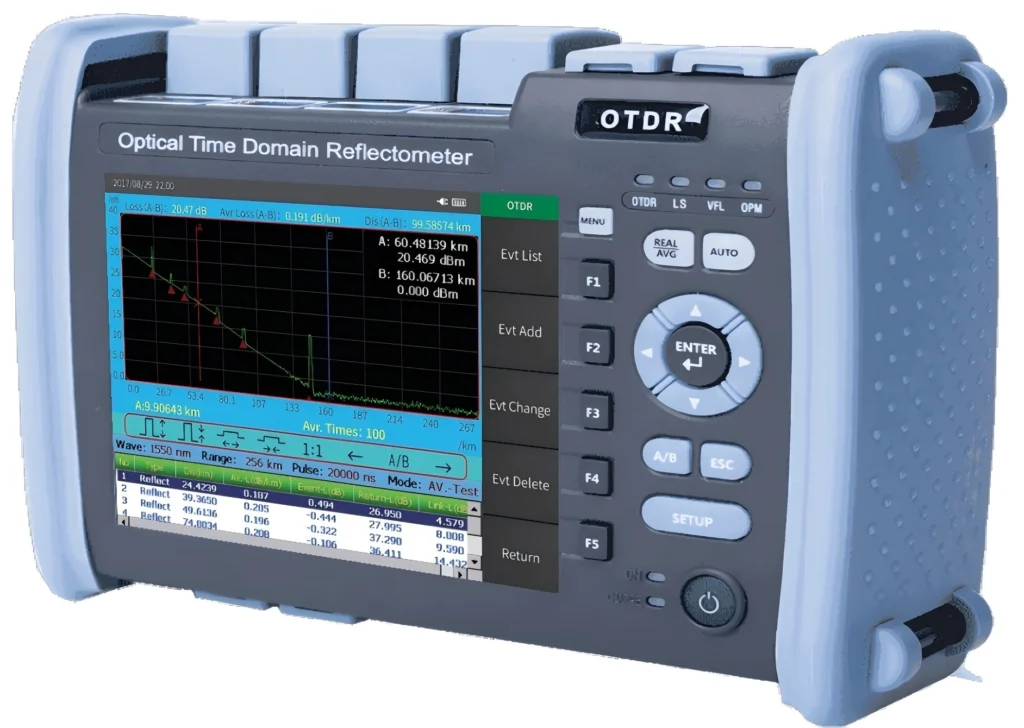

Splitter OTDR Fiber Optic Reflectometer Upgraded from FF-990PRO Series OTDR
1) New laser with the feature “High Dynamic Range at small pulse width” for better perfomance of splitter testing
2) New algorithm to analysize curves (trace)
| Model | Testing Wavelength | Dynamic Range | Event/ Attenuation Dead Zone |
| FF-990PRO-PD1 | 1310/1550nm | 37/35dB | 0.8/6m (Splitter: 30m) |
| FF-990PRO-PS1 | 1625nm | 38dB | 0.8/6m (Splitter: 30m) |
| FF-990PRO-PS2 | 1650nm | 38dB | 0.8/6m (Splitter: 30m) |
| FF-990PRO-PT1 | 1310/1550/1625nm | 38/36/36dB | 0.8/6m (Splitter: 30m) |
| FF-990PRO-PT2 | 1310/1550/1625nm | 40/38/38dB | 0.8/6m (Splitter: 30m) |
| FF-990PRO-PT3 | 1310/1550/1625nm | 42/40/40dB | 0.8/6m (Splitter: 30m) |
| FF-990PRO-PT4 | 1310/1550/1650nm | 38/36/36dB | 0.8/6m (Splitter: 30m) |
All functions in one device
– OTDR (Auto Test/Average Test/Real Time Test)
– Event Map
– Visual Fault Locator (VFL)
– Optical Power Meter (OPM)
– Optical Light Source (OLS)
– Print Report (PC software)
– Fiber Microscope (Optional)
– Remote Control (Optional)
Better for 1×2, 1×4, 1×8, 1×16, 1×32 Channels Splitter Testing.
Specifications
| General | |
| Dimension | 227×160×70mm 1.2 kg(battery included) |
| Display | TFT-LCD with LED backlight (Touch Screen) |
| Interface | 1×USB, 1xmini USB, 2xOTDR port, 1xVFL port, 1xPower Meter Port, 1xCharging Port |
| Power Supply | Input: 100V(AC) to 240V(AC), 50~60Hz; Output: 12V (DC) to 19V (DC), 1.5A |
| Battery | Lithium battery 7.4V, 5200mAh (with air traffic certification) Operating Time: 8 hours Charging time: <3 hours (power off) |
| Power Saving | Backlight off: Disable/1 to 99minutes Auto shutdown: Disable/1 to 99minutes |
| DataStorage | Internal memory: 4GB (about 40,000 groups of curves) |
| Language | English, Spanish, Portuguese, etc customized |
| Operating temperature and humidity | -10℃~+50℃, ≤95% (non-condensation) |
| Storage temperature and humidity | -40℃~+70℃, ≤95% (non-condensation) |
| Test parameter | |
| Pulse Width | 3ns,5ns,10ns,30ns,50ns,80ns,160ns,320ns,500ns,800ns,1μs,3μs,5μs,8μs,10μs,20us |
| Distance Range | 0.5km, 1km, 2km, 4km, 8km, 16km, 32km, 64km, 128km, 256km |
| Sampling Resolution | Minimum 16cm |
| Sampling Point | Maximum 256,000 points |
| Linearity | ≤0.05dB/dB |
| Averaging Times | 1 to 3000 |
| Auto Off | off, 15mins, 30mins, 1hours, 2hours, 4hours |
| Distance Accuracy | ±(0.75m+measuring distance×3×10 +sampling resolution ) ( excluding IOR uncertainty) |
| Screen Backlight | ≤100 |
| IOR Setting | 1.0000~2.0000, 0.00001 step |
| Units | km, mi, ft |
| VFL Module | |
| Wavelength(±20nm) | 650nm |
| Output power | 10mW,CLASSII B |
| Range | 10km |
| Mode | CW/2Hz |
| OPM Module | |
| Wavelength | 850/980/1300/1310/1490/1550/1625nm |
| Connector | 2.5mm Universal |
| Test Range | -50 to +26dBm |
| Uncertainty | ±5% |
| Light Source | |
| Laser Type | FP-LD |
| Output Power | -5dBm |
| Connector | SC/FC |
| Stability | CW,±0.5dB/15min(Test after 15 minutes of preheating) |
Download
Certificates
| Certification Name | Certificate Number | Issuing Authority |
|---|---|---|
| FCC | ENS2505030001E01001C | EMTEK |
| CE EMC | ENS2505030001E00901C | EMTEK |
| RoHS | EGZ2505030001C00503R | EMTEK |
| CE LVD | HTT190304031L | HTT |
| CE EMC | HTT190304031E | HTT |
| ISO9001 | Q86160662482 | INNOVER |
| PPWR | SHAEC26027144701 | SGS |
Customization
FirstFiber Technologies offers two types of customization services for you to choose from, Light Customization and Deep Customization. You can refer to the details here.
If you would like a Light Customization based on the FF-990PRO OTDR, please provide requirements according to the instructions below. If you prefer a Deep Customization, please contact our sales team to discuss the details.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 800×480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
Light customization (Model, LOGO, and Language) are 100% FREE OF CHARGE, but MoQ 5
Packaging & Shipping
Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| FF-990PRO | 5 | 12.5 KG | 15 KG | 53x75x29cm |
Non-Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| FF-990PRO | 1 | 2.5 KG | 3 KG | 26x20x16cm |
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
FAQ
Q: Can the FF-990PRO OTDR effectively test through optical splitters in our network infrastructure?
A: Yes, the FF-990PRO is explicitly designed as an OTDR for optical fiber splitters. It utilizes a new laser featuring a high dynamic range and reduced pulse width, which specifically improves performance during splitter testing. The device is ideal for testing 1×2, 1×4, 1×8, 1×16, and 1×32 channel splitters.
Q: We need to deploy these units to our field technicians with our corporate branding. Do you offer customization, and what are the requirements?
A: FirstFiber Technologies offers both “light” and “advanced” customization services. Light customization is 100% free and includes a custom model number (maximum of 8 characters with no special characters), a high-resolution logo, a custom 16-bit boot screen (800 × 480 px), and language options. The minimum order quantity (MOQ) for this free customization is 5 units.
Q: To reduce the amount of equipment our technicians carry, what additional testing functionalities are integrated into this model?
A: The FF-990PRO combines multiple functions into a single device. In addition to standard OTDR testing (automatic, average, and real-time), it includes an Event Map, a Visual Fault Locator (VFL), an optical power meter, and an optical light source (OLS). It also supports PC software for printing reports.
Q: What specific wavelength and dynamic range configurations can we choose from for different network requirements?
A: The FF-990PRO series offers multiple configurations based on the model,
- Dual-wavelength: The FF-990PRO-PD1 tests at 1310/1550 nm with a dynamic range of 37/35 dB.
- Single-wavelength: The FF-990PRO-PS1 (1625 nm) and FF-990PRO-PS2 (1650 nm) both offer a 38 dB dynamic range.
- Tri-wavelength: Models like the FF-990PRO-PT1 (1310/1550/1625 nm) start at 38/36/36 dB, scaling up to the FF-990PRO-PT3 with a dynamic range of 42/40/40 dB. There is also a PT4 model for 1310/1550/1650 nm at 38/36/36 dB. All models feature an event/attenuation dead zone of 0.8/6 m.
Q: How are the units packaged for bulk orders, and what is the expected delivery timeframe?
A: For standard packaging, the units are shipped with 5 items per carton. A standard carton measures 53 x 75 x 29 cm, with a net weight of 12.5 kg and a gross weight of 15 kg. All test instruments are shipped globally via DHL Express, with worldwide delivery typically taking 3 to 7 days.
