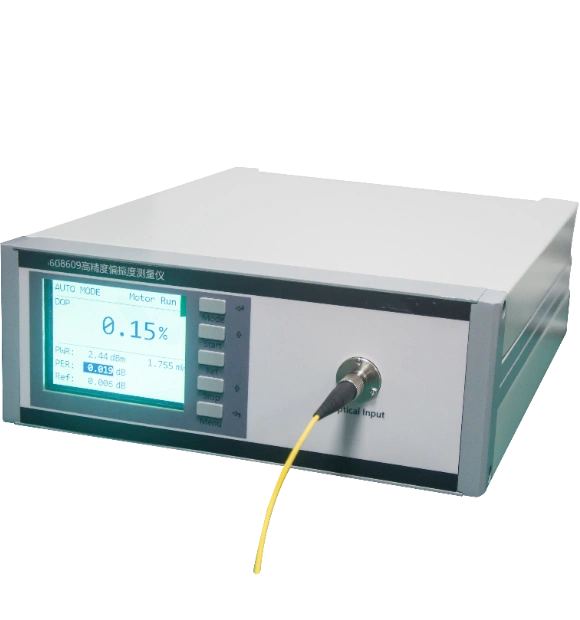

FF-8609 DOP Degree Of Polarization Measuring Tester

As a laboratory director characterising high-speed optical transceivers and polarization-maintaining laser sources, minimizing power perturbation during measurement is critical. The FF-8609 DOP tester stands out because of its two-wave plate rotation method, which induces less than 0.002 dB of optical energy loss during perturbation. Traditional extruded fiber scramblers routinely introduce up to 0.02 dB of intensity fluctuation, which distorts baseline power measurements. With a rapid 0.5-second measurement speed and an exceptional 0.1% DOP accuracy (0.01% resolution), this bench-top unit has significantly streamlined our automated QC testing across the 1270 to 1650 nm spectral band.

We integrated the FF-8609 into our automated optical component manufacturing line for real-time degree of polarization monitoring. The device's -30 dBm to +10 dBm input dynamic range and 0.01% DOP resolution allow our quality engineers to accurately characterize low-level polarization purity. The onboard RS232 interface enabled effortless integration into our automated LabVIEW control stack. Following a brief 15-minute warm-up cycle, the unit provides rock-solid consistency across the full 0% to 100% DOP measurement range. At a reference baseline of $1,300 USD, its precision far exceeds competing polarimeters in its price class.

Evaluating laser source stability across both C-band and L-band requires a polarimeter that delivers high-speed response without introducing optical noise. The FF-8609 delivers reliable 0.5s measurement sweeps across its entire 1270–1650 nm operating range. The universal optical connector interface supporting both FC/APC and FC/PC polished ferrules simplifies our fiber coupling process without requiring constant adapter swaps. For any optical R&D team requiring precise 0.1% DOP verification without introducing intensity fluctuations, the FF-8609 is a thoroughly engineered, high-precision instrument.
