FF-3225 CWDM Optical Power Meter

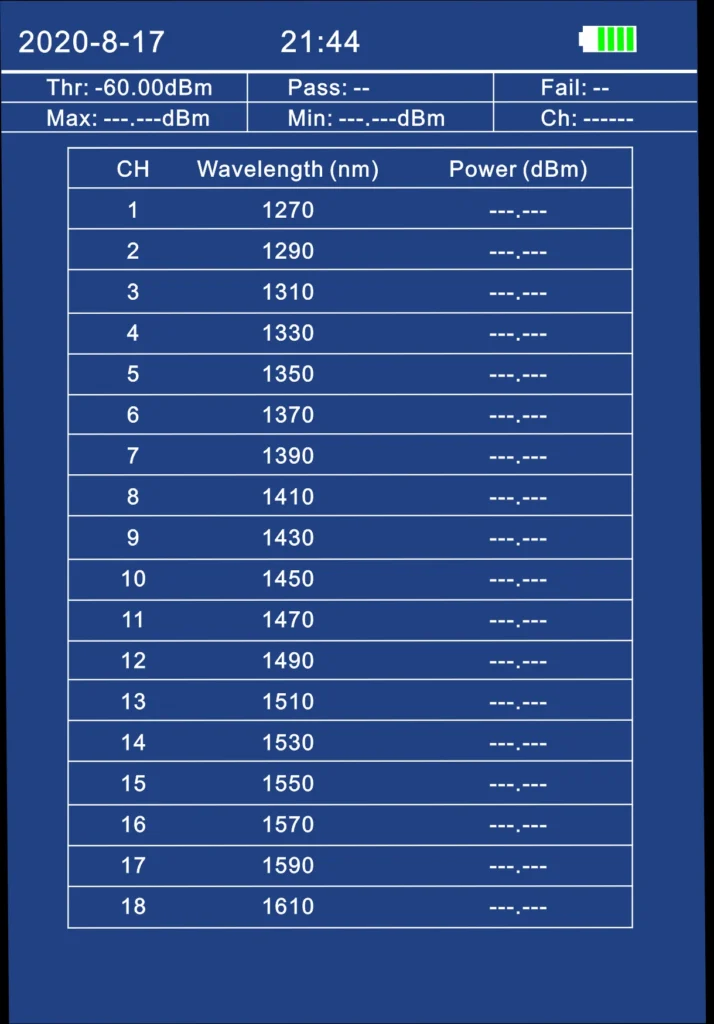

Replacing full-scale, expensive Optical Spectrum Analyzers (OSAs) for routine field audits across our 18-channel CWDM C-RAN fronthaul networks used to be a major capital hurdle. Deploying the FF-3225B (18-channel model covering 1270 nm to 1610 nm with 20 nm channel spacing) provided our transmission engineers with an immediate portable solution. The InGaAs detector delivers a tight 6.5 nm channel band pass and adjacent channel isolation exceeding 25 dB, preventing spectral crosstalk between adjacent optical channels during active multiplexed power audits. The 3.5-inch 320x480 color LCD displays power levels in a bar graph or itemized list mode, allowing technicians to quickly spot gain tilt or un-attenuated channels before connecting to sensitive demux hardware.

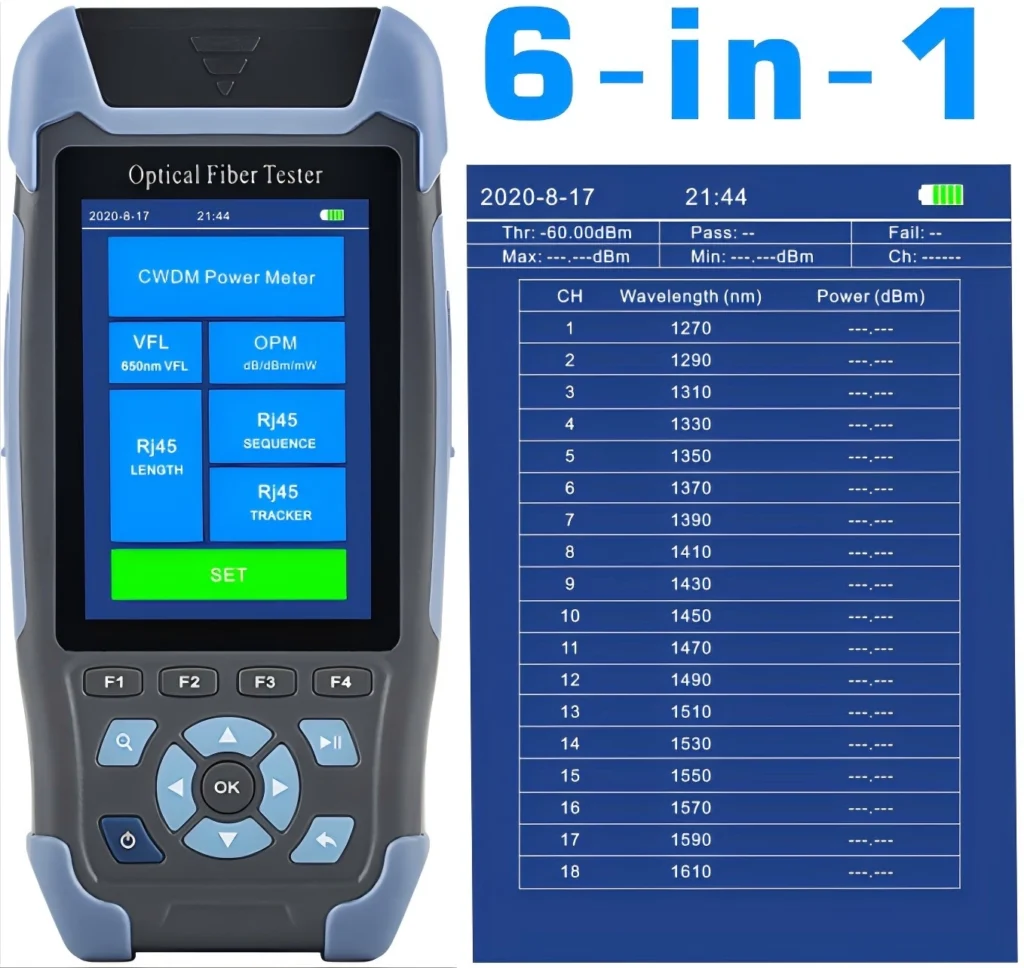

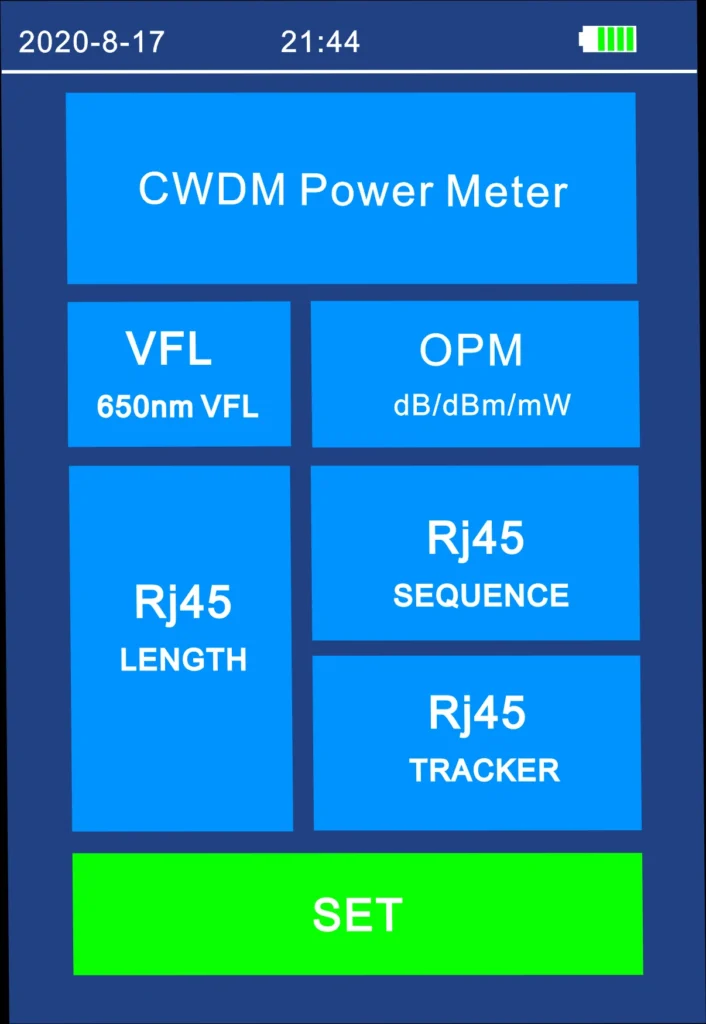

Operating across dense urban fiber routes requires technicians to troubleshoot both active optical transport and local copper/Ethernet handoffs. The 6-in-1 functional design of the FF-3225 integrates a multi-channel CWDM analyzer with a standard wideband OPM (calibrated for 850 nm to 1650 nm), a 10 mW Visual Fault Locator, and complete RJ45 cable distance, sequence, and active tracking capabilities. Eliminating three separate test sets from our field kits has significantly sped up turn-up verification times. Furthermore, the internal 3.7V 4000 mAh rechargeable lithium battery easily powers the unit through multi-site daily commissioning schedules without field battery swaps.

Precision power verification across long-haul CWDM access links requires low back-reflection to avoid destabilizing active transceivers. With a optical return loss exceeding 45 dB, the FF-3225 connects safely to active optical distribution frames without affecting signal reflection margins. The unit provides a wide dynamic power measurement range from -70 to +10 dBm with a clean 0.01 dB power resolution and 0.5 dB overall accuracy. Storing up to 1,000 complete multi-channel measurement records on board allows our maintenance teams to record full link profiles before offloading data to PC management software via USB. Supported by universal SC/APC and FC/APC connectors, it is an indispensable precision tool for B2B WDM network upkeep.
