Description
This Snap-Lock IP65 distribution box offers the ability to terminate 16 fibres housed in an IP65 rated box. Suitable for both SC Simplex and LC Duplex adapter types.

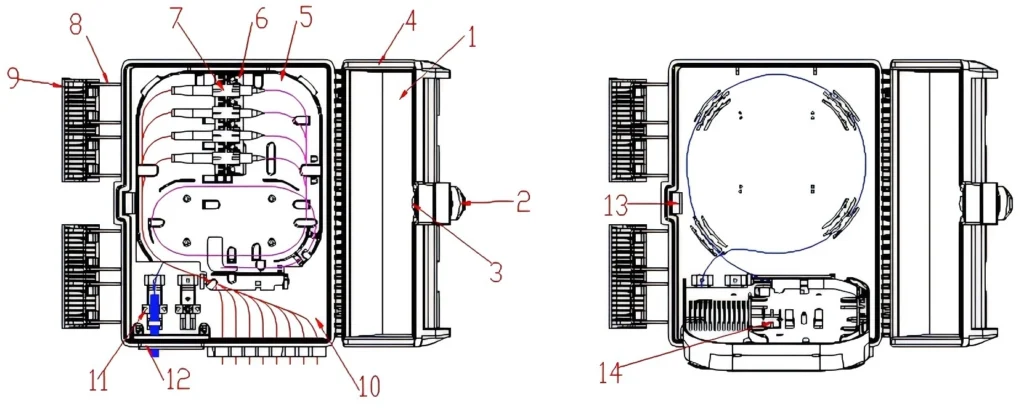

Can be used internally and externally. It offers up to 16 exit points for patching cables and 2 standard cable entry point for loose tube, tight buffered, pre-terminated and steel tape armoured cable. Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door, allowing for quick and easy installation.
Features:
1.Water-proof design with IP65 Protection level
2.Integrated with splice cassette and cable management system
3.Manage small & large quantities of fiber with a density
4.Easy to maintain and extend the capacity
5.Fiber bend radius control more than 40mm
6.Suitable for the fusion splice or mechanical splice
7.Capacity of fiber up to 16 ports
8.Varies of adapters are available

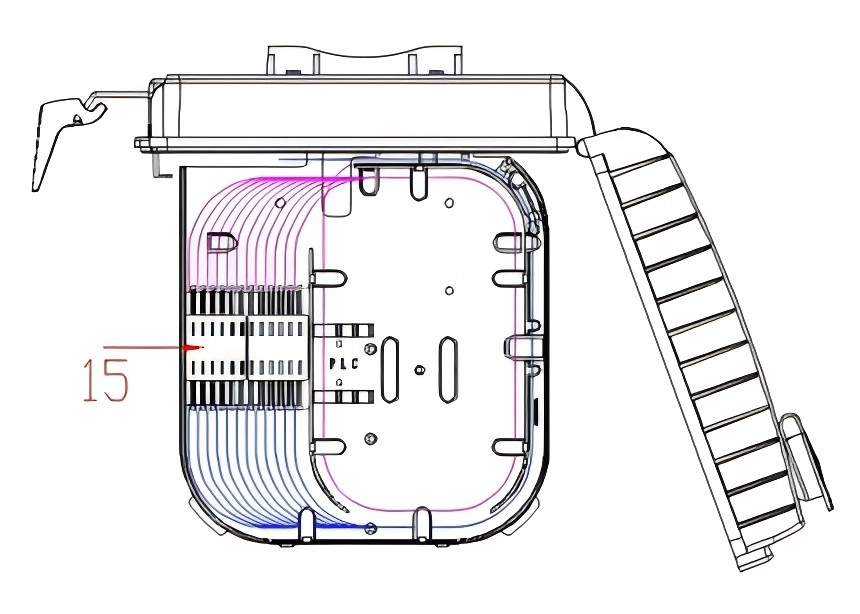

9.1×8, 1×16 PLC Splitter can be installed as an option
10.Efficient cable management
11.UV protection and anti-aging material
12.Burglar-proof padlock

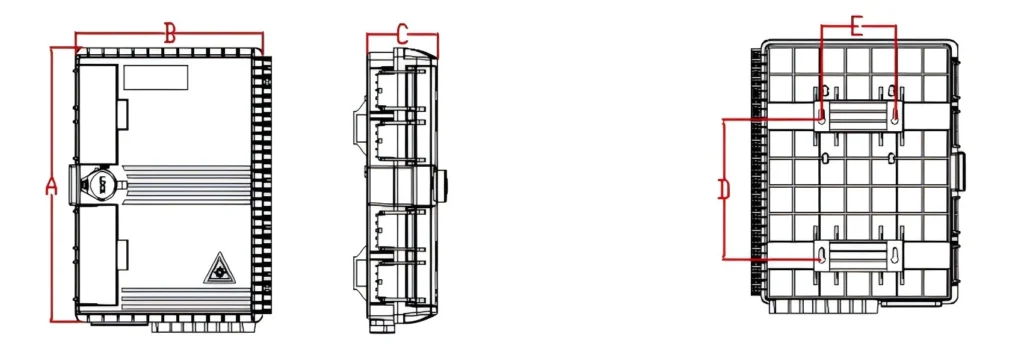

| Model | Description | Size | Max Capacity | Size | Cable ways | ||
| A*B*C(mm) | SC | LC | PLC | D*E (mm) | |||
| FF-FTB16A | Distribution Box | 293*219*84 | 16 | 32 | 32(LC) | 155*82 | Not cup-joint / cup-joint |
FAQ
Q1: What is the maximum core capacity and dimensions of the FF-FTB16A?
A: The FF-FTB16A supports up to 16 SC cores or 32 LC cores, with physical dimensions of 293 × 219 × 84 mm.
Q2: Is the FF-FTB16A suitable for outdoor installation?
A: Yes, it features an IP65 water-proof rating, UV-resistant anti-aging material, and a burglar-proof padlock feature for both indoor and outdoor deployments.
Q3: What adapter, pigtail, and PLC splitter options are available?
A: Configurable options include:
- Adapters: 16 SC/APC adapters, 16 SC/UPC adapters, or no adapters.
- Pigtails & Splitters: 16 SC/APC or SC/UPC pigtails, a 1×16 SC/APC or SC/UPC PLC splitter, two 1×8 SC/APC or SC/UPC splitters, or no pigtails/splitters.
Q4: What cable entry and splicing features does the box offer?
A: It includes 2 main cable entry ports for loose tube, tight buffered, pre-terminated, or steel tape armored cables, up to 16 drop cable exit points, integrated splice cassettes with >40mm bend radius control, and support for fusion or mechanical splicing.
Q5: What is the reference price and how can I request a quote?
A: The reference price is $30. To place an order or request a sample demo, select your preferred options on the product page and click Add to Quote or Request a Demo.
