Description

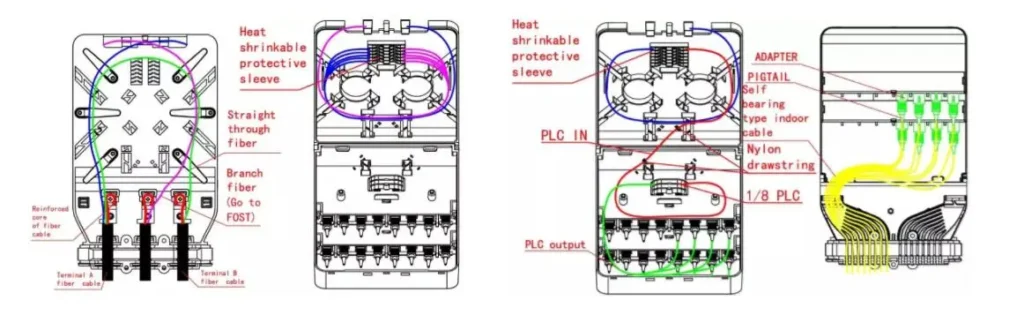

FF-FTB16Q Fiber Drop Closure for Fiber Access Terminal is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FF-FTB16Q Fiber Drop Closure for Fiber Access Terminal has 3 main cable ports and 16 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop through at the same time. The closure accommodates up to 12 fusion splices (or 4 mechanical splices), two PLC splitters and 16 SC adapters. Sealing is achieved via built-in gel technology, resulting in extremely convenient re-entry and re-sealing.
Features:
- Gel sealing for excellent sealing and re-sealing performance
- High quality engineering material of PP with good mechanical strength, sturdiness and durability
- Stacked splice tray, easy for opening, being taken out, and installation and maintenance
Standards:
- UL 94, Test for Flammability of Plastic Materials for Parts in Devices and Appliances
- YD/T2150-2010 Optical fiber cable distribution box
Specification:
| Max. Capacity | 16 fibers |
| Max. Inlet Cable Diameter | 20mm |
| Inlet Cable Number | 3pcs |
| Drop Cable Diameter | 2×3m drop cable |
| Outlet Cable Number | 16pcs |
| Protection Grade | IP68 |

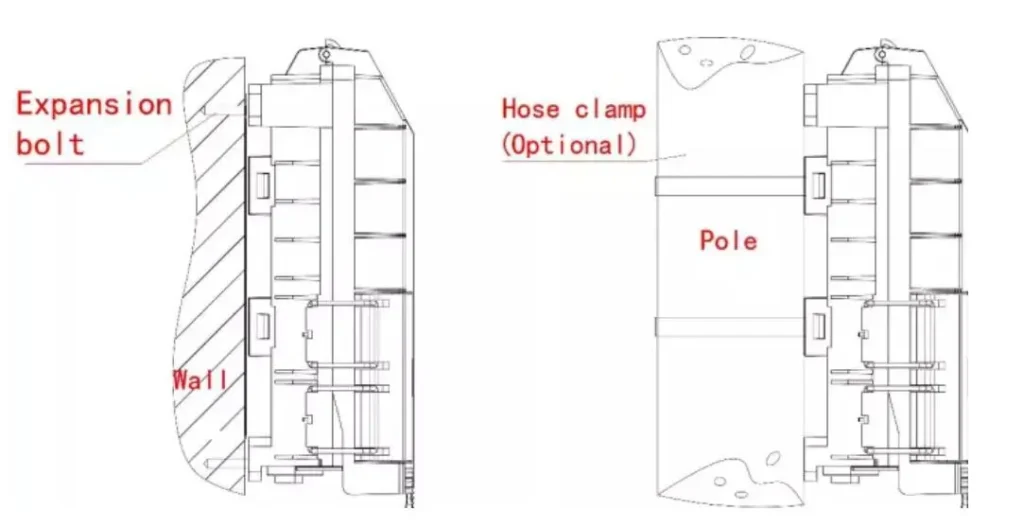

| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 300(H)*210(W)*105(D)mm |
| Working Temperature | -40°C~+65°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~85% (+30°C) |
| Air Pressure | 70~106KPa |

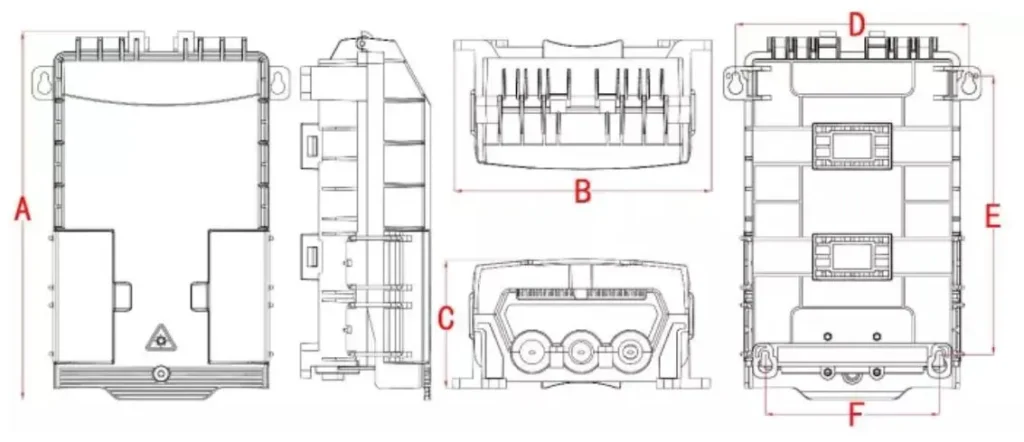

| Model | Size A*B*C (mm) | Max Capacity | Derrick installation size D*E*F(mm) | largest cable diameter(mm) |
| FF-FTB16Q | 300*210*105 | 16 | 190*227*142 | 20mm |
FAQ
Q1: What is the main design and application of the FF-FTB16Q?
A: The FF-FTB16Q is a butt-type, gel-sealed fiber optic splicing and patching closure engineered for fiber access points in telecom outside plant networks.
Q2: What is the cable port capacity and loop storage capability?
A: It features 3 main cable ports (max cable diameter of 20 mm) and 16 drop cable ports. It includes 6 m of loose tube loop storage, enabling 2 main cables to loop through simultaneously.
Q3: What internal capacities does the closure accommodate?
A: The closure houses up to 12 fusion splices (or 4 mechanical splices), two PLC splitters, and 16 SC adapters.
Q4: What are the protection ratings, sealing method, and construction material?
A: Built with high-strength polypropylene (PP) material compliant with UL 94 flammability standards, it achieves an IP68 ingress protection rating. Built-in gel sealing technology enables convenient re-entry and re-sealing.
Q5: What are the dimensions, mounting options, and operating conditions?
A: Measuring 300 x 210 x 105 mm, it supports both wall-mounting and pole-mounting for indoor or outdoor use, operating across temperatures from -40°C to +65°C.
Q6: Which adapter and pigtail options can be configured?
A: Selectable configurations include 16 pieces of SC/APC or SC/UPC adapters paired with 16 SC/APC or SC/UPC pigtails, or ordering without adapters and pigtails.
Q7: What is the reference price for the FF-FTB16Q?
A: The base reference price for the FF-FTB16Q fiber drop closure is $35 USD.
