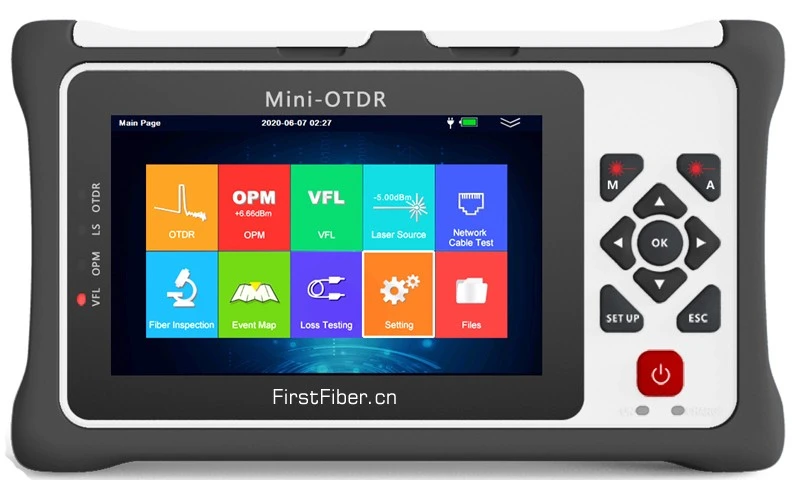

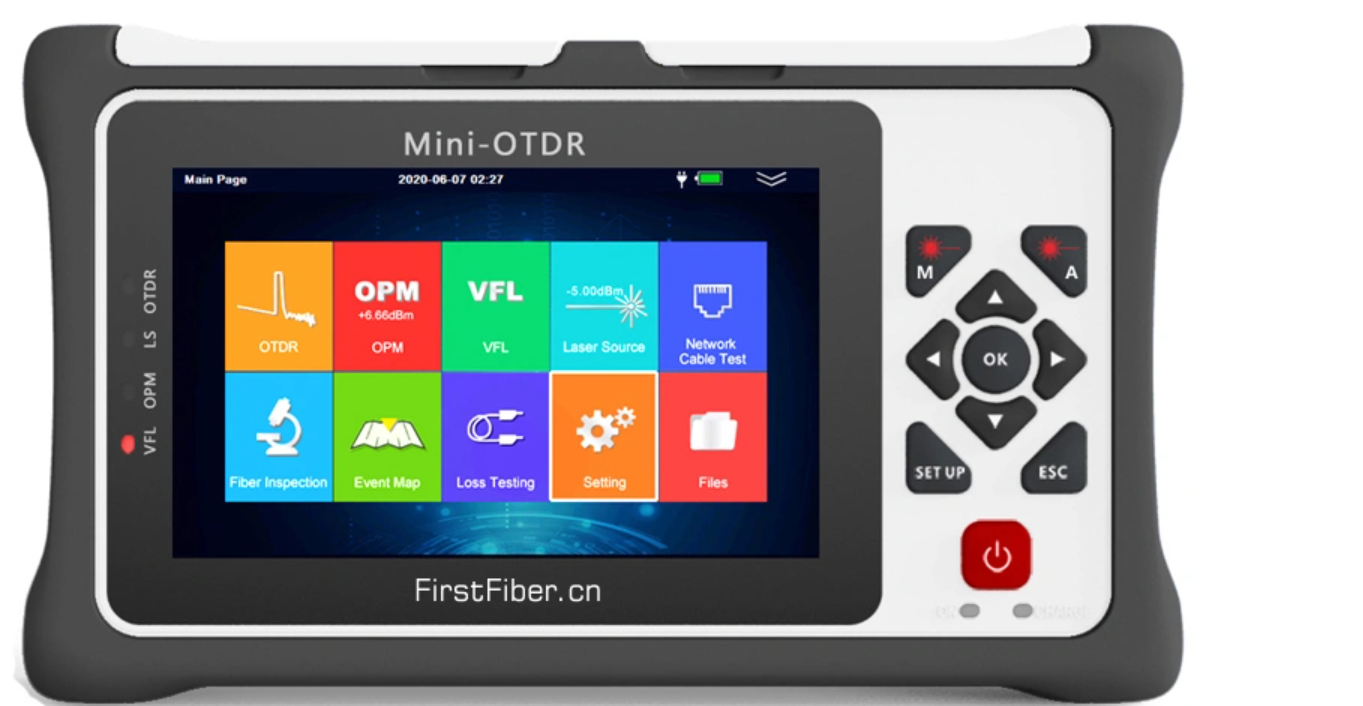

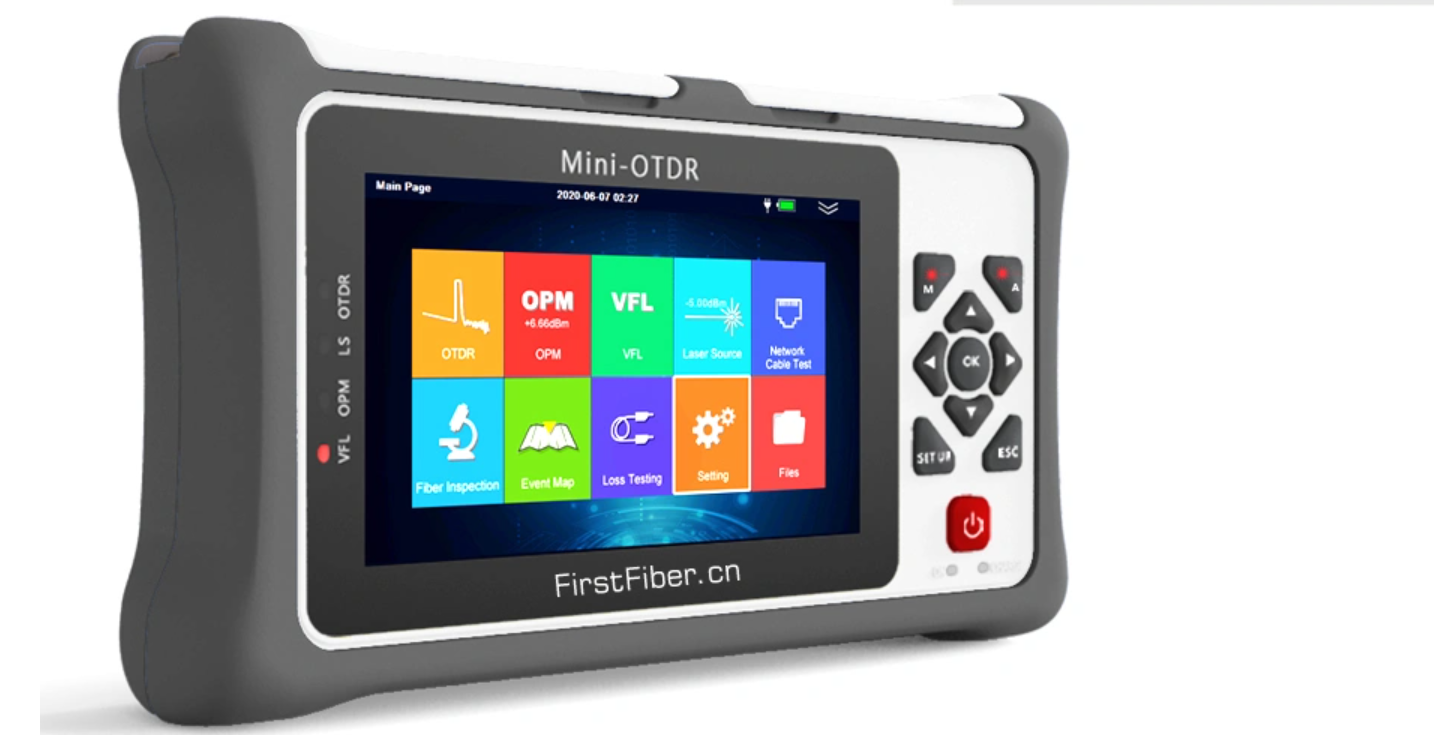

Description

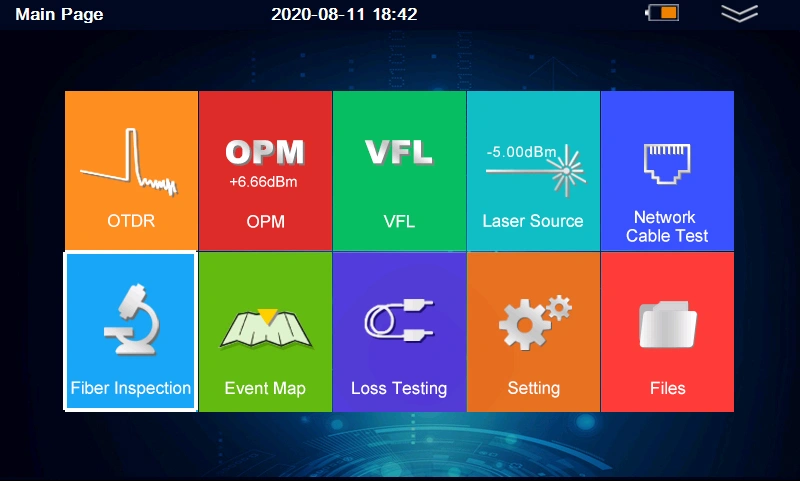

9 Functions in 1 device

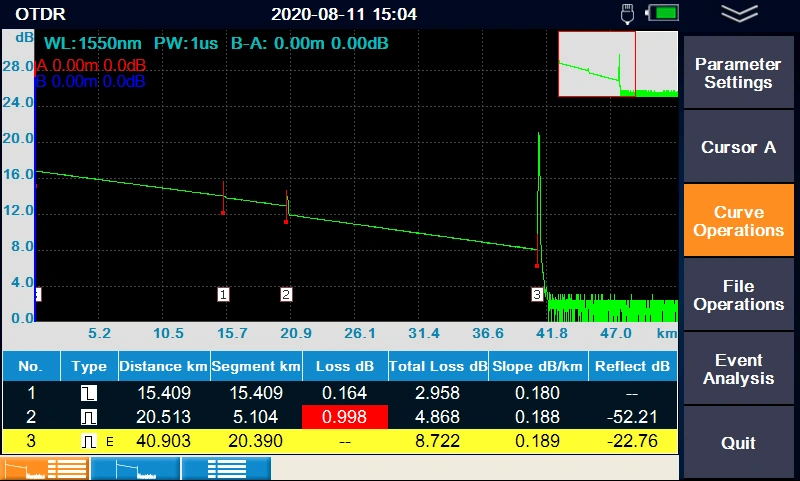

1) OTDR

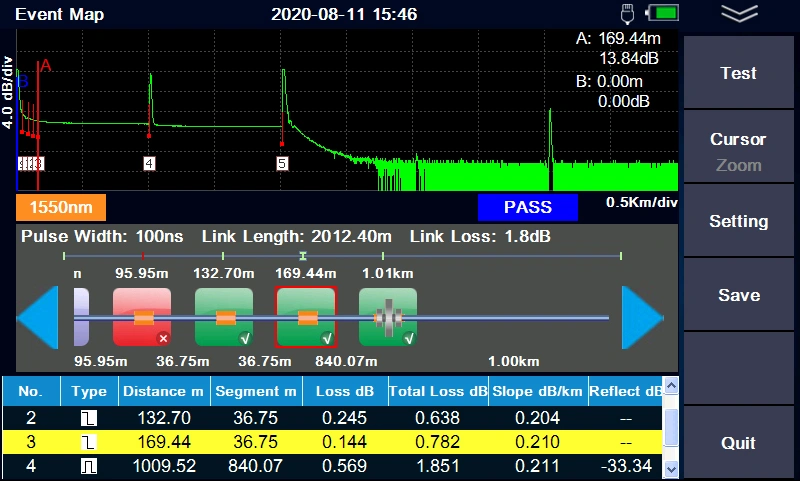

2) EVENT MAP
3) Optical Light Source

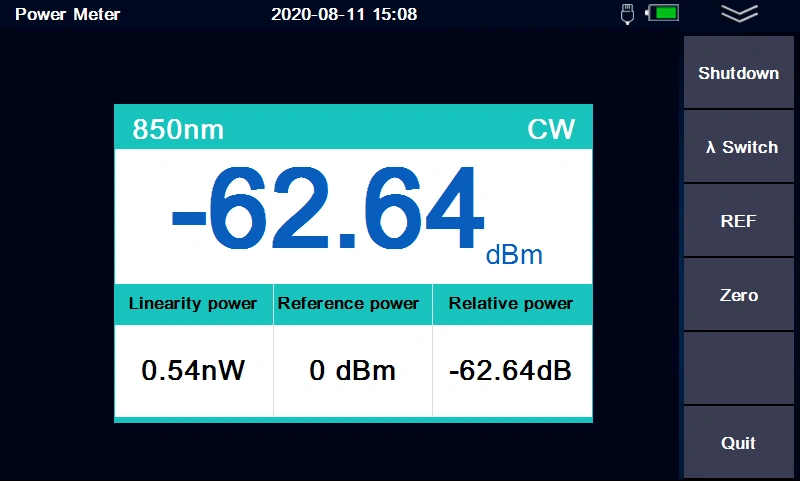

4) Optical Power Meter
5) Visual Fault Locator

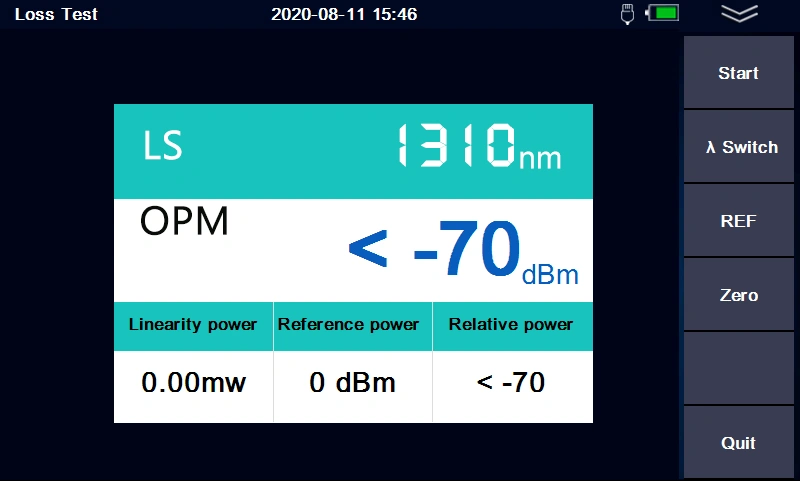

6) Insertion Loss Testing

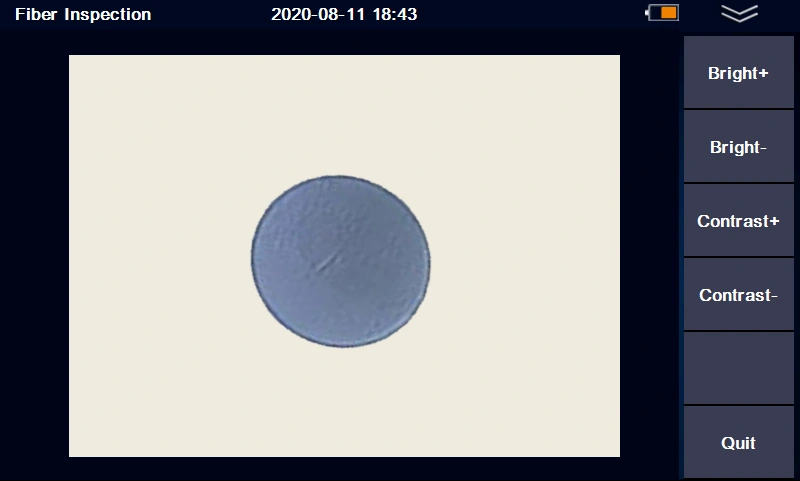

7) End-face Inspection (Probe sold separately)

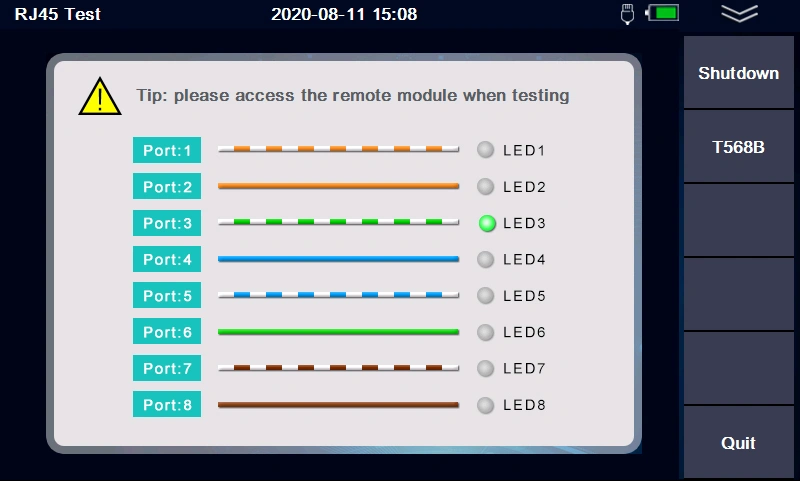

8) Ethernet Cable Testing
9) LED Light

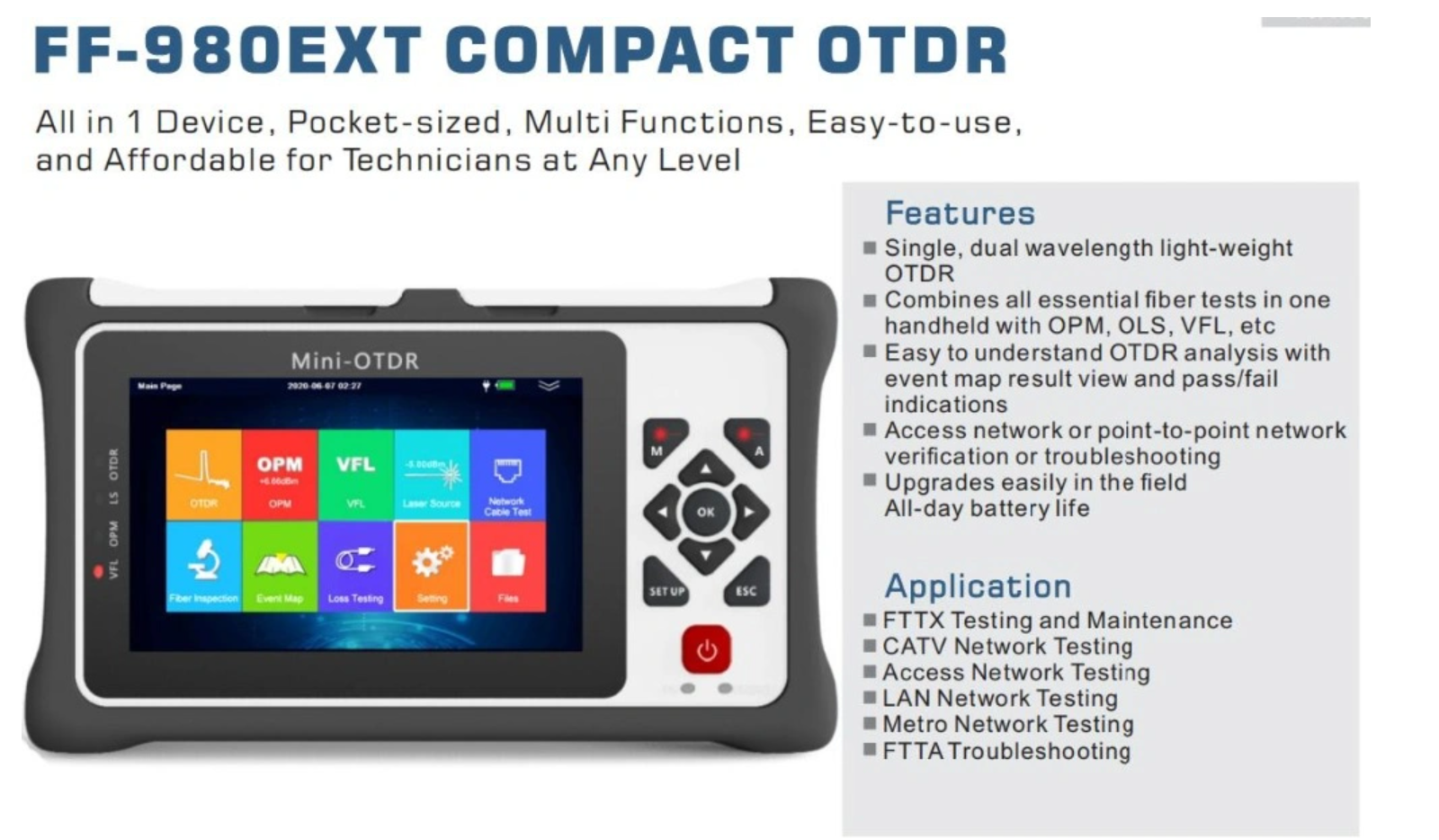

Features
1) Single, dual wavelength light-weight OTDR
2) Combines all essential fiber tests in one handheld with OPM, OLS, VFL, etc
3) Easy to understand OTDR analysis with event map result view and pass/fail indications
4) Access network or point-to-point network verification or troubleshooting
5) Upgrades easily in the field
6) All-day battery life
Configuration
| Model | 980EXT-D22 | 980EXT-D24 | 980EXT-D26 | 980EXT-D20SF |
| Wavelength | 1310nm & 1550nm | 1310nm & 1550nm | 1310 & 1550nm | 1550nm |
| Dynamic Range | 22/20dB | 24/22dB | 26/24dB | 20dB |
| Testing Range | 3m to 70km | 3m to 80km | 3m to 100km | 3m to 70km |
| OTDR | √ | √ | √ | √ |
| Power Meter | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ |
| Visual Fault Locator | √ | √ | √ | √ |
| Insertion Loss Testing | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ |
| Event Map | x | √ | √ | x |
| RJ45 Cable Testing | x | √ | √ | x |
| Microscope | x | √ | √ | x |
| Active Fiber Testing | x | x | x | √ |

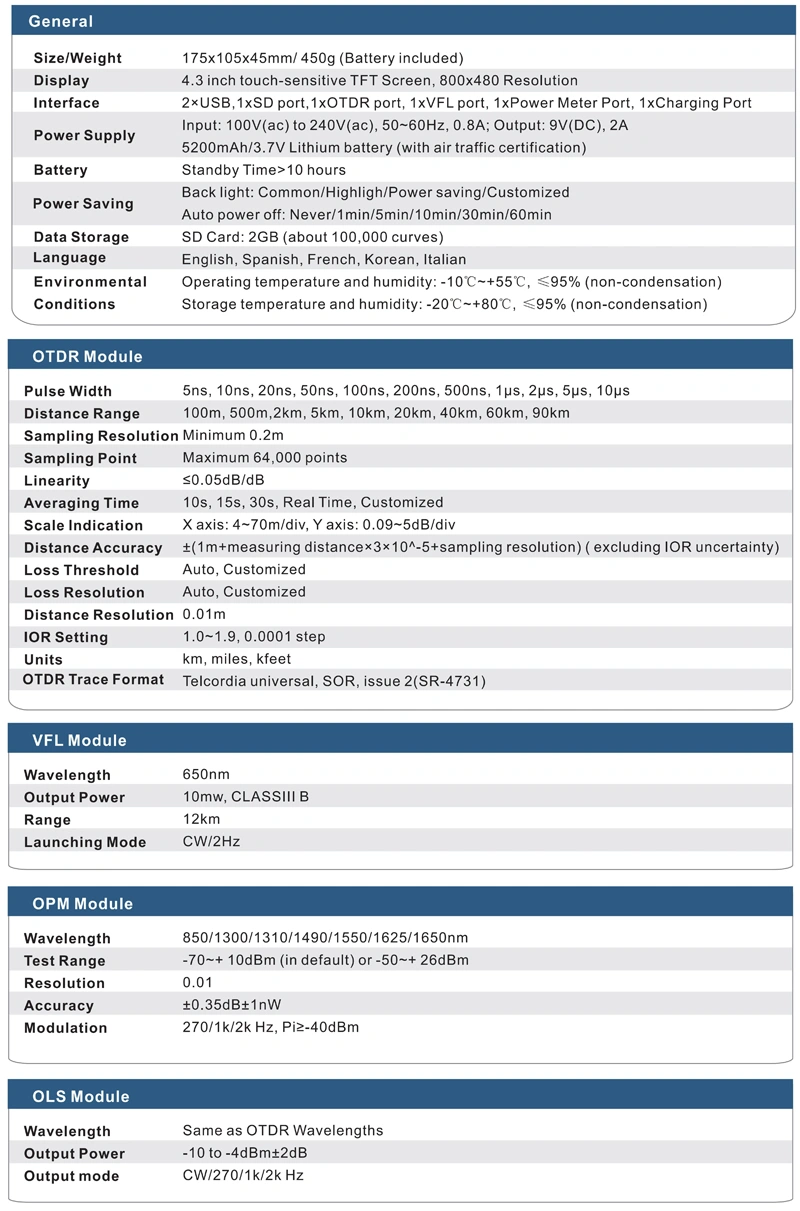

Specification

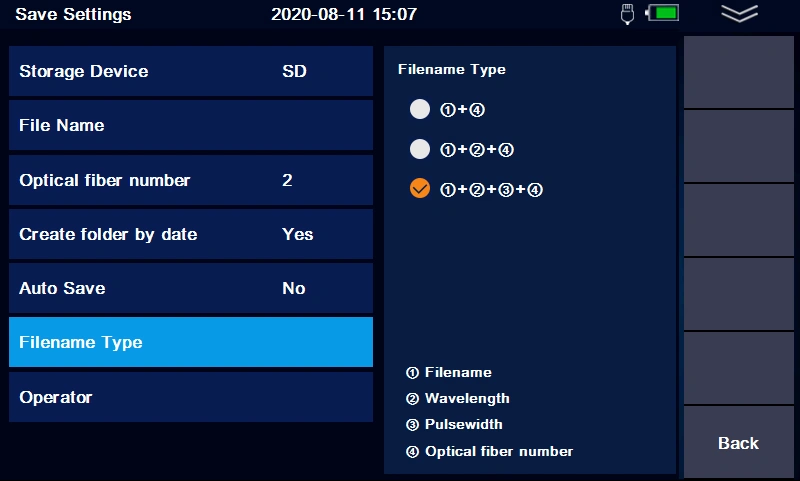

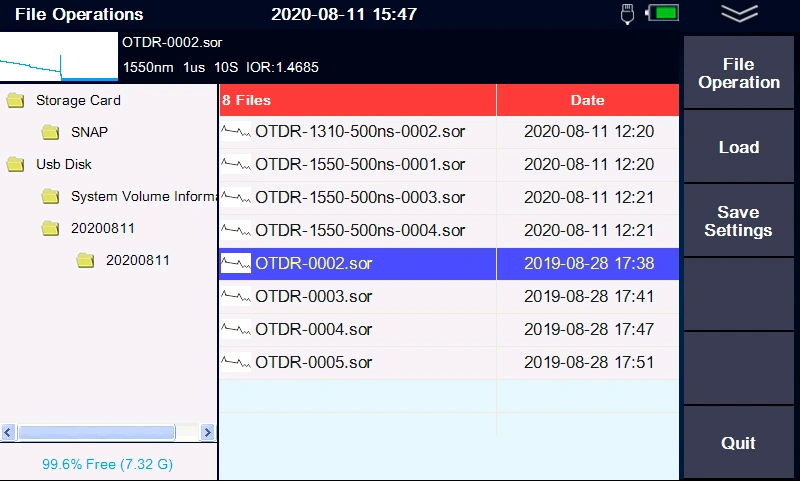

| General | |
| Size/Weight | 175x105x45mm/ 450g (Battery included) |
| Display | 4.3 inch touch-sensitive TFT Screen, 800×480 Resolution |
| Interface | 2×USB,1xSD port,1xOTDR port, 1xVFL port, 1xPower Meter Port, 1xCharging Port |
| Power Supply | Input: 100V(ac) to 240V(ac), 50~60Hz, 0.8A; Output: 9V(DC), 2A 5200mAh/3.7V Lithium battery (with air traffic certification) |
| Battery | Standby Time>10 hours |
| Power Saving | Back light: Common/Highligh/Power saving/Customized Auto power off: Never/1min/5min/10min/30min/60min |
| Data Storage | SD Card: 2GB (about 100,000 curves) |

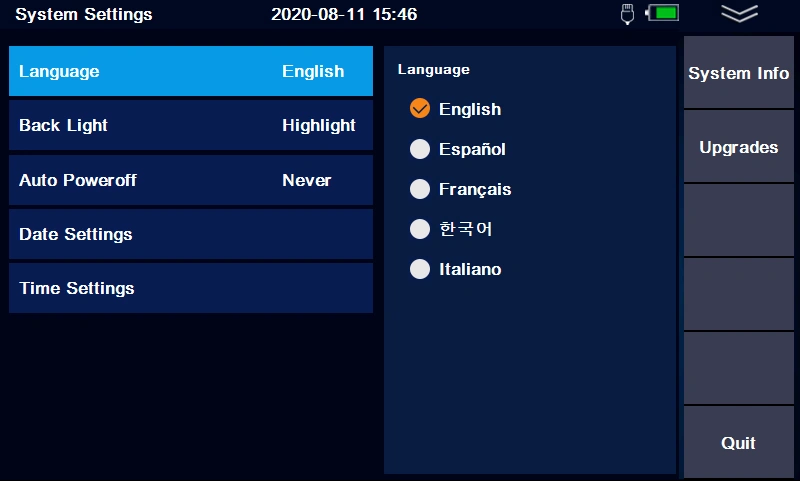

| Language | English, Spanish, French, Korean, Italian, Portugal, Russian |
| Operating temperature and humidity | -10℃~+55℃, ≤95% (non-condensation) |
| Storage temperature and humidity | -20℃~+80℃, ≤95% (non-condensation) |

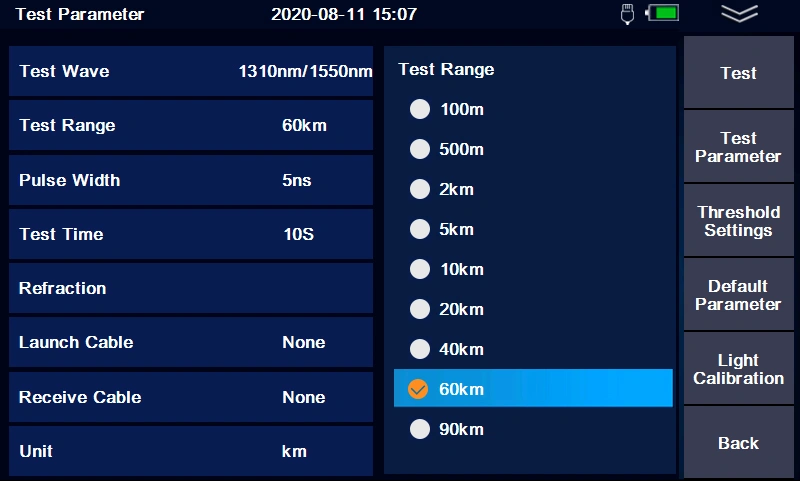

| OTDR Module | |
| Pulse Width | 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs |
| Distance Range | 100m, 500m,2km, 5km, 10km, 20km, 40km, 60km, 90km |
| Sampling Resolution | Minimum 0.2m |
| Sampling Point | Maximum 64,000 points |
| Linearity | ≤0.05dB/dB |
| Averaging Time | 10s, 15s, 30s, Real Time, Customized |
| Scale Indication | X axis: 4~70m/div, Y axis: 0.09~5dB/div |
| Distance Accuracy | ±(1m+measuring distance×3×10^-5+sampling resolution) ( excluding IOR uncertainty) |
| Loss Threshold | Auto, Customized |
| Loss Resolution | Auto, Customized |
| Distance Resolution | 0.01m |
| IOR Setting | 1.0~1.9, 0.0001 step |
| Units | km, miles, kfeet |

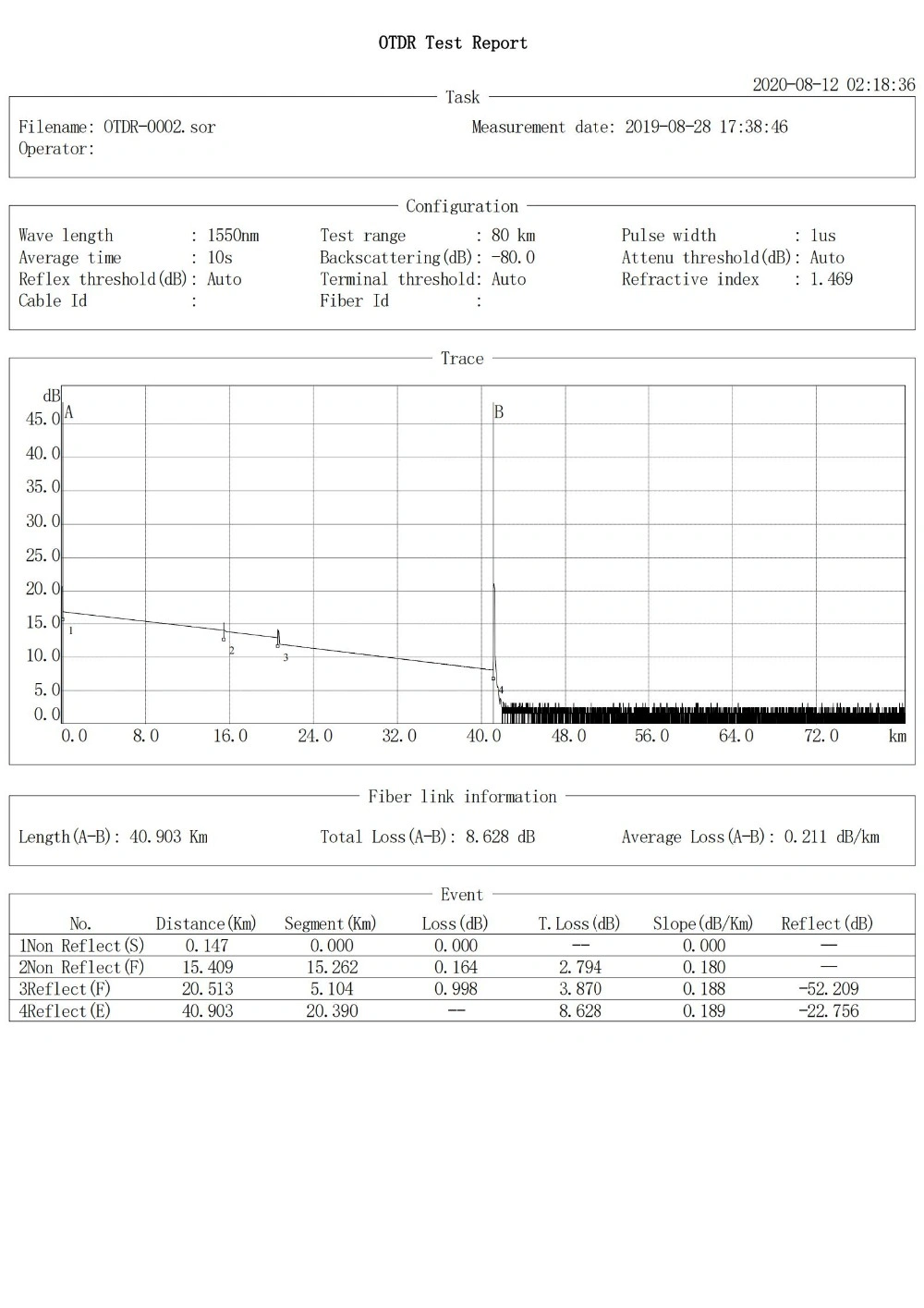

| OTDR Trace Format | Telcordia universal, SOR, issue 2(SR-4731) |

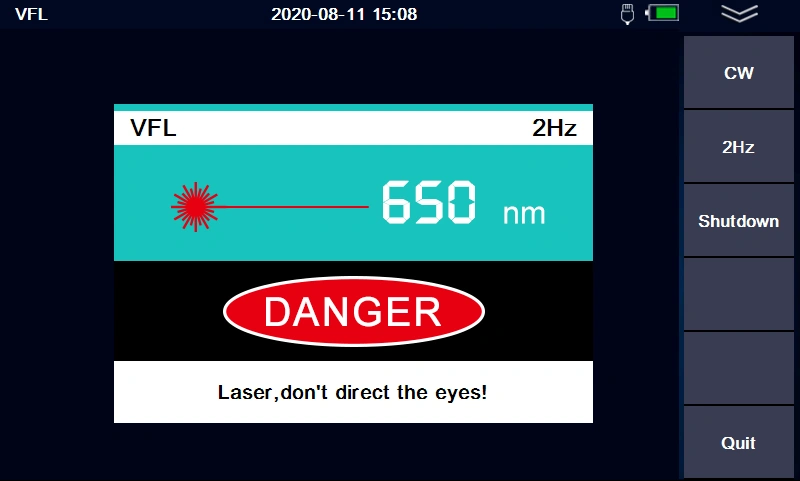

| VFL Module | |
| Wavelength | 650nm |
| Output Power | 10mw, CLASSIII B |
| Range | 12km |
| Launching Mode | CW/2Hz |
| OPM Module | |
| Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test Range | -70~+ 10dBm (in default) or -50~+ 26dBm |
| Resolution | 0.01 |
| Accuracy | ±0.35dB±1nW |
| Modulation | 270/1k/2k Hz, Pi≥-40dBm |

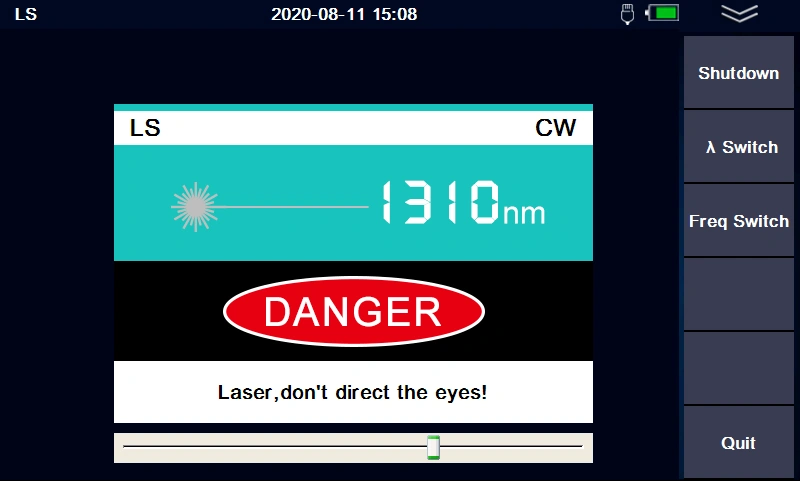

| OLS Module | |
| Wavelength | Same as OTDR Wavelengths |
| Output Power | -10 to -4dBm±2dB |
| Output mode | CW/270/1k/2k Hz |
Download
Download 980EXT OTDR Datasheet
Video Demo
Customization
FirstFiber Technologies offers two types of customization services for you to choose from, Light Customization and Deep Customization. You can refer to the details here.
If you would like a Light Customization based on the 980EXT OTDR, please provide requirements according to the instructions below. If you prefer a Deep Customization, please contact our sales team to discuss the details.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 800×480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
Light customization (Model, LOGO, and Language) are 100% FREE OF CHARGE, but MoQ 20
Packaging & Shipping
Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| 980EXT | 10 | 11.5 KG | 13.5 KG | 30x35x50cm |
Non-Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| 980TEK | 1 | 1.15 KG | 1.5 KG | Carton #3 |
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
