Description

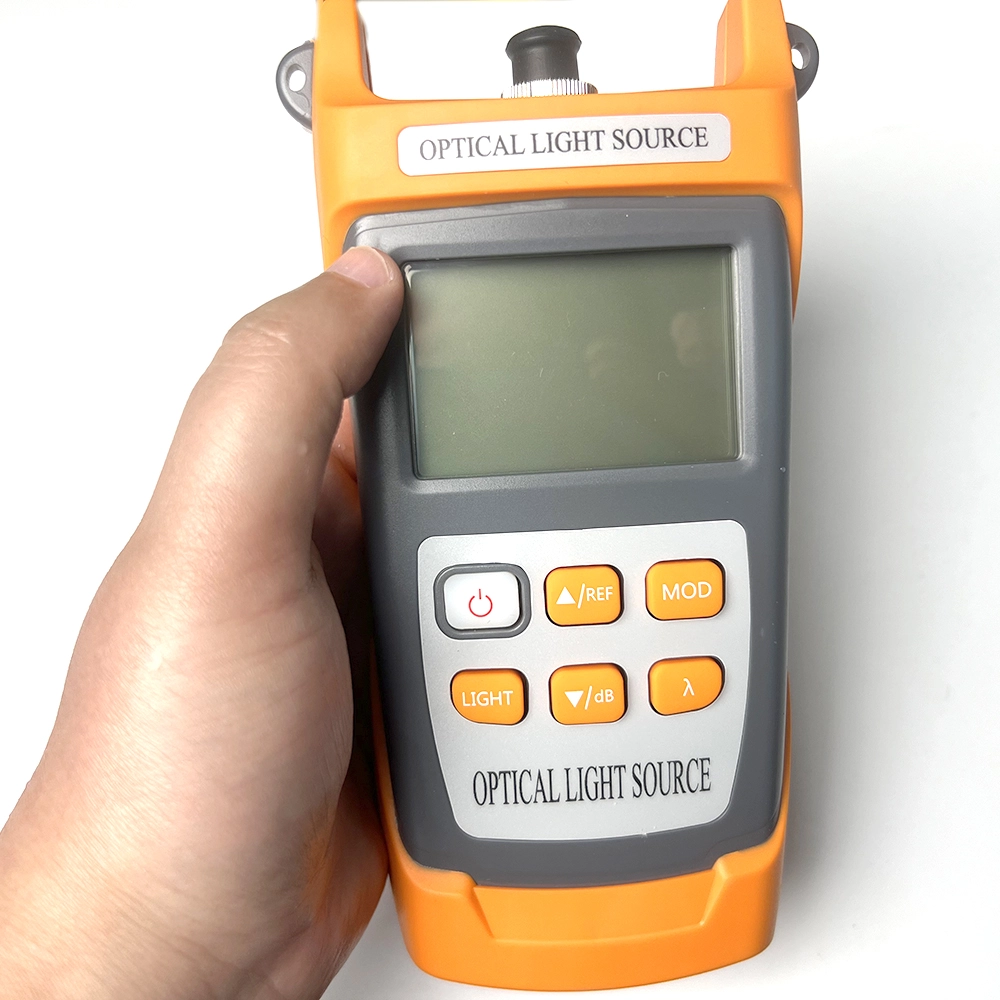

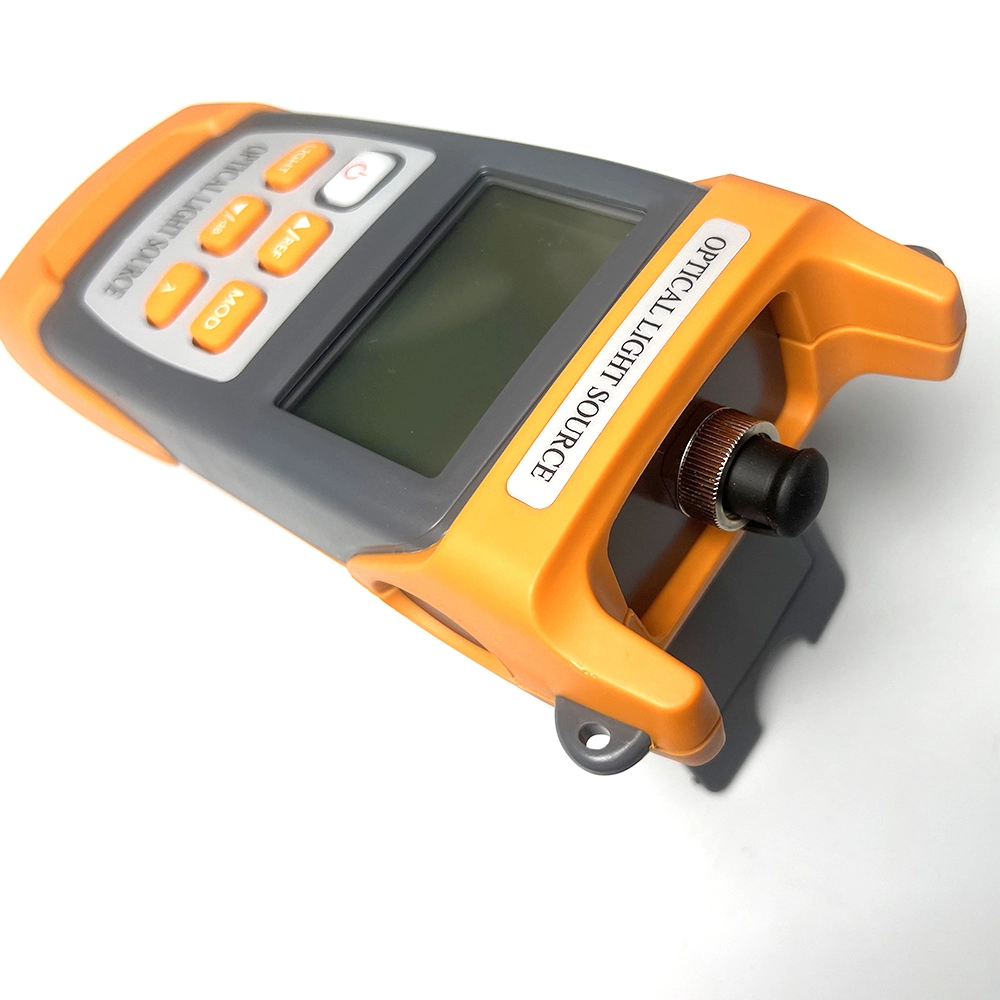

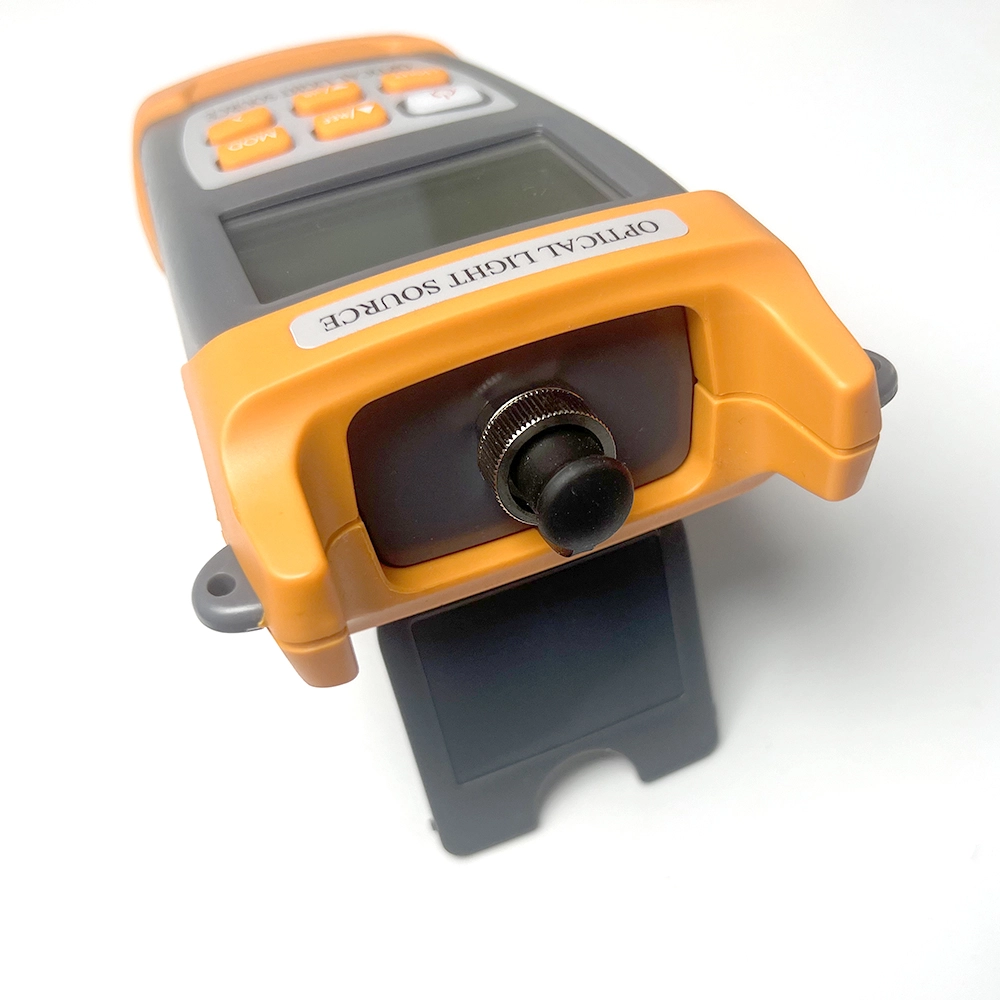

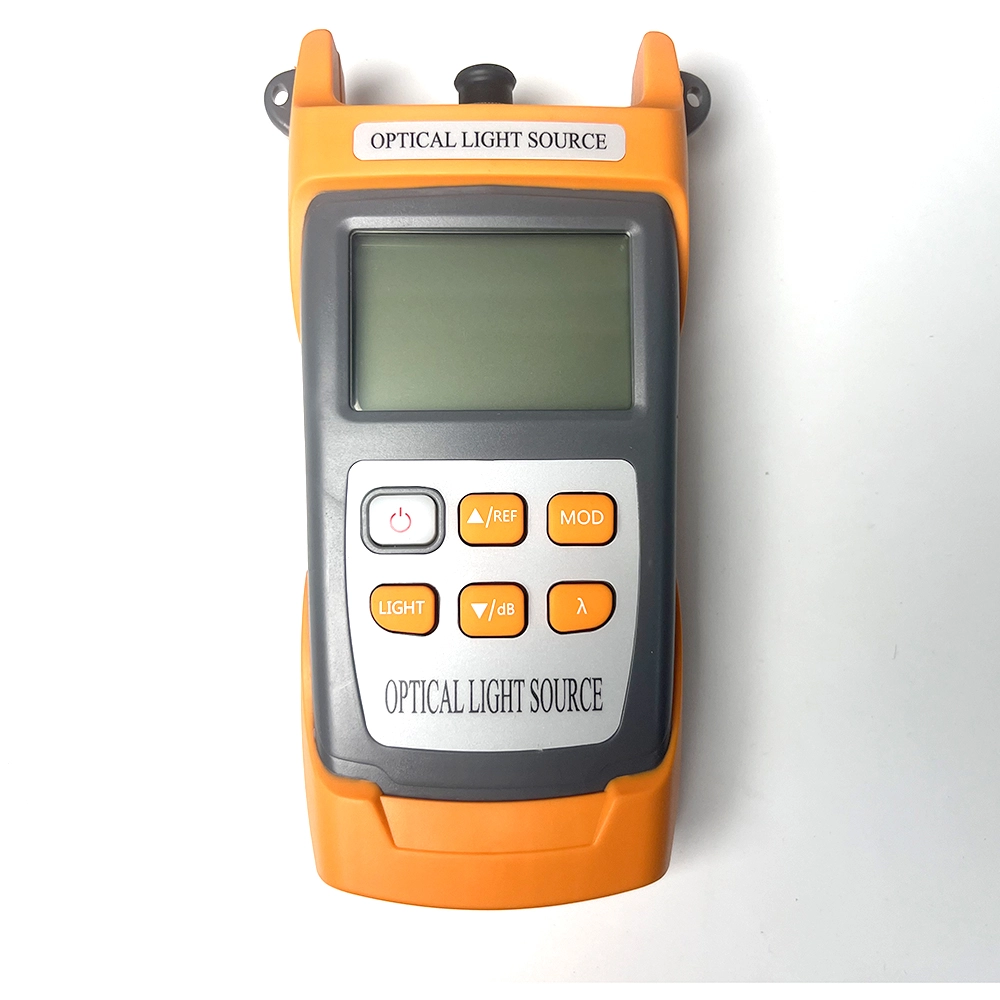

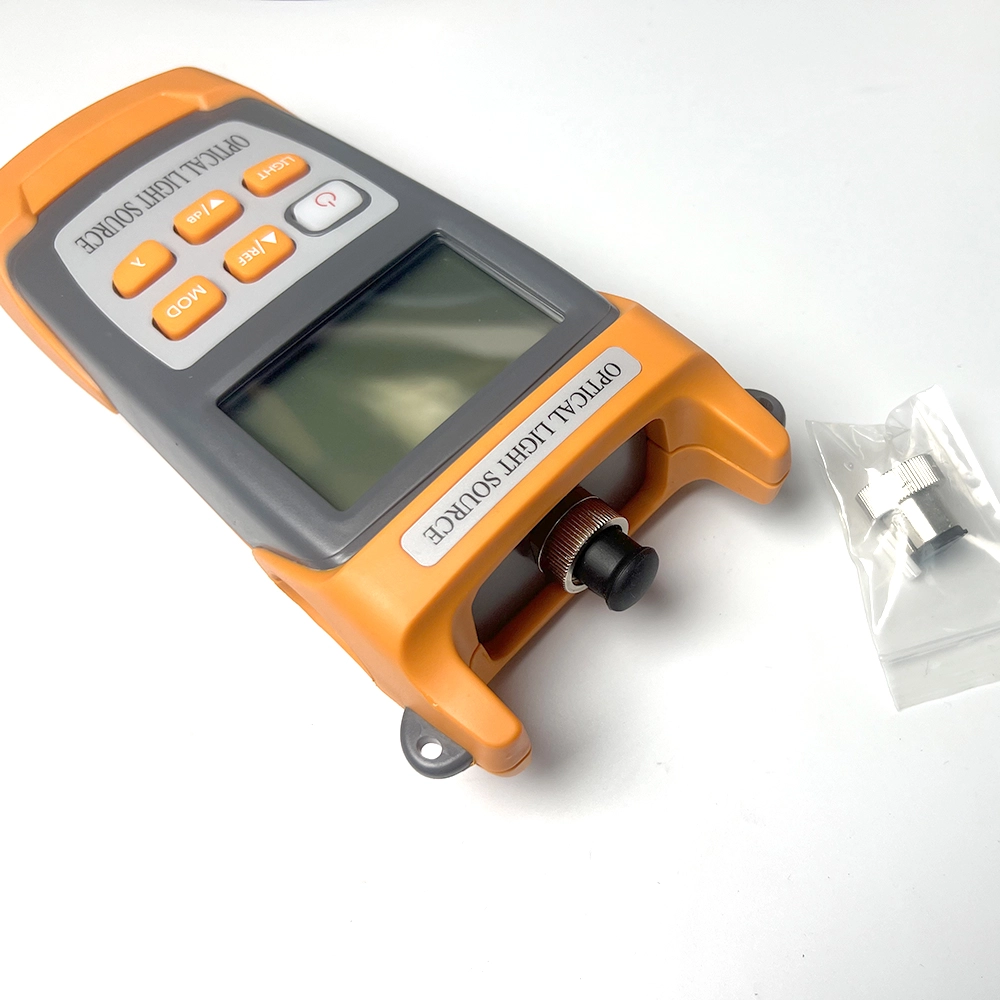

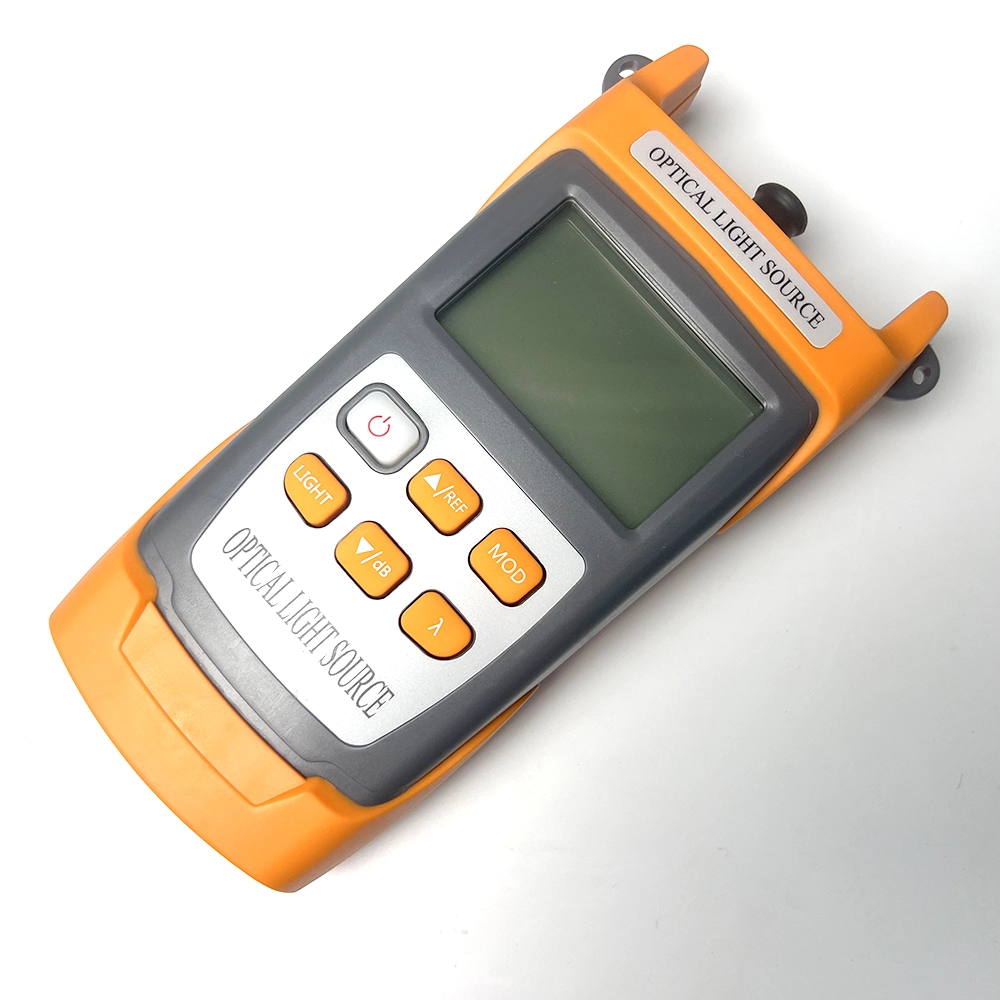

Handheld Optical Laser Source is mainly for fiber optic network site installation, acceptance and maintenance of fiber optic cable, optical passive components
of the transmission and loss measurement needs of the new design and development of products.
The light source can provide 1 to 4 wavelengths of stable output for customers choice.
Features
– Support CW and a variety of
modulation light output
– Output optical power adjustable,
Adjustment range 6dB, step
1dB(Optional)
– Support automatic shutdown
– Backlight inteligent control
| Model | FF-3115A | FF-3115B | FF-3115C | FF-3115D |
| Working wavelength | 1310/1550nm | 850/1300nm | 1310/1490/15550nm | 850/1300/1310/1550nm |
| Fiber Type | 9/125nm single mode fiber | 62.5/125nm multi mode fiber | 9/125nm single mode fiber | both singmode fiber and multi mode fiber |
| Laser Type | FP-LD | |||
| Output Power | <=-5dBm | |||
| Stability | +/-0.02dB/8h | |||
| Modulation | CW/270Hz/1000Hz/2000Hz | |||
| Output power adjustable Range | 0 to 6dB, 1dB step | |||
| Connector | FC/SC/ST | |||
| Power | 3* AA batteries | |||
| Auto power off | 10 mins | |||
| Continuous working time | >72 hours | |||
| Working Temperature | -10 to +50℃ | |||
| Storage Temperature | -40 to +70℃ | |||
| Size | 186x100x50mm | |||
| Weight | 150g | |||

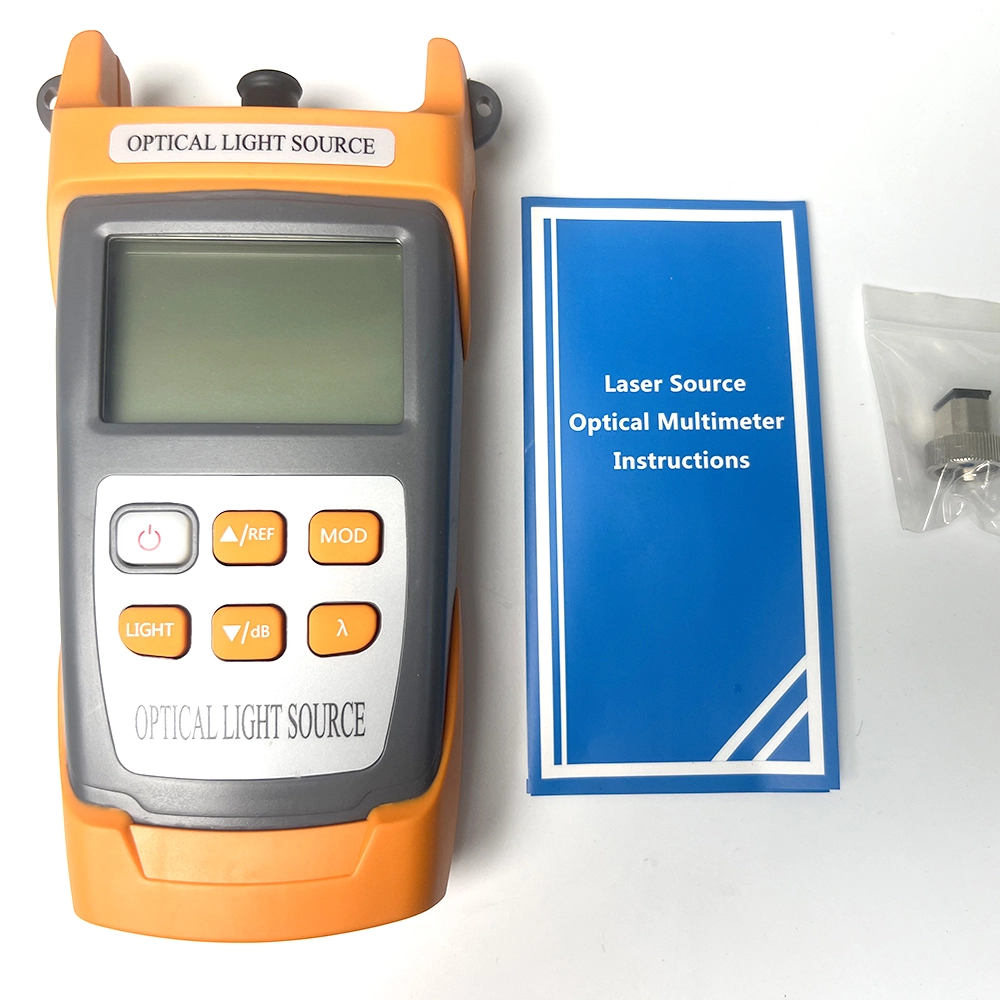

The Kit Includes,
– FF-3115 Optical Light Source,
– 3pcs of 1.5V batteries or Lithium battery,
– User Manual,
– Cotton swabs
– Carrying bag
