980RTC HANDY MINI OTDR

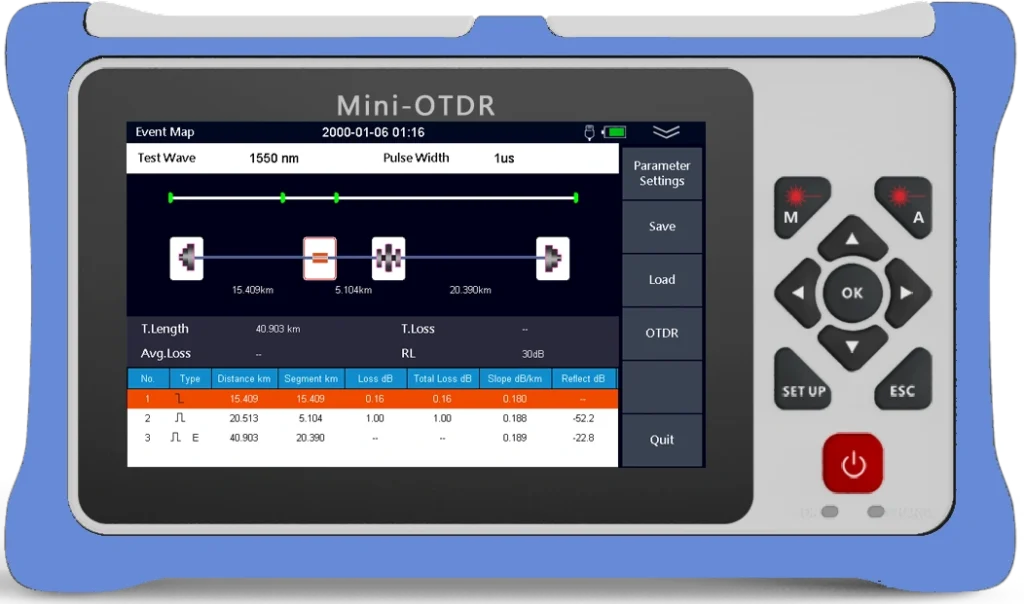

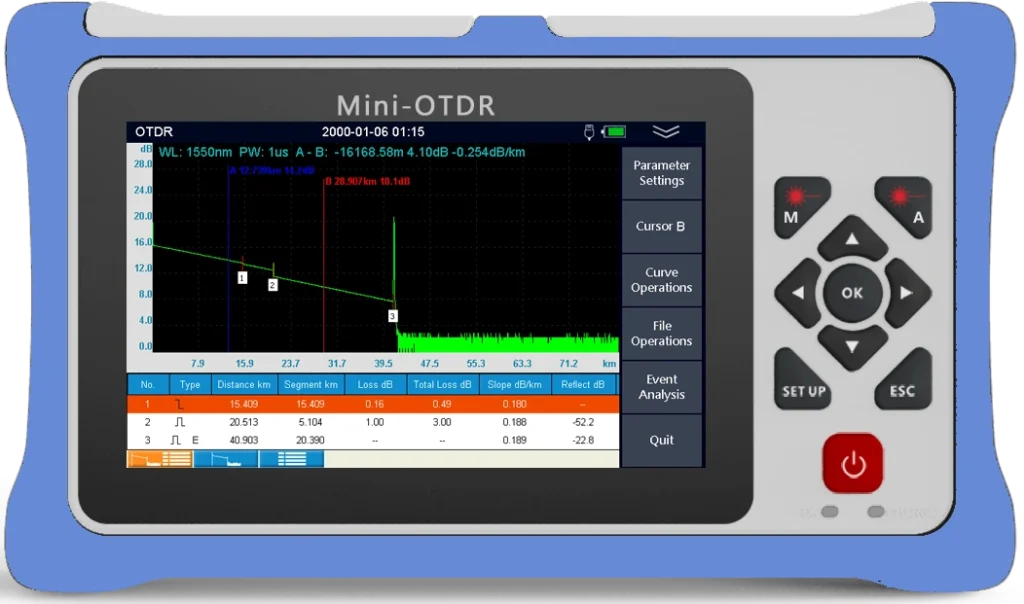

Performing routine maintenance and troubleshooting on active FTTx subscriber lines requires reliable out-of-band reflectometry to avoid disrupting live traffic. We deployed the 980RTC-A26 (1625 nm, 26 dB dynamic range) and 980RTC-B26 (1650 nm, 26 dB dynamic range) models across our field teams, as both feature specialized internal filters designed specifically for in-service testing while active 1490 nm, 1550 nm, and 1610 nm signals are present on the line. The instrument accurately evaluates link loss and detects localized faults across distances extending up to 90 km. Its Event Map feature translates complex backscatter traces into simple graphical event icons with clear pass/fail evaluations, allowing technicians of all skill levels to pinpoint issues quickly without manual curve analysis.

Field dispatches often require technicians to handle both optical link audits and premises Ethernet copper cabling. The 980RTC solves this bottleneck by combining nine essential diagnostic functions into a single pocket-sized chassis: an OTDR, Optical Power Meter, Optical Light Source, Visual Fault Locator, Insertion Loss Tester, Event Map visualizer, LED work light, and complete RJ45 cable sequence and digital wire tracking modules. At an accessible reference price of $350, it offers an outstanding return on investment for enterprise fleet deployments. The all-day battery life ensures continuous operation throughout long dispatches, and the turnkey package arrives complete with FC/SC connectors, USB charging gear, a protective carrying bag, and OTDRviewer PC software for rapid report generation.

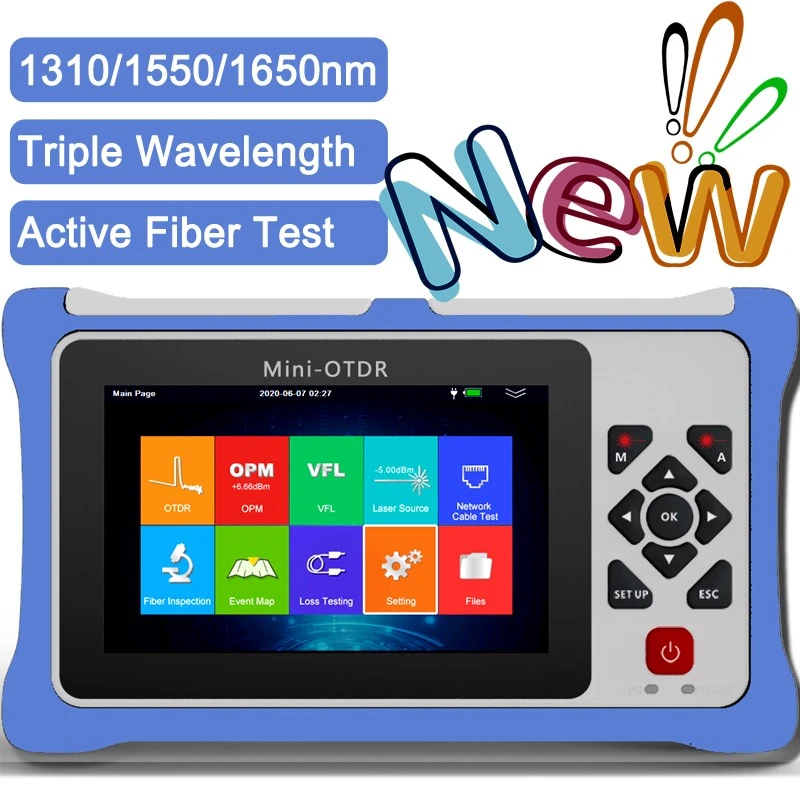

Outfitting regional contractor teams with standardized, branded test equipment used to involve costly customization charges. FirstFiber Technologies eliminated those expenses by offering free Light Customization on the 980RTC series for orders meeting a low 20-unit MOQ. We customized our fleet with proprietary model numbers, company logos, custom 800×480 16-bit BMP boot screens, and localized UI menu languages. The platform offers remarkable wavelength versatility, ranging from the triple-wavelength 980RTC-T3 (1310/1550/1650 nm) for PON audits to the 980RTC-M24 (850/1300 nm) for enterprise multimode LAN testing. It is a versatile, cost-effective reflectometer backed by comprehensive calibration certification.
