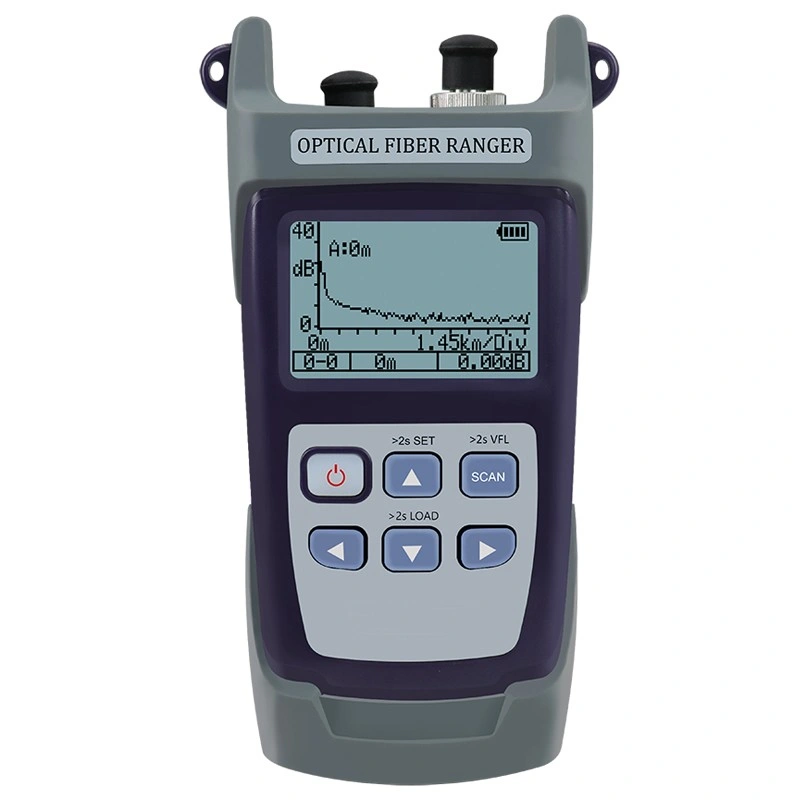

FF-3304E Optical Fiber Ranger

Equipping our first-responder line crews with the FF-3304E has dramatically accelerated our fiber fault isolation times. Operating at 1550 nm on 9/125 um single-mode fiber, it utilizes core OTDR backscatter algorithms and automatic pulse width control to deliver precise distance-to-fault measurements without requiring manual parameter configuration. The unit accurately calculates reflection events up to 60 km (for 1 dB events) and non-reflection events up to 20 km across its 18 dB dynamic range. For field technicians who need rapid break-point verification without carrying a full-sized graphic OTDR mainframe, this instrument provides an ideal balance of analytical precision and operational simplicity.

What sets the FF-3304E apart in practical field operations is its integrated two-stage fault location strategy. While the main 1550 nm InGaAs optical ranger pinpoints distant fiber breaks beyond the 3 m event dead zone and 15 m attenuation dead zone, the built-in 650 nm (2 mW output) Visual Fault Locator allows technicians to immediately trace macroscopic bends and near-end connector damage right inside splice trays and distribution cabinets. Weighing only 280 grams with a dust- and shock-proof rubberized casing, it withstands demanding manhole and trench environments while maintaining measurement repeatability.

From a fleet management perspective, the FF-3304E offers an outstanding return on investment for large-scale last-mile maintenance teams. Powered by three standard AA batteries, the instrument yields up to 5,000 individual measurements, completely eliminating field downtime caused by depleted internal lithium packs or missing proprietary chargers. The FC/PC optical port connects securely to standard test jumpers, and the high-sensitivity InGaAs detector provides consistent distance readouts across varying ambient temperatures (-10 to +40 °C). It serves as a rugged, highly reliable diagnostic tool that bridges the gap between basic visual fault locators and costly tier-2 certification devices.
