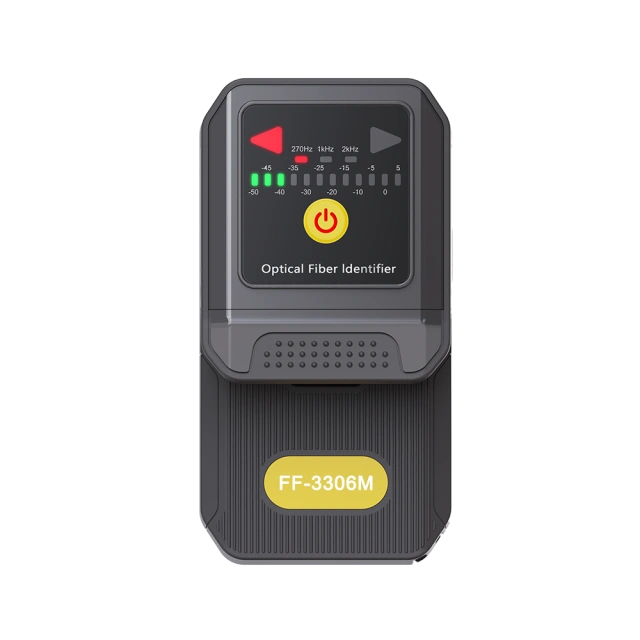

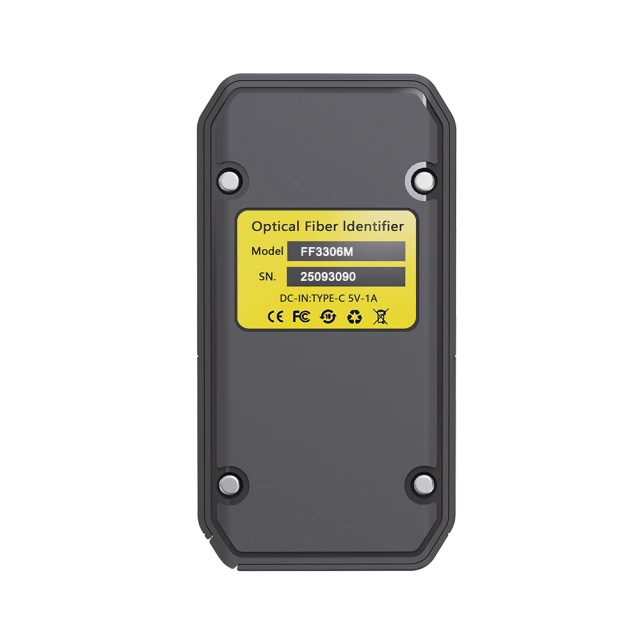

FF-3306M Optical Fiber Identifier Micro

During major DWDM and FTTH network audits, identifying specific live fibers in dense ODF frames without disrupting active traffic is a critical challenge. The FF-3306M Micro Identifier addresses this perfectly, utilizing dual 1mm InGaAs detectors to sense signal direction and estimate optical power across a wide 800 to 1700nm wavelength range. Its detection sensitivity down to -40 dBm allows our field engineers to trace active links cleanly, inducing a negligible macro-bend that keeps insertion loss under 1.0 dB typical. The universal head design accommodates everything from 0.25mm bare fiber and 0.9mm tight buffer to 2.0mm and 3.0mm jacketed cables without needing to swap out adapter heads. It has significantly reduced accidental link disconnects during routine maintenance.

Equipping our enterprise field crews with portable, reliable diagnostic tools is key to maintaining tight SLA times. The FF-3306M stands out for its pocket-sized dimensions (82 × 43 × 29 mm), allowing technicians to navigate tightly packed patch panels effortlessly. Beyond basic traffic direction, its ability to detect injected modulation frequencies (CW, 270Hz, 1kHz, 2kHz, and 3kHz) at power levels down to >-20 dBm makes end-to-end fiber tracing straightforward. The internal 3.7V 500mAh rechargeable Lithium battery easily powers through 24 hours of continuous field operations. At a baseline reference point of $25 USD, it delivers exceptional technical utility for B2B deployment.

We evaluated the FF-3306M for our outside plant (OSP) maintenance teams operating in unconditioned environments ranging from -10°C to +50°C. The unit showed zero drift or false traffic direction indications across ambient temperature swings. The LED indicators clearly signal traffic flow direction and tone modulation, giving our line techs immediate visual confirmation before executing splices or cutovers. Whether clamping onto single-mode or multimode links, the mechanical clamp provides consistent bending force without damaging delicate tight-buffered fibers. It is an exceptionally dependable diagnostic tool for any telecom operator prioritizing network uptime.
