Description

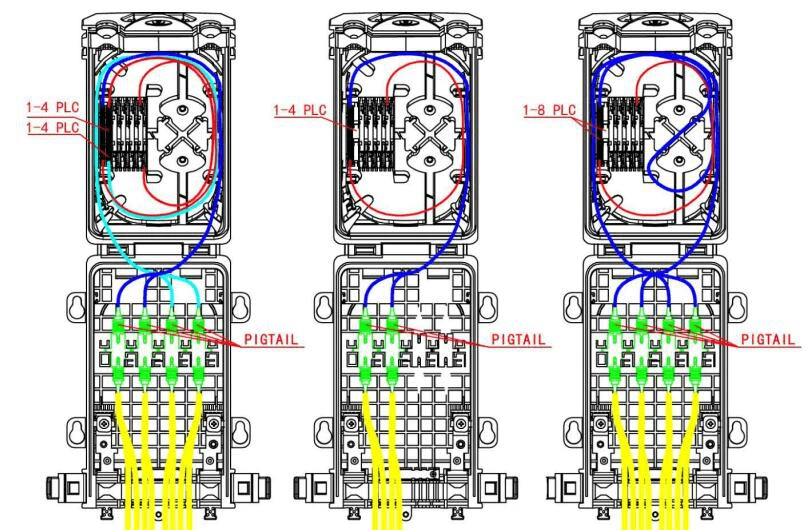

FF-FTB8J Fiber Drop Closure for Fiber Access Terminal is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FF-FTB8J Fiber Drop Closure for Fiber Access Terminal has 2 main cable ports and 8 drop cable ports. The closure accommodates up to 12 fusion splices (or 8 mechanical splices), two PLC splitters and 8 SC adapters. Sealing is achieved via built-in gel technology,which can make sealing be extremely convenient re-entry and re-sealing.
Features
- Gel sealing for excellent sealing and re-sealing performance
- High-quality engineering material of PP with good mechanical strength, sturdiness, and durability
- Make the Clamping for feeder cable and drop cable, fiber splicing, fixation, storage and distribution in one box
Standards
- UL 94, Test for Flammability of Plastic Materials for Parts in Devices and Appliances
- YD/T2150-2010 Optical fiber cable distribution box
Specification
| Max. Capacity | SC: 8 fibers |
| Max. Inlet Cable Diameter | 8~16mm |
| Inlet Cable Number | 2pcs |
| Drop Cable Diameter | 3mm round cable, 2×3m drop cable |
| Outlet Cable Number | 8pcs |
| Protection Grade | IP67 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |

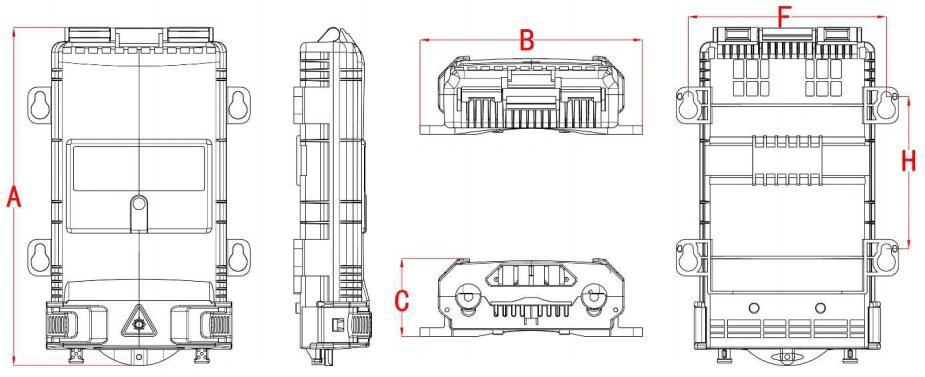

| Dimension (A*B*C) | 220(H)*153(W)*52(D)mm |
| Working Temperature | -40°C~+65°C |
| Relative Humidity | 0%~95% (+30°C) |
| Air Pressure | 70~106KPa |
Packing:
- Packing: carton
- Storage temperature: -20°C~+65°C
- Storage humidity: 0%~95% (+30°C), no corrosive gases around
- Transportation: avoid collisions, falls, rain and snow poured directly attack and daylight exposure.

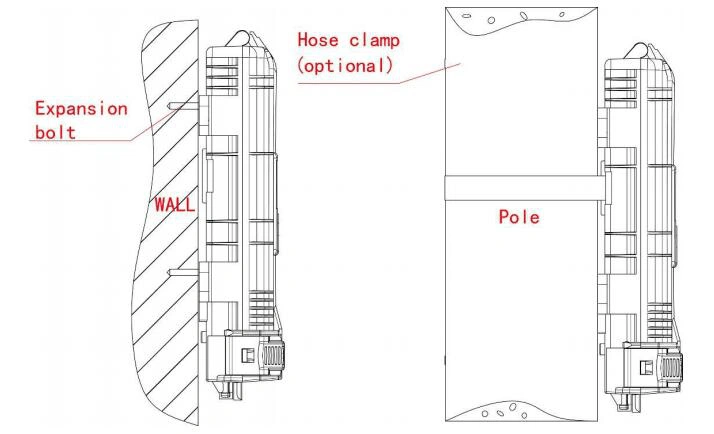

Installation:
- Wall mounting:
Drill 4 holes into the wall on the Wall Mounting Size (F*H): 136*104, place the expansion bolt
Φ7.5*40, place the box to match with the holes and use bolts to fasten it.
- Pole mounting:
Fix 1 set of the pole ring to the telecom pole, as below.
FAQ
Q1: What is the port capacity and splice capability of the FF-FTB8J Fiber Drop Closure?
A: The FF-FTB8J features 2 main cable ports (8–16 mm) and 8 drop cable ports. It accommodates up to 12 fusion splices (or 8 mechanical splices), 8 SC adapters, and two PLC splitters.
Q2: What sealing technology is used, and what is its protection rating?
A: The closure uses built-in gel sealing technology for easy re-entry and re-sealing, offering an IP67 protection grade for indoor and outdoor environments.
Q3: What are the material properties and physical dimensions of the FF-FTB8J?
A: Constructed from high-quality PP engineering plastic for sturdy mechanical strength, the enclosure measures 220 (H) × 153 (W) × 52 (D) mm.
Q4: What installation options and working conditions are supported?
A: It supports both wall mounting and pole mounting (pole ring optional) and operates reliably in temperatures ranging from -40°C to +65°C.
Q5: What is the reference price, and how can I request a quote or product demo?
A: The reference price is $25. You can place an inquiry by clicking Add to Quote or Request a Demo directly on the product page.
