Description

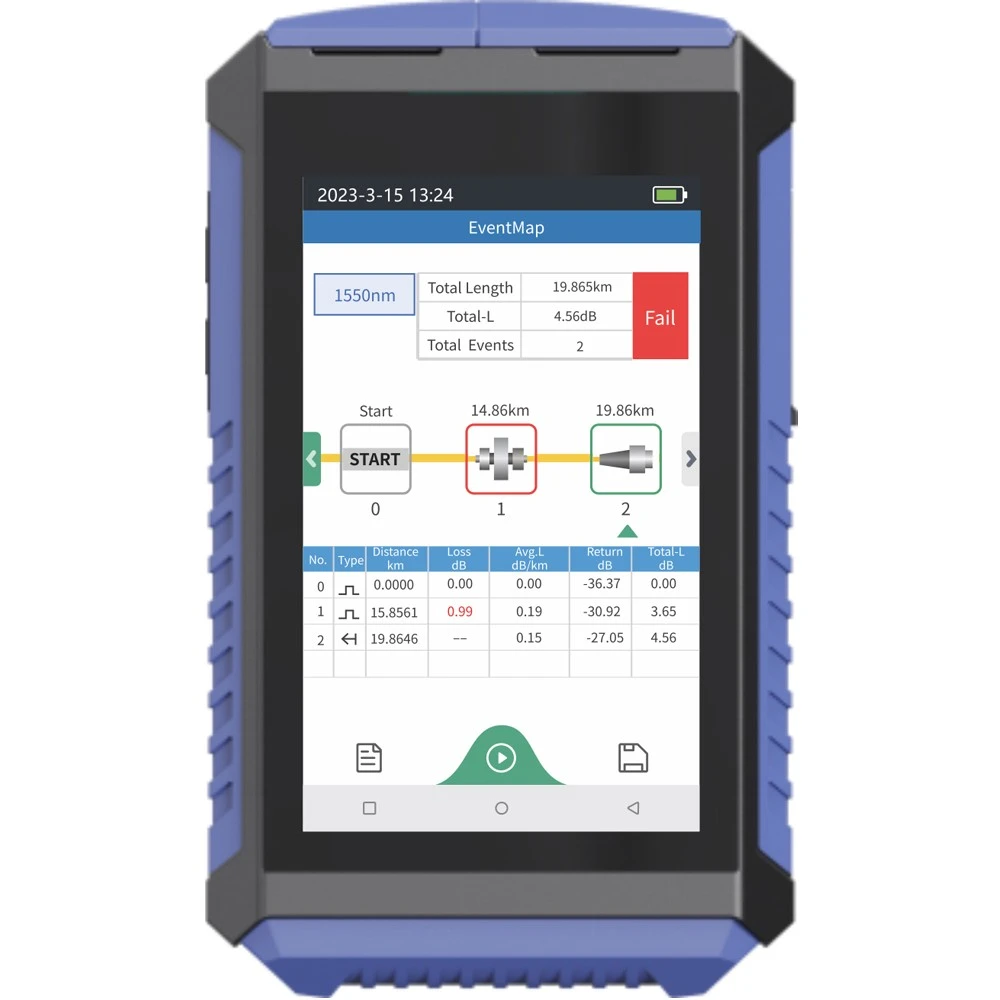

980TEK OTDR
High Precision, Android UI, Multi Touch,and Ultra-stable for any Cable Testing Situations
* Bluetooth function is optional
Note: -P24(1610nm) can test the fiber with1310/1490/1550nm signal in (power <0dBm)
-A24(1625nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <0dBm)
-B24(1650nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <5dBm)
9-in-1 Device

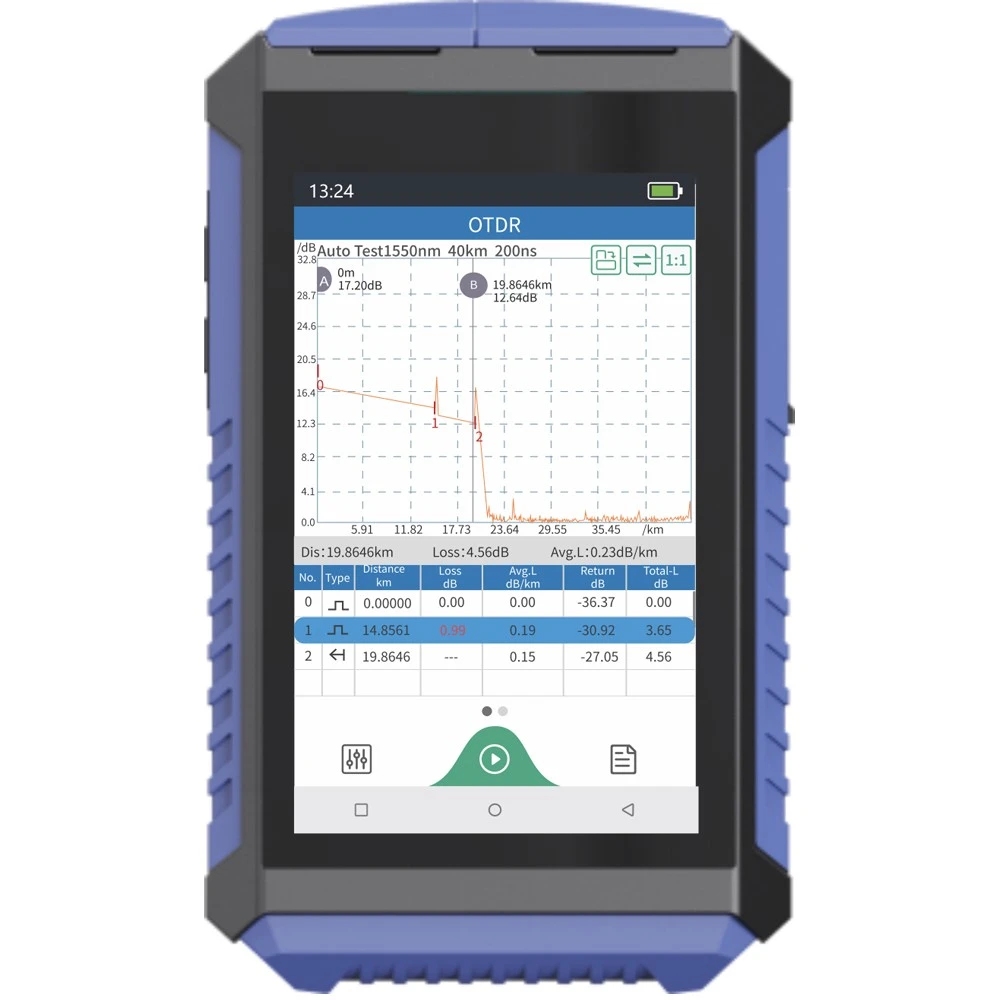

– OTDR

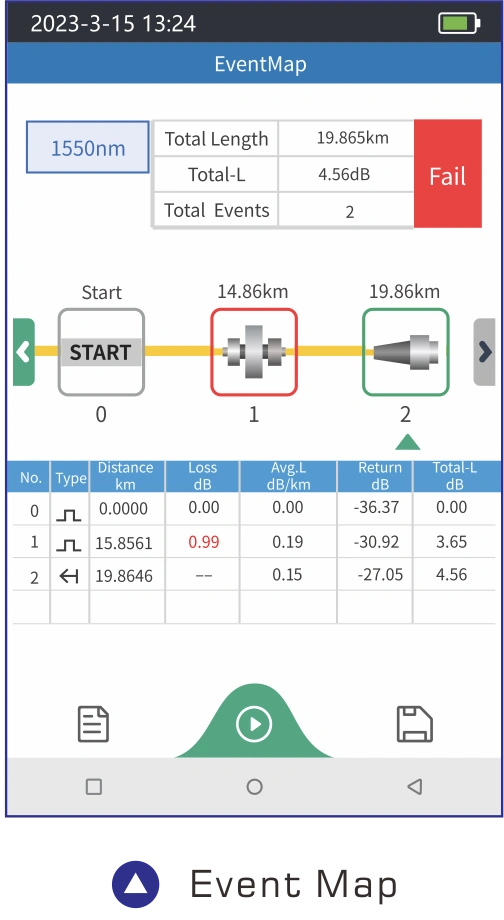

– Event Map

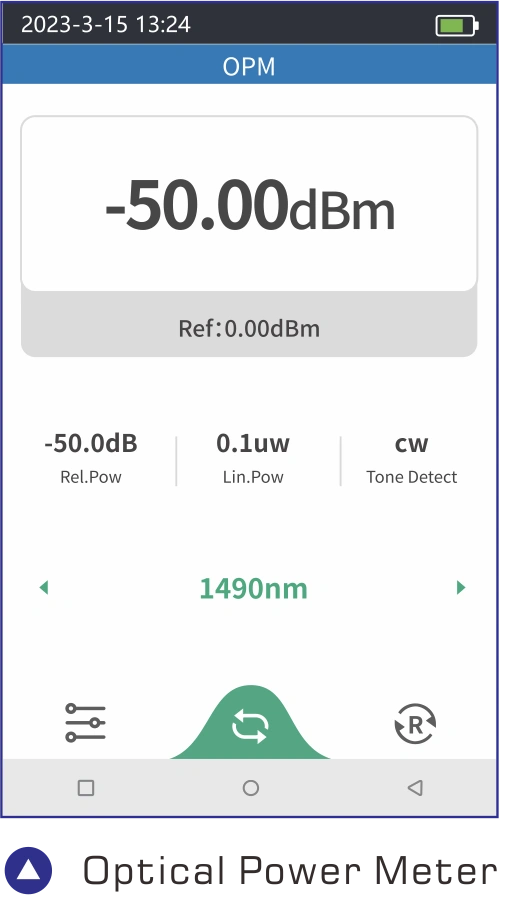

– Optical Power Meter

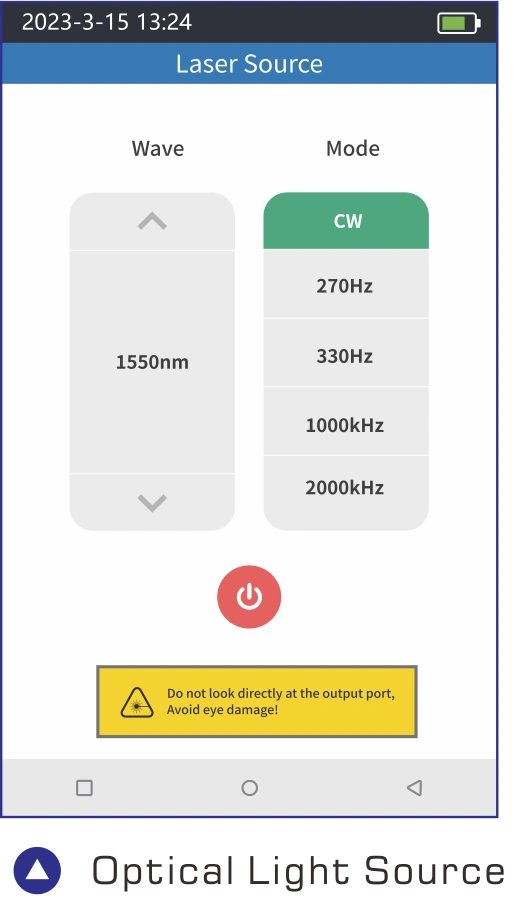

– Optical Light Source

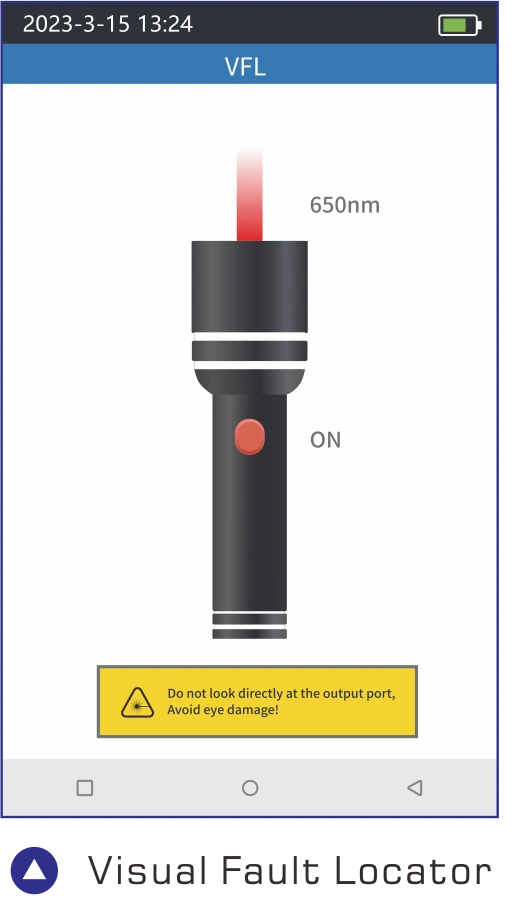

– Visual Fault Locator
– RJ45 Cable Tracking
– RJ45 Cable Sequence
– LED Light
– Bluetooth
The Kit Includes:
> OTDR, User Manual
> TF Card
> OTDRviewer Software
> Power Charging Adapter
> USB Cord
> Carrying Case
> Certificate of Calibrate
Specifications
| Model | 980TEK-D26 | 980TEK-P24 | 980TEK-A24 | 980TEK-B24 |
| Wavelength | 1310/1550nm | 1610nm | 1625nm | 1650nm |
| Dynamic Range | 26/24dB | 24dB | 24dB | 24dB |
| Testing Range | 3m to 100km | 3m to 100km | 3m to 100km | 3m to 100km |
| OTDR | √ | √ | √ | √ |
| Event Map | √ | √ | √ | √ |
| Power Meter | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ |
| Visual Fault Locator | √ | √ | √ | √ |
| LED Light | √ | √ | √ | √ |
| RJ45 Cable Sequence | √ | √ | √ | √ |
| RJ45 Cable Tracking | √ | √ | √ | √ |
| Bluetooth* | √ | √ | √ | √ |
| 1490nm Online | x | √ | √ | √ |
| 1550nm Online | x | √ | √ | √ |
| 1610nm Online | x | x | √ | √ |
* Bluetooth function is optional
Note: -P24(1610nm) can test the fiber with1310/1490/1550nm signal in (power <0dBm)
-A24(1625nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <0dBm)
-B24(1650nm) can test the fiber with 1310/1490/1550/1577nm signal in(power <5dBm)
Download
Customization
FirstFiber Technologies offers two types of customization services for you to choose from, Light Customization and Deep Customization. You can refer to the details here.
If you would like a Light Customization based on the 980TEK OTDR, please provide requirements according to the instructions below. If you prefer a Deep Customization, please contact our sales team to discuss the details.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 320×480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
Light customization (Model, LOGO, and Language) are 100% FREE OF CHARGE, but MoQ 20
Packaging & Shipping
Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| 980TEK | 10 | 8.5 KG | 10 KG | 53x23x26cm |
Non-Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| 980TEK | 1 | 0.85 KG | 1 KG | 23x13x16cm |
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
