Description

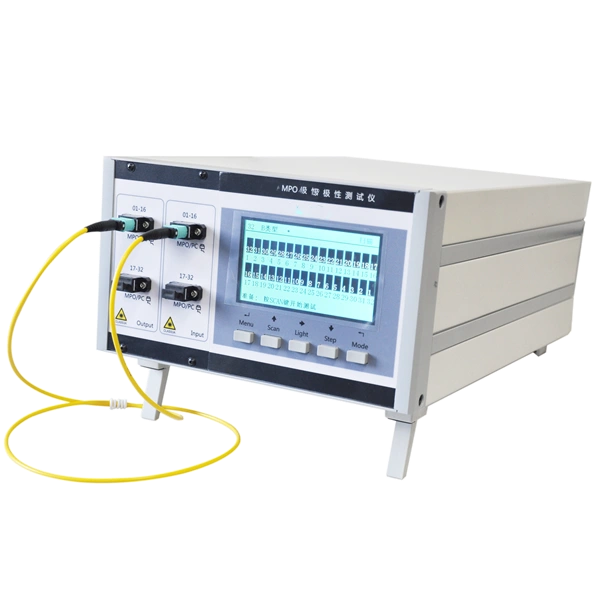

FF-8204 polarity instrument is an intelligent product,which is designed for polarity judgment and on-off analysis in MPO cable production. Through the one-button automatically scanning operation, the state of cable on and off, polarity (wire sequence) state, alarm and error analysis can be quickly indicated. FF-8204 provides a fast, accurate and highly efficient solution for MPO cable production, inspection of semi-finished product and finished product.
Features
- Compatible with 12-core,24-core,16-core,32-core,48-cores and other special core testing,
- Compatible with SM 9/125,MM 50/125, MM 62.5/125 fiber core.
- Support for user-defined polarity setting.
- Support for study mode and error alarm
- Support for error polarity analysis
- Support for replacement of MPO connector vulnerable parts
- Support for USB，RS232，and upper monitor application
FAQ
Q1: What is the main function and application of the FF-8204 MPO Polarity Instrument?
A: The FF-8204 is an intelligent bench-top tester engineered for automated polarity judgment, line sequence validation, and continuity (on-off) analysis in MPO cable manufacturing. With a one-button automatic scan operation, it provides immediate feedback on wire sequence errors and cable continuity, delivering a high-efficiency quality control solution for semi-finished and finished MPO cable inspections.
Q2: What key testing features and diagnostic functions are built into the FF-8204?
A: Key features include:
- Automated One-Touch Scanning: Rapidly tests line continuity, wire sequence polarity, and fault analysis.
- Custom Polarity & Study Mode: Supports user-defined polarity settings, adaptive learning modes, and instant error alarms.
- Diagnostics & Field Maintenance: Delivers detailed error polarity analysis and allows simple replacement of wearable MPO connector components.
- PC Connectivity: Equipped with USB and RS232 communication interfaces for seamless integration with upper-monitor software applications.
Q3: Which optical fiber types and MPO core counts does the instrument support?
A: The tester offers comprehensive core count and fiber mode compatibility:
- Supported Core Counts: 12-core, 16-core, 24-core, 32-core, 48-core, and custom core arrangements.
- Supported Fiber Types: Single-mode SM (9/125 μm) and multimode MM (50/125 μm / 62.5/125 μm).
Q4: Who manufactures the FF-8204 MPO Polarity Instrument and what is its reference price?
A: Manufactured by FirstFiber Technologies, the FF-8204 MPO Polarity Instrument carries a reference price of $5,000 USD.
Q5: How can I place a volume inquiry or request a product demonstration?
A: You can click “Add to Quote” on the product page to submit your inquiry for volume pricing, or select “Request a Demo” to arrange a product evaluation.
