Description
FF-3306B Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffice is present,the intermittently audible tone is activated.

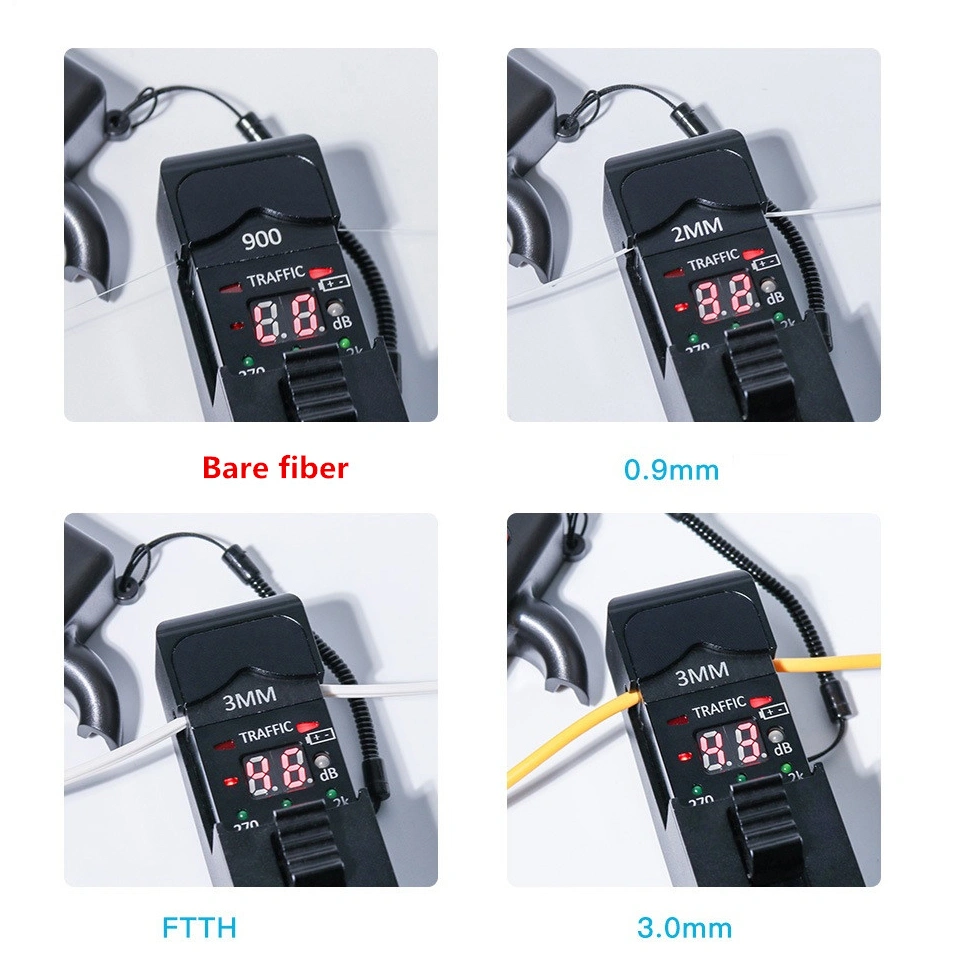

The FF-3306B optical fiber identifier alsor recogize the modnulation like,270Hz,1kHz and 2kHz .When they are used to detect the frequency, the continuously audible tone is activated.There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.
Features
– Easy-to-use with “ONE KEY” operation.
– Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
– Displays the relative core power
– More accurate test with Sunshade
– Easy-to-replace adaptors
– Durable metal housing and quality construction
– Lower power indication
Specifications
| Type | FF-3306B | |
| Identified Wavelength Range | 800-1700 nm | |
| Identified Signal Type | CW, 270Hz±5%，1kHz±5%，2kHz±5% | |
| Detector Type | Ø1mm InGaAs 2pcs | |
| Adapter Type | Ø0.25 (Applicable for Bare Fiber)，Ø0.9 (Applicable for Ø0.9 Cable ) | |
| Ø2.0 (Applicable for Ø2.0 Cable ), Ø3.0 (Applicable for Ø3.0 Cable ) | ||
| Signal Direction | Left & Right LED | |
| Singe Direction Test Range(dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
| -50~10(1550nm) | ||
| Signal Power Test Range(dBm, CW/0.9mm bare fiber) | -50~+10 | |
| Signal Frequency Display (Hz) | 270, 1k, 2k | |
| Frequency Test Range(dBm, Average Value) | Ø0.9, Ø2.0, Ø3.0 | -30~0 (270Hz,1KHz) |
| -25~0 (2KHz) | ||
| Ø0.25 | -25~0 (1KHz,2KHz) | |
| -20~0 (2KHz) | ||
| Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
| 2.5 (1550nm) | ||
| Alkaline Battry(V) | 9 | |
| Operating Temperature(℃) | -10－+60 | |
| Storage Temperature(℃) | -25－+70 | |
| Dimension (mm) | 196X30.5X27 | |
| Weight (g) | 200 | |
Standard Packages
| MODEL | INCLUDES |
| FF-3306B | FF-3306B Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. |
FAQ
Q1: What are the primary functions of the FF-3306B Optical Fiber Identifier?
A: The FF-3306B identifies the direction of transmitted optical signals and displays relative core power without damaging the bent fiber. It detects signal traffic and recognizes modulation frequencies (270Hz, 1kHz, 2kHz), using audible tones to warn operators during live testing.
Q2: What fiber diameters and adapter types are supported?
A: The FF-3306B includes four interchangeable adapter heads to fit various cable sizes:
- Ø0.25: Applicable for bare fiber
- Ø0.9: Applicable for Ø0.9mm loose buffer cable
- Ø2.0: Applicable for Ø2.0mm indoor cable
- Ø3.0: Applicable for Ø3.0mm indoor cable
Q3: What are the key technical and optical specifications?
A: Key optical specifications include:
- Wavelength Range: 800–1700 nm
- Detector Type: 2 pcs Ø1mm InGaAs
- Signal Power Test Range: -50 to +10 dBm
- Typical Insertion Loss: 0.8 dB at 1310nm and 2.5 dB at 1550nm
- Operating Temperature: -10°C to +60°C
Q4: What are the dimensions, power requirements, and standard package items?
A: Details regarding build and included accessories include:
- Dimensions & Weight: 196 × 30.5 × 27 mm, weighing 200g
- Power Supply: 9V Alkaline battery
- Standard Package: FF-3306B unit, 4 adapter heads, sunshade for light-sensitive testing, 9V battery, user manual, cleaning cotton sticks, and a soft carrying case
Q5: What is the reference price, and how can I request pricing or a demo?
A: The reference price for the FF-3306B is $95. You can submit an inquiry by clicking Add to Quote or Request a Demo on the product page.
