FOSCMF6 Dome Type Mechanical Sealing Fiber Optic Splice Closure

$25

★★★★★

* Ref. Price

Capacity:

Description

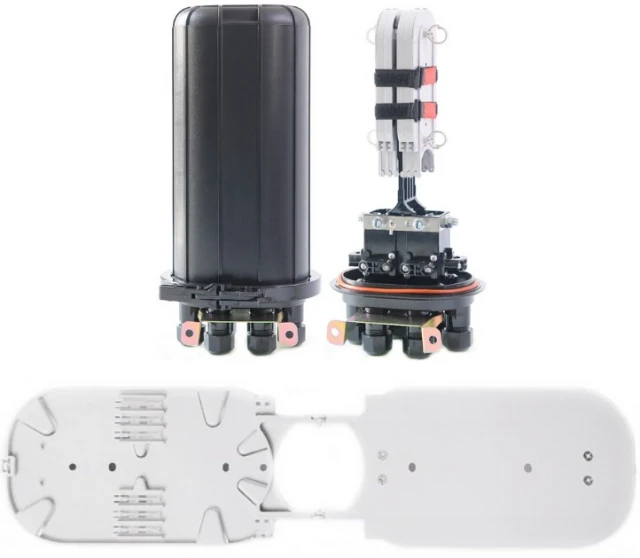

FOSCMF6 Dome Type Mechanical Sealing Fiber Optic Splice Closure (FOSC) is mechanical sealing.

Specification:

Model	FOSCMF6
Type	Dome type
Sealing Structure	Mechanical
Number of Inlet/Outlet ports	6 ports
Cable Diameter	4 ports×16mm, 2 ports×21mm
Maximum Capacity	Bunchy: 240 fibers;Ribbon: 576 fibers
Capacity per Splice Tray	Bunchy: single layer:12 fibers; dual layers: 24 fibers;Ribbon: standard: 6pcs
Quantity of Splice Tray	10pcs
Body Material	PC
Sealing Material	Thermoplastic rubber
Assembling method	Aerial, direct buried, pipelined, wall mounting, manhole
Dimension	455(H)×220(D)mm
Net Weight	3.3~4.2KG
Temperature	-40℃~65℃

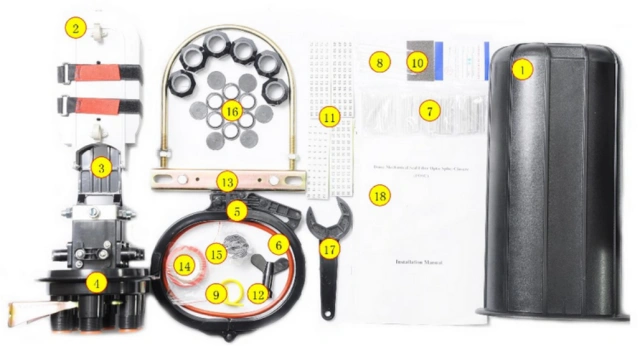

Main Components:

Item	Name	Usage	Quantity
1	Housing (Cover)	To protect splices of fiber optic cables	1pc
2	Splice Tray	To fix Fiber Splice Protective Sleeves	Max. 10pcs
3	Fiber Holding Tray	To store loose tube fibers	1pc
4	Housing (Base)	To fix internal and external structure	1pc
5	Plastic Hoop	To fix Housing Cover and Base	1pc
6	Sealing Grommet	To seal Cover and Base	1 set

Standard Accessories:

Item	Name	Usage	Quantity
7	Fiber Splice Protective Sleeves	To protect fiber splices	Same as capacity
8	Nylon Tie	To fix buffer tubes with fibers inside	8pcs
9	Grounding Wire	To connect with grounding device	1pc
10	Abrasive Cloth	To polish fiber optic cable	1pc
11	Labelling Paper	To label fibers	1 set
12	M10 Wrench	To screw nuts for strength member	1pc
13	Hanging Hoop	To install on wall and pole	1 set
14	Insulation Tape	To enlarge cable diameter for fixation	1 roll
15	Sealing Tape	To enlarge cable diameter for sealing grommet	1 roll
16	Sealing Rings for Ports	To seal cable ports	6pcs
17	Wrench	To tighten nuts of cable ports	1pc
18	User Manual	To instruct installation	1pc

Optional Accessories:

Item	Name	Usage	Quantity
1	Valve	To perform pressure and sealing testing	1pc
2	Grounding Device	To derive metallic components of fiber cable	1 set
3	Buffer Tube	To protect fibers and be fixed on splice trays	specified
4	Desiccant	To desiccate air in FOSC after sealing	1 bag
