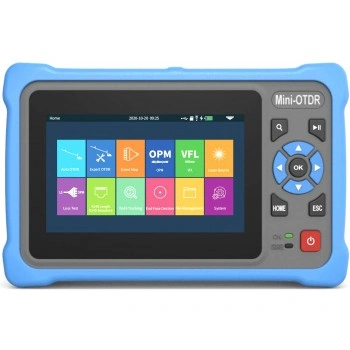

12 in 1 Enhanced OTDR
12-in-1 Enhanced mini pro OTDR
1) Auto OTDR

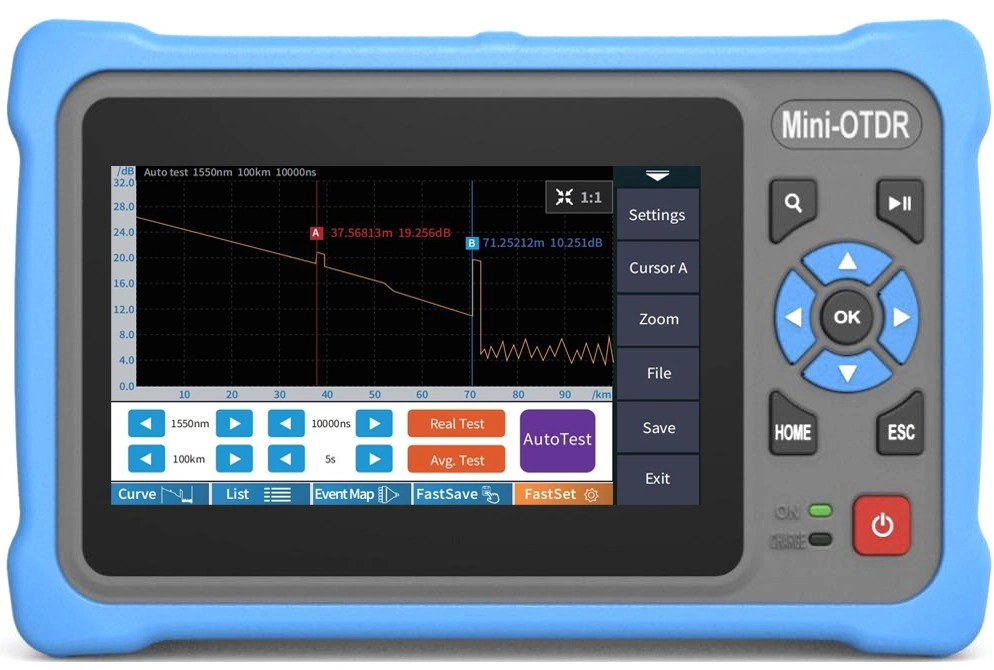

2) Expert OTDR

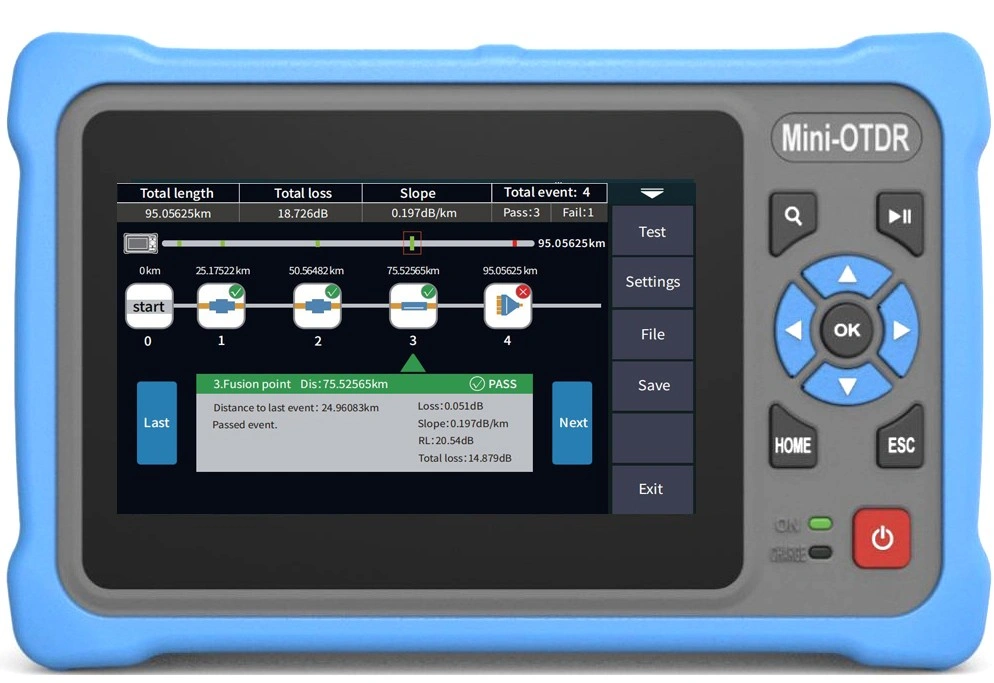

3) Event Map

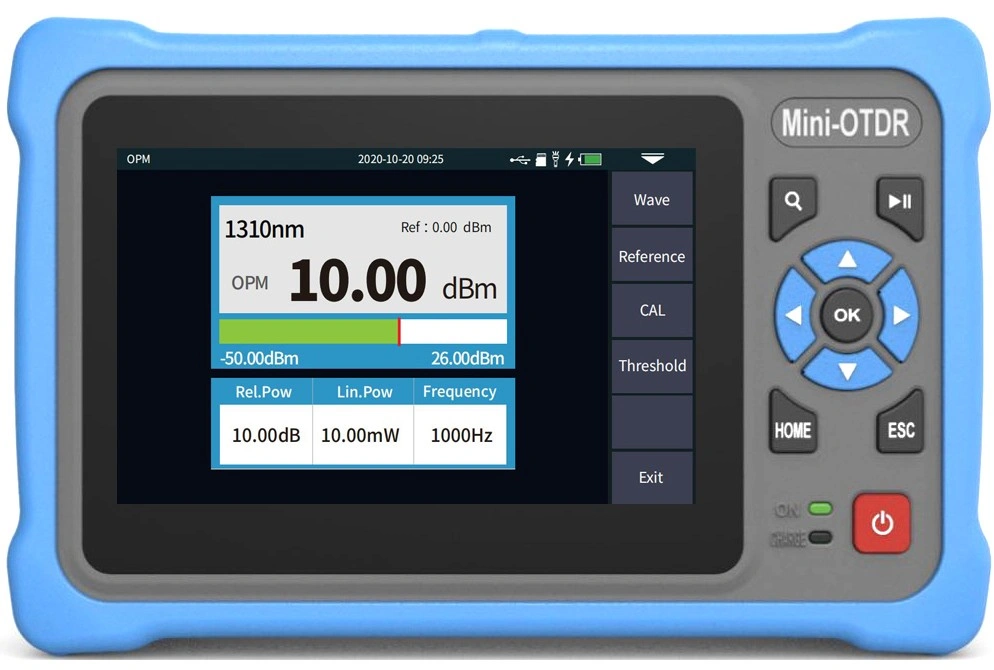

4) Optical Power Meter
5) Optical Light Source
6) Insertion Loss
7) Visual Fault Locator
8) Rj45 Cable Tracking

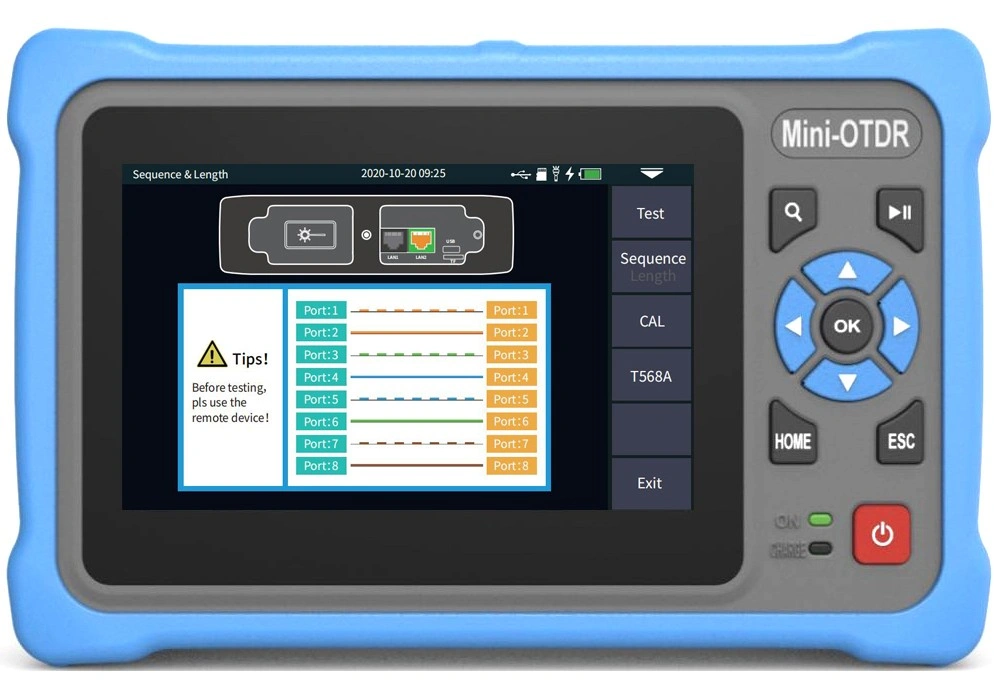

9) Rj45 Cable Sequence
10) Rj45 Cable Length
11) Endface Inspector
12) LED Light
Features
1) Useful light-weight OTDR
2) Combines all essential fiber tests in one handheld with OPM, OLS, VFL, etc
3) Easy to understand OTDR analysis with event list
4) PON network verification or troubleshooting
5) Upgrades easily in the field
6) All-day battery life
| Model# | 980MAS-S0 | 980MAS-S1 | 980MAS-S2 | 980MAS-P1 | 980MAS-P2 |
| Wavelength | 1550nm | 1310nm & 1550nm | 1310nm & 1550nm | 1310nm | 1610nm |
| Dynamic Range | 24dB | 24/22dB | 26/24dB | 26dB | 22dB |
| Testing Range | 3m to 80km | 3m to 80km | 3m to 100km | 3m to 100km | 3m to 60km |
| OTDR | √ | √ | √ | √ | √ |
| Power Meter | √ | √ | √ | √ | √ |
| Light Source | √ | √ | √ | √ | √ |
| Visual Fault Locator | √ | √ | √ | √ | √ |
| Insertion Loss Testing | √ | √ | √ | √ | √ |
| Event Map | √ | √ | √ | √ | √ |
| RJ45 Sequence | √ | √ | √ | √ | √ |
| RJ45 Length | √ | √ | √ | √ | √ |
| Rj45 Digital Tracker | √ | √ | √ | √ | √ |
| In-service Testing | x | x | x | √ | √ |
980MAS-P1 & 980MAS-P2 are both with Wavelength Filter.
In-service signal power <-5dBm @ 980MAS-P1, <0dBm@980MAS-P2
The Menu Languages
– English
– Russian
– Korean
– French
– Spanish
– Vietnam
The kit includes,
– OTDR
– FC/SC Connector
– User Manual
– PC Software
– Charging Adapter
– RJ45 Cable Tracker
– RJ45 Remote Unit
– USB Cable
– Carrying Bag
– Certificate of Calibrate
Download
Customization
FirstFiber Technologies offers two types of customization services for you to choose from, Light Customization and Deep Customization. You can refer to the details here.
If you would like a Light Customization based on the 980MAS OTDR, please provide requirements according to the instructions below. If you prefer a Deep Customization, please contact our sales team to discuss the details.
| Instructions | |
| Model Number | Max 8 characters, no special characters allowed. |
| Logo | High Resolution. (.jpg, .bmp, .psd, .cdr, etc) |
| Boot Screen | 800×480 px, format .bmp, and color depth 16-bit |
| Language | Please contact sales to request the English version of the field list. |
Light customization (Model, LOGO, and Language) are 100% FREE OF CHARGE, but MoQ 20
Packaging & Shipping
Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| 980MAS | 10 | 9.5 KG | 11.5 KG | 53x23x26cm |
Non-Standard Packaging
| Model | Qty/Carton | Net Weight | Gross Weight | Size |
| 980MAS | 1 | 0.95 KG | 1.3 KG | 23x13x16cm |
At FirstFiber Technologies, all test instruments are dispatched via DHL Air Express, reaching global destinations within 3 to 7 days. Please note that the downloadable shipping price list is for reference only. For precise shipping costs, please refer to the final quote provided by your sales representative.
