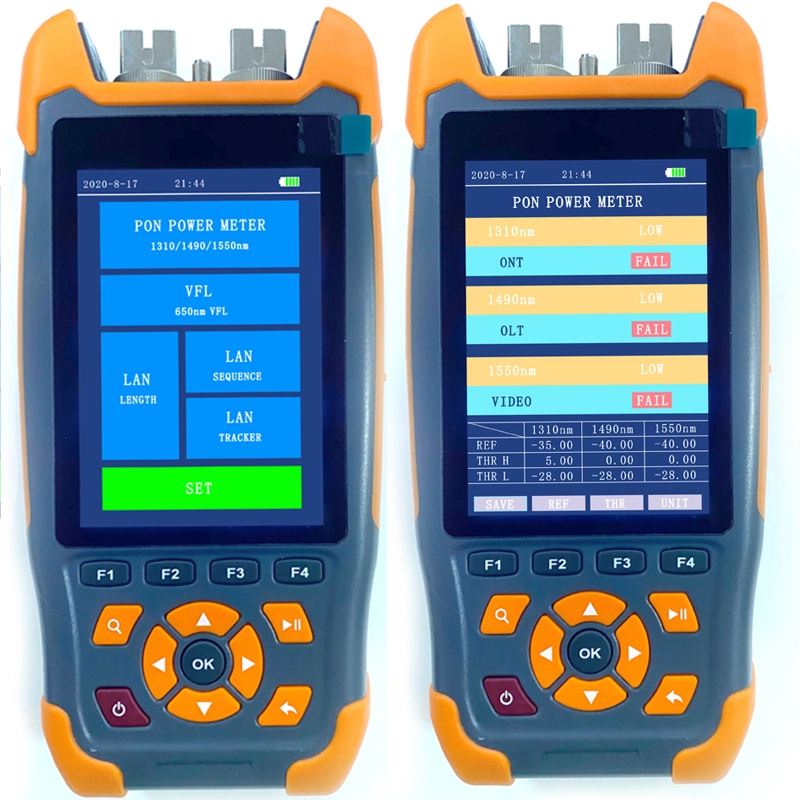

FF-3214 Optical PON Power Meter

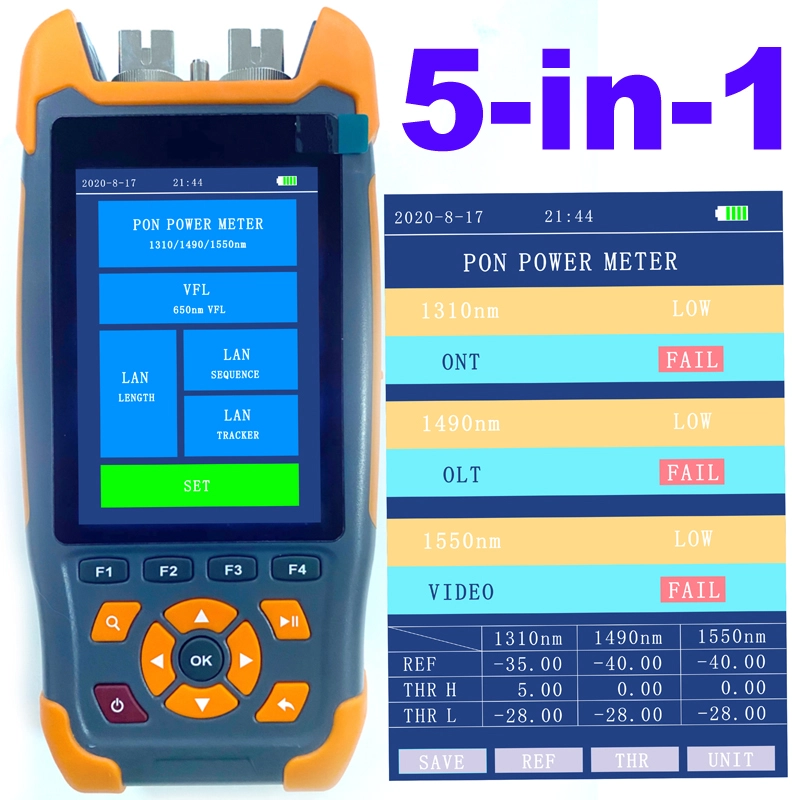

Testing live BPON, GPON, and EPON links during active subscriber turn-up requires non-intrusive pass-through power measurement. Connected directly between the OLT and ONT, the FF-3214 simultaneously measures and displays upstream voice/data signals at 1310 nm alongside downstream data at 1490 nm and video at 1550 nm. Optical channel isolation exceeds 40 dB across all three pass bands, preventing wavelength crosstalk and ensuring accurate power readings. Crucially, the unit captures 1310 nm upstream burst-mode transmissions from ONTs without losing synchronization. With a pass-through insertion loss under 1.5 dB, engineers perform live audits without disrupting active customer sessions.

Standardizing quality control across third-party contractors can be challenging, but the FF-3214 has streamlined our site acceptance procedures. The device allows us to configure and store up to 10 distinct threshold sets via the PC management software. Technicians receive instant pass, warning, or fail evaluations directly on the true-color LCD screen, taking the guesswork out of link margin verification. The onboard memory stores threshold evaluations for audit trail compliance, while user-definable relative power modes make localized insertion loss measurements straightforward.

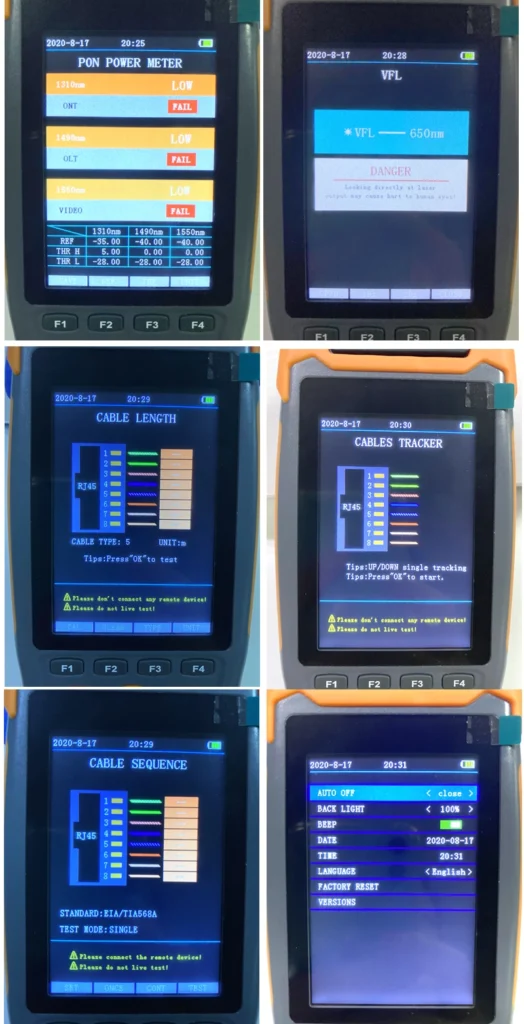

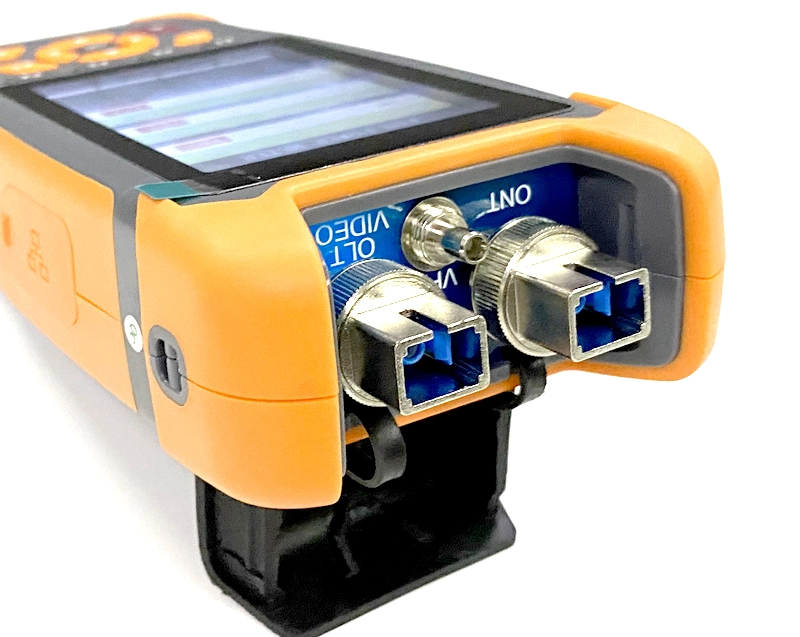

Replacing single-function meters with the FF-3214 has noticeably reduced tool belt weight for our field technicians. In addition to its primary PON power meter capabilities, the unit integrates a 650 nm Visual Fault Locator alongside RJ45 cable distance, sequence, and active wire tracking functions. The built-in 6600 mAh lithium battery provides extended operating runtime for full shifts in remote locations, supported by an intelligent low-voltage auto-shutdown feature to prevent sudden power loss. Supported by universal SC/APC and FC/APC connectors, it is an essential, highly versatile instrument for outside plant maintenance.
